DUC122
DUC122

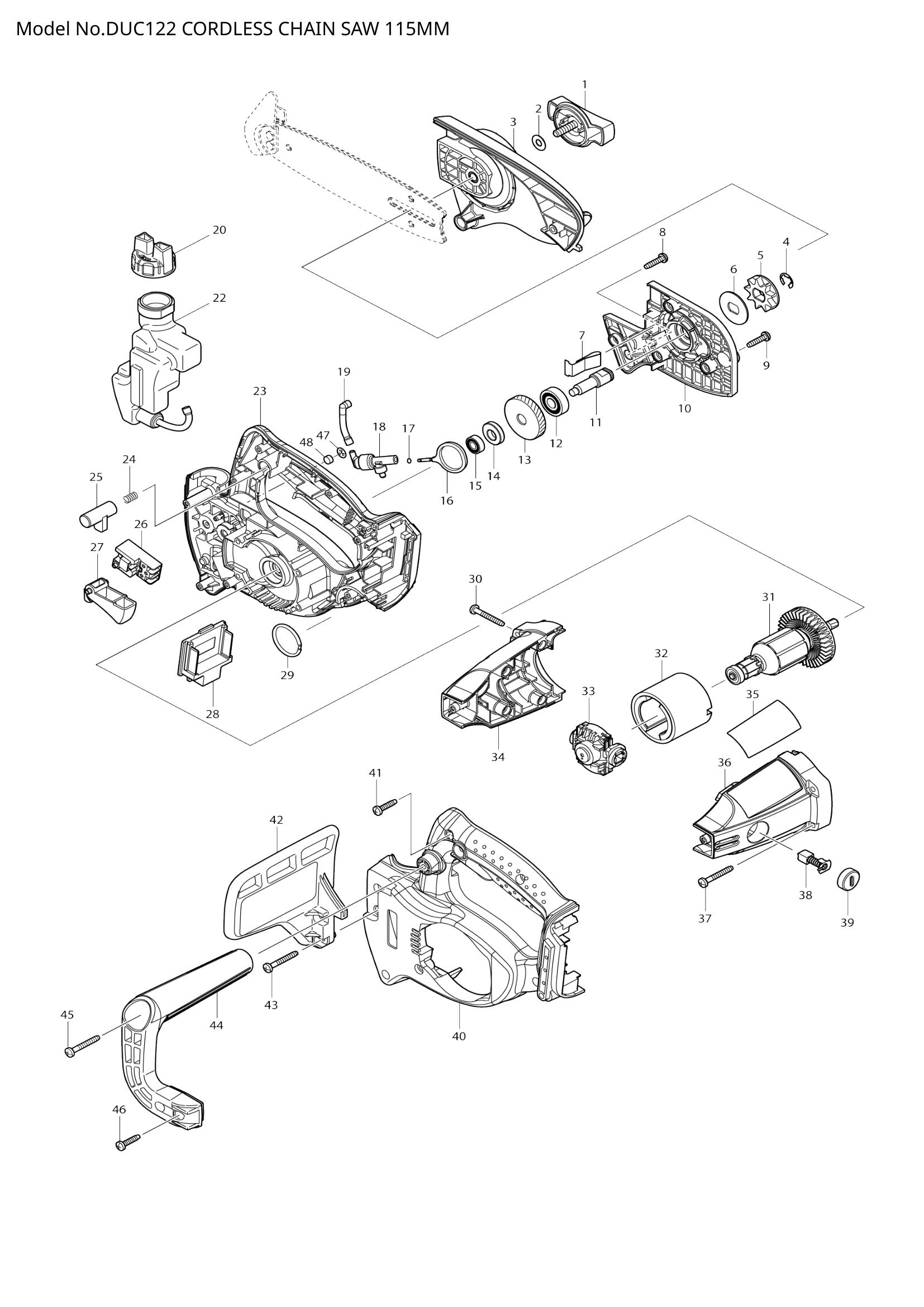

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 158472-4 | KNOB 60 COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 002 | 267004-7 | FLAT WASHER 6 | 1 | €2.78 | 1-4 weeks to ship | |
| 003 | 158471-6 | SPROCKET COVER COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 004 | 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 221527-9 | SPROCKET 9 | 1 | €2.78 | 1-4 weeks to ship | |
| 007 | 232238-1 | LEAF SPRING | 1 | €5.57 | 1-4 weeks to ship | |
| 008 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 010 | 450213-7 | BEARING HOUSING | 1 | €16.70 | 1-4 weeks to ship | |
| 011 | 323806-2 | SPINDLE | 1 | €16.70 | 1-4 weeks to ship | |
| 012 | 211051-0 | BALL BEARING 609LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 013 | 226673-3 | HELICAL GEAR 50 | 1 | €5.57 | 1-4 weeks to ship | |
| 014 | 450436-7 | CAM | 1 | €2.78 | 1-4 weeks to ship | |
| 015 | 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 016 | 450435-9 | CRANK | 1 | €8.35 | 1-4 weeks to ship | |
| 017 | 213993-4 | O-RING 1.5 | 1 | €0.83 | 1-4 weeks to ship | |
| 018 | 158571-2 | OIL PUMP COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 019 | 421615-4 | CONNECTOR | 1 | €0.83 | 1-4 weeks to ship | |
| 022 | 158634-4 | OIL TANK COMPLETE | 1 | €25.05 | 1-4 weeks to ship | |
| 024 | 231470-4 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 651956-6 | SWITCH TG72BD | 1 | €13.92 | 1-4 weeks to ship | |
| 027 | 450212-9 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 029 | RING 30 | 1 | Not available in store | |||
| 030 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 031 | 619225-1 | ARMATURE | 1 | €36.18 | 1-4 weeks to ship | |
| 032 | 638138-7 | YOKE UNIT | 1 | €8.35 | 1-4 weeks to ship | |
| 638138-7 | YOKE UNIT | 1 | €8.35 | 1-4 weeks to ship | ||
| 033 | 638608-6 | ENDBELL COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 034 | 188468-1 | MOTOR HOUSING SET | 1 | €16.70 | 1-4 weeks to ship | |
| 035 | DUC122 NAME PLATE | 1 | Not available in store | |||
| 036 | 188468-1 | MOTOR HOUSING SET | 1 | €16.70 | 1-4 weeks to ship | |
| 037 | 266050-7 | TAPPING SCREW 4X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 038 | 191971-3 | CARBON BRUSH CB-430 | 1 | €2.78 | 1-4 weeks to ship | |
| 039 | 643954-4 | BRUSH HOLDER CAP | 2 | €0.83 | 1-4 weeks to ship | |
| 041 | 265995-6 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 042 | 158474-0 | FRONT HAND GUARD COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 043 | 266050-7 | TAPPING SCREW 4X30 | 2 | €0.56 | 1-4 weeks to ship | |
| 044 | 450217-9 | FRONT HANDLE | 1 | €5.57 | 1-4 weeks to ship | |
| 045 | 266050-7 | TAPPING SCREW 4X30 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 047 | 259041-5 | PUSH NUT 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 443125-1 | FILTER | 1 | €0.56 | 1-4 weeks to ship | |
