5705R
5705R

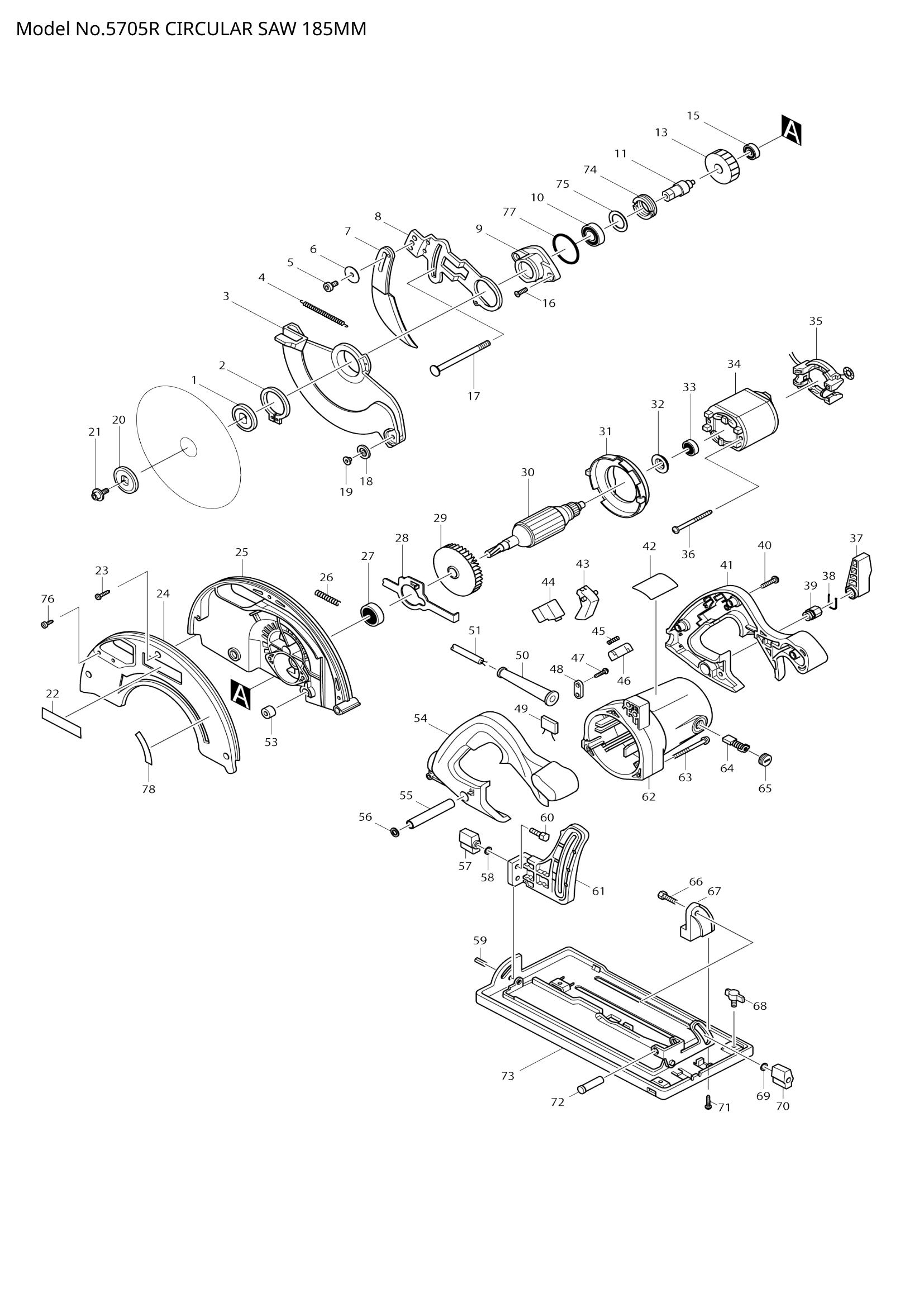

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 224339-9 | INNER FLANGE 40 | 1 | €5.57 | 1-4 weeks to ship | |
| 002 | 961156-3 | RETAINING RING S-40 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 231827-9 | TENSION SPRING 4 | 1 | €0.83 | 1-4 weeks to ship | |
| 005 | 922312-0 | HEX. SOCKET HEAD BOLT M6X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 253783-3 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 317469-4 | BEARING BOX | 1 | €13.92 | 1-4 weeks to ship | |
| 011 | 322922-7 | SPINDLE | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | 226473-1 | HELICAL GEAR 41 | 1 | €16.70 | 1-4 weeks to ship | |
| 015 | 211034-0 | BALL BEARING 608 | 1 | €4.17 | 1-4 weeks to ship | |
| 017 | 266019-1 | CAP SQUARE NECK BOLT M8X98 | 1 | €1.67 | 1-4 weeks to ship | |
| 018 | 415438-0 | ROLLER 20 | 2 | €0.56 | 1-4 weeks to ship | |
| 019 | 415437-2 | ROLLER PIN 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 020 | 224338-1 | OUTER FLANGE 40 | 1 | €8.35 | 1-4 weeks to ship | |
| 021 | 266139-1 | HEX. SOCKET HEAD BOLT M6X16 | 1 | €0.83 | 1-4 weeks to ship | |
| 023 | 266042-6 | TAPPING SCREW BIND CT 4X20 | 3 | €0.56 | 1-4 weeks to ship | |
| 026 | 233092-6 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 028 | 344114-8 | SHAFT LOCK | 1 | €4.17 | 1-4 weeks to ship | |
| 029 | 241876-8 | FAN 76 | 1 | €4.17 | 1-4 weeks to ship | |
| 030 | 516418-0 | ARMATURE ASS'Y 220V | 1 | €86.27 | 1-4 weeks to ship | |
| 031 | 415460-7 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 032 | 681625-5 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 034 | 634373-5 | FIELD 220V | 1 | €45.92 | 1-4 weeks to ship | |
| 036 | 266029-8 | TAPPING SCREW 5X65 | 2 | €1.39 | 1-4 weeks to ship | |
| 037 | 272230-5 | LEVER 54 | 1 | €0.83 | 1-4 weeks to ship | |
| 038 | 231955-0 | RING SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 252141-0 | HEX. NUT M8 | 1 | €4.17 | 1-4 weeks to ship | |
| 040 | 266041-8 | TAPPING SCREW 5X25 | 5 | €0.56 | 1-4 weeks to ship | |
| 041 | 182675-8 | HANDLE SET | 1 | €16.70 | 1-4 weeks to ship | |
| 042 | NAME PLATE 5705R | 1 | Not available in store | |||
| 043 | 415439-8 | SWITCH LEVER | 1 | €1.67 | 1-4 weeks to ship | |
| 044 | 651922-3 | SWITCH TG71B | 1 | €11.13 | 1-4 weeks to ship | |
| 045 | 231230-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 415440-3 | LOCK-OFF BUTTON | 1 | €1.11 | 1-4 weeks to ship | |
| 047 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 050 | 682540-6 | CORD GUARD 9.3-90 | 1 | €1.39 | 1-4 weeks to ship | |
| 051 | 665865-3 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €16.70 | 1-4 weeks to ship | |
| 053 | 262511-5 | RUBBER SLEEVE 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | 182675-8 | HANDLE SET | 1 | €16.70 | 1-4 weeks to ship | |
| 055 | 331432-3 | PIPE 9 | 1 | €1.67 | 1-4 weeks to ship | |
| 056 | 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 057 | 252624-0 | WING NUT M6 | 1 | €1.67 | 1-4 weeks to ship | |
| 058 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 059 | 951204-6 | SPRING PIN 6-16 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 921332-1 | HEX. BOLT M6X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | 316578-6 | DEPTH GUIDE | 1 | €13.92 | 1-4 weeks to ship | |
| 062 | 159714-9 | MOTOR HOUSING COMPLETE | 1 | €27.83 | 1-4 weeks to ship | |
| 063 | 911278-9 | PAN HEAD SCREW M5X55 | 3 | €0.56 | 1-4 weeks to ship | |
| 065 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | €0.56 | 1-4 weeks to ship | |
| 066 | 921332-1 | HEX. BOLT M6X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 415443-7 | ANGULAR PLATE GUIDE | 1 | €2.78 | 1-4 weeks to ship | |
| 068 | 265725-5 | WING BOLT M6X10 | 1 | €1.39 | 1-4 weeks to ship | |
| 069 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 070 | 252624-0 | WING NUT M6 | 1 | €1.67 | 1-4 weeks to ship | |
| 071 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 072 | 256690-9 | PIN 10 | 1 | €2.78 | 1-4 weeks to ship | |
| 074 | 285831-0 | BEARING RETAINER 19-34 | 1 | €5.57 | 1-4 weeks to ship | |
| 075 | 267126-3 | FLAT WASHER 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 076 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 077 | 213560-5 | O RING 44 | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | INDICATION LABEL | 1 | Not available in store | |||
