DUB363
DUB363

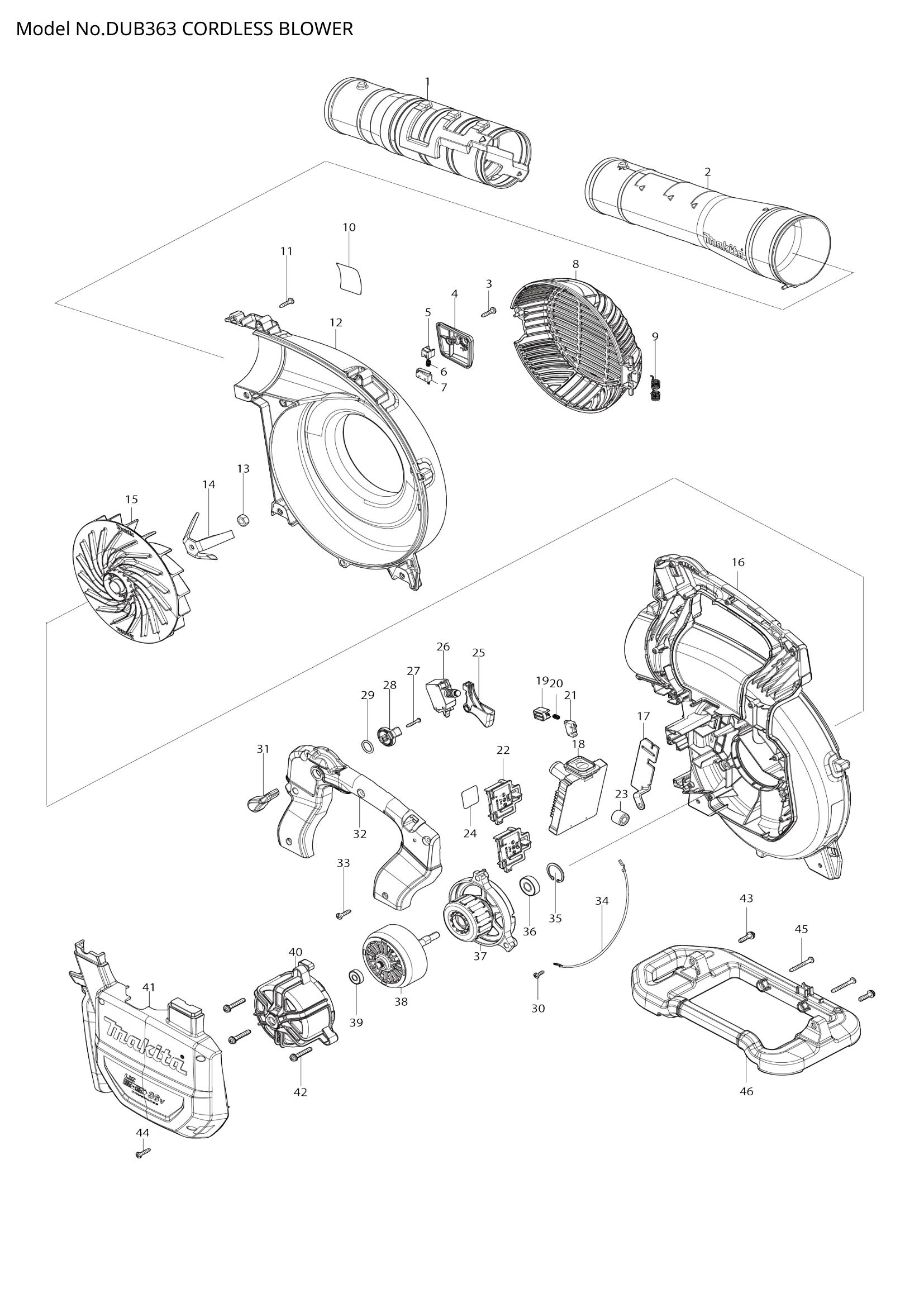

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 003 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 004 | SWITCH COVER | 1 | Not available in store | |||
| SWITCH COVER | 1 | Not available in store | ||||
| 005 | PUSHER A | 1 | Not available in store | |||
| PUSHER A | 1 | Not available in store | ||||
| 006 | 233118-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 233118-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 007 | 632L94-5 | SWITCH UNIT | 1 | €15.17 | 1-4 weeks to ship | |
| 632L94-5 | SWITCH UNIT | 1 | €15.17 | 1-4 weeks to ship | ||
| 008 | FAN COVER ASSEMBLY | 1 | Not available in store | |||
| FAN COVER ASSEMBLY | 1 | Not available in store | ||||
| 009 | TORSION SPRING 8 | 1 | Not available in store | |||
| TORSION SPRING 8 | 1 | Not available in store | ||||
| 010 | DUB363 NAME PLATE | 1 | Not available in store | |||
| DUB363 NAME PLATE | 1 | Not available in store | ||||
| 011 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | ||
| 012 | VOLUTE CASE R | 1 | Not available in store | |||
| VOLUTE CASE R | 1 | Not available in store | ||||
| 013 | 252154-1 | HEX. NUT M8-13 | 1 | €0.56 | 1-4 weeks to ship | |
| 252154-1 | HEX. NUT M8-13 | 1 | €0.56 | 1-4 weeks to ship | ||
| 014 | SHREDDER | 1 | Not available in store | |||
| SHREDDER | 1 | Not available in store | ||||
| 015 | FAN 180 | 1 | Not available in store | |||
| FAN 180 | 1 | Not available in store | ||||
| 017 | EARTH PLATE | 1 | Not available in store | |||
| EARTH PLATE | 1 | Not available in store | ||||
| 018 | CONTROLLER COMPLETE | 1 | Not available in store | |||
| CONTROLLER COMPLETE | 1 | Not available in store | ||||
| 019 | PUSHER B | 1 | Not available in store | |||
| PUSHER B | 1 | Not available in store | ||||
| 020 | 233118-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 233118-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 021 | 632L94-5 | SWITCH UNIT | 1 | €15.17 | 1-4 weeks to ship | |
| 632L94-5 | SWITCH UNIT | 1 | €15.17 | 1-4 weeks to ship | ||
| 022 | 644809-6 | TERMINAL | 2 | €3.76 | 1-4 weeks to ship | |
| 644809-6 | TERMINAL | 2 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 2 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 2 | €3.76 | 1-4 weeks to ship | ||
| 023 | 688163-8 | LINE FILTER | 1 | €0.83 | 1-4 weeks to ship | |
| 688163-8 | LINE FILTER | 1 | €0.83 | 1-4 weeks to ship | ||
| 024 | DUB363 SERIAL NO. LABEL | 1 | Not available in store | |||
| DUB363 SERIAL NO. LABEL | 1 | Not available in store | ||||
| 025 | SWITCH LEVER | 1 | Not available in store | |||
| SWITCH LEVER | 1 | Not available in store | ||||
| 026 | SWITCH C3JW-6B-PAN | 1 | Not available in store | |||
| SWITCH C3JW-6B-PAN | 1 | Not available in store | ||||
| 027 | 266127-8 | + TAPPING SCREW PT 3X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 266127-8 | + TAPPING SCREW PT 3X20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 028 | LINK | 1 | Not available in store | |||
| LINK | 1 | Not available in store | ||||
| 029 | 213154-6 | O RING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 213154-6 | O RING 14 | 1 | €0.56 | 1-4 weeks to ship | ||
| 030 | 652008-6 | PAN HEAD SCREW M3.5X7 | 1 | €0.83 | 1-4 weeks to ship | |
| 652008-6 | PAN HEAD SCREW M3.5X7 | 1 | €0.83 | 1-4 weeks to ship | ||
| 031 | CONTROL LEVER | 1 | Not available in store | |||
| CONTROL LEVER | 1 | Not available in store | ||||
| 032 | GRIP L | 1 | Not available in store | |||
| GRIP L | 1 | Not available in store | ||||
| 033 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | ||
| 034 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
| 035 | 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | |
| 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | ||
| 036 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 037 | STATOR COMPLETE | 1 | Not available in store | |||
| STATOR COMPLETE | 1 | Not available in store | ||||
| 038 | ROTOR | 1 | Not available in store | |||
| ROTOR | 1 | Not available in store | ||||
| 039 | 210017-7 | BALL BEARING 607DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 210017-7 | BALL BEARING 607DDW | 1 | €2.78 | 1-4 weeks to ship | ||
| 040 | MOTOR HOUSING | 1 | Not available in store | |||
| MOTOR HOUSING | 1 | Not available in store | ||||
| 041 | MOTOR COVER COMPLETE | 1 | Not available in store | |||
| MOTOR COVER COMPLETE | 1 | Not available in store | ||||
| 042 | 911253-5 | PAN HEAD SCREW M5X30 | 3 | €0.56 | 1-4 weeks to ship | |
| 911253-5 | PAN HEAD SCREW M5X30 | 3 | €0.56 | 1-4 weeks to ship | ||
| 043 | 911233-1 | PAN HEAD SCREW M5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 911233-1 | PAN HEAD SCREW M5X20 | 2 | €0.56 | 1-4 weeks to ship | ||
| 044 | 266326-2 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | ||
| 045 | 266351-3 | TAPPING SCREW 4X35 | 2 | €0.56 | 1-4 weeks to ship | |
| 266351-3 | TAPPING SCREW 4X35 | 2 | €0.56 | 1-4 weeks to ship | ||
| 049 | BENT PIPE 90 ASSMBLY | 1 | Not available in store | |||
| BENT PIPE 90 ASSMBLY | 1 | Not available in store | ||||
| 051 | BAND 30 COMPLETE | 1 | Not available in store | |||
| BAND 30 COMPLETE | 1 | Not available in store | ||||
