5704R
5704R

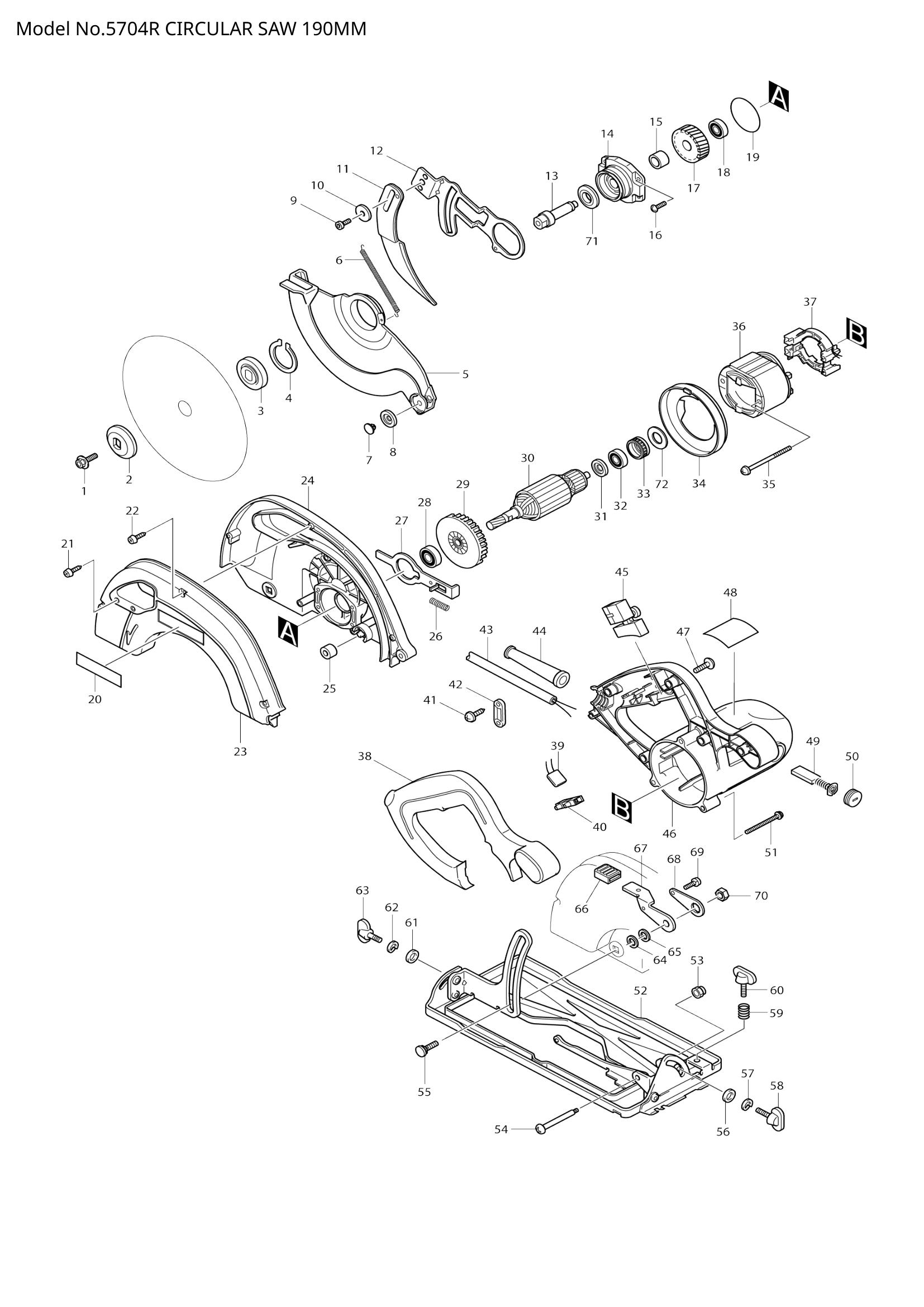

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266024-8 | HEX. SOCKET HEAD BOLT M6X20 | 1 | €1.39 | 1-4 weeks to ship | |
| 002 | 224275-9 | OUTER FLANGE 40 | 1 | €2.78 | 1-4 weeks to ship | |
| 003 | 224370-5 | INNER FLANGE 40 | 1 | €2.78 | 1-4 weeks to ship | |
| 004 | 961156-3 | RETAINING RING S-40 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 317461-0 | SAFETY COVER | 1 | €13.92 | 1-4 weeks to ship | |
| 007 | 415437-2 | ROLLER PIN 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 008 | 415438-0 | ROLLER 20 | 2 | €0.56 | 1-4 weeks to ship | |
| 009 | 922312-0 | HEX. SOCKET HEAD BOLT M6X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 253783-3 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 165094-3 | RIVING KNIFE | 1 | €11.13 | 1-4 weeks to ship | |
| 013 | 324110-2 | SPINDLE | 1 | €11.13 | 1-4 weeks to ship | |
| 014 | 162220-5 | BEARING BOX COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 015 | 257513-4 | SLEEVE 12 | 1 | €1.11 | 1-4 weeks to ship | |
| 016 | 911526-6 | P.H.SCREW M4X16 WITH WRM | 4 | €0.56 | 1-4 weeks to ship | |
| 911526-6 | P.H.SCREW M4X16 WITH WRM | 4 | €0.56 | 1-4 weeks to ship | ||
| 017 | 226540-2 | HELICAL GEAR 49 | 1 | €5.57 | 1-4 weeks to ship | |
| 018 | 211032-4 | BALL BEARING 608ZZ | 1 | €1.67 | 1-4 weeks to ship | |
| 019 | 213620-3 | O RING 46 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 022 | 266034-5 | TAPPING SCREW CT 4X16 | 3 | €0.56 | 1-4 weeks to ship | |
| 024 | 152810-2 | BLADE CASE COMPLETE | 1 | €25.05 | 1-4 weeks to ship | |
| 025 | 262511-5 | RUBBER SLEEVE 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 233092-6 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 344990-0 | SHAFT LOCK | 1 | €1.67 | 1-4 weeks to ship | |
| 028 | 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 029 | 241858-0 | FAN 70 | 1 | €5.57 | 1-4 weeks to ship | |
| 030 | 516489-7 | ARMATURE ASS'Y 220-240V | 1 | €41.75 | 1-4 weeks to ship | |
| 516489-7 | ARMATURE ASS'Y 220-240V | 1 | €41.75 | 1-4 weeks to ship | ||
| 031 | 681654-8 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 211032-4 | BALL BEARING 608ZZ | 1 | €1.67 | 1-4 weeks to ship | |
| 033 | 421720-7 | RUBBER RING 22 | 1 | €8.35 | 1-4 weeks to ship | |
| 034 | 417580-3 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 266044-2 | TAPPING SCREW 5X60 | 2 | €1.11 | 1-4 weeks to ship | |
| 036 | 634449-8 | FIELD 220-240V | 1 | €27.83 | 1-4 weeks to ship | |
| 634449-8 | FIELD 220-240V | 1 | €27.83 | 1-4 weeks to ship | ||
| 037 | 638070-5 | SUPPORT COMPLETE | 1 | €8.35 | 1-4 weeks to ship | |
| 038 | 417579-8 | HANDLE COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 040 | 654575-7 | TERMINAL BLOCK | 1 | €4.17 | 1-4 weeks to ship | |
| 041 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 043 | 665865-3 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €16.70 | 1-4 weeks to ship | |
| 044 | 682540-6 | CORD GUARD 9.3-90 | 1 | €1.39 | 1-4 weeks to ship | |
| 045 | 651291-2 | SWITCH SGES115C-5 | 1 | €8.35 | 1-4 weeks to ship | |
| 651291-2 | SWITCH SGES115C-5 | 1 | €8.35 | 1-4 weeks to ship | ||
| 046 | 152811-0 | MOTOR HOUSING COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 047 | 265995-6 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 048 | 853170-2 | NAME PLATE 5704R | 1 | €0.83 | 1-4 weeks to ship | |
| 050 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | €0.56 | 1-4 weeks to ship | |
| 051 | 911268-2 | PAN HEAD SCREW M5X45 | 3 | €0.56 | 1-4 weeks to ship | |
| 911268-2 | PAN HEAD SCREW M5X45 | 3 | €0.56 | 1-4 weeks to ship | ||
| 052 | 168353-4 | BASE | 1 | €16.70 | 1-4 weeks to ship | |
| 053 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | 265075-8 | + PAN HEAD SCREW M5 | 1 | €0.83 | 1-4 weeks to ship | |
| 055 | 265965-5 | CAP SQUARE NECK BOLT M8X24 | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 058 | 265701-9 | THUMB SCREW M6X14 | 1 | €1.67 | 1-4 weeks to ship | |
| 059 | 231316-4 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 265701-9 | THUMB SCREW M6X14 | 1 | €1.67 | 1-4 weeks to ship | |
| 061 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 063 | 265701-9 | THUMB SCREW M6X14 | 1 | €1.67 | 1-4 weeks to ship | |
| 064 | 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 065 | 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 066 | 421746-9 | RUBBER CAP | 1 | €0.70 | 1-4 weeks to ship | |
| 067 | 344989-5 | LEVER PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 068 | 341415-5 | LOCK PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 069 | 911108-4 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | |
| 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 071 | 257243-7 | RING 12 | 1 | €2.78 | 1-4 weeks to ship | |
| 072 | 261115-0 | RUBBER WASHER 13 | 1 | €1.11 | 1-4 weeks to ship |
