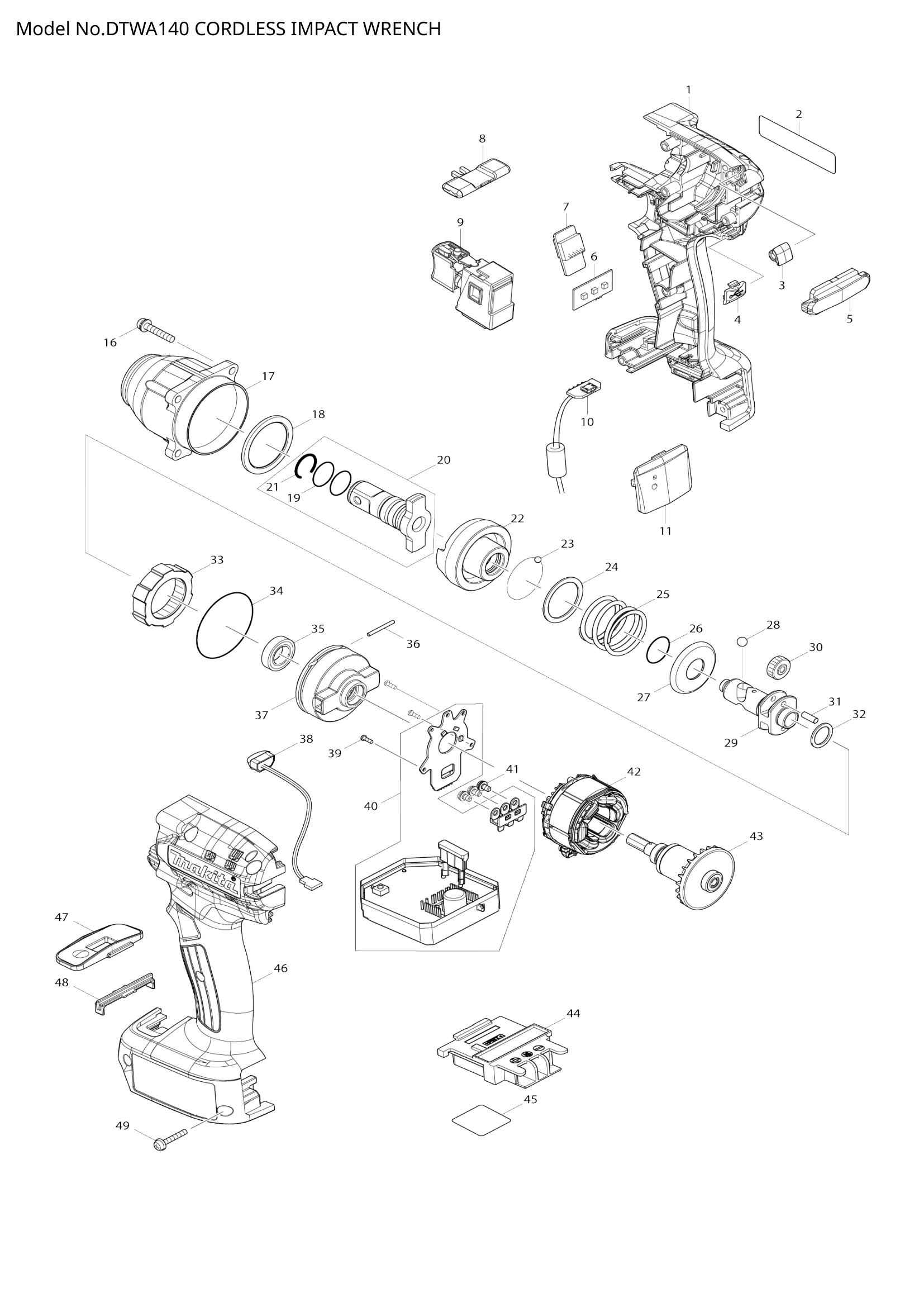

DTWA140
DTWA140
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | DTWA140 NAME PLATE | 1 | Not available in store | |||
| 003 | ID COVER BLACK | 1 | Not available in store | |||
| 004 | USB COVER COMPLETE | 1 | Not available in store | |||
| 005 | 457484-7 | LENS | 1 | €2.23 | 1-4 weeks to ship | |
| 006 | LED CIRCUIT | 1 | Not available in store | |||
| 007 | BUZZER CIRCUIT | 1 | Not available in store | |||
| 008 | 455053-8 | F/R CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | SWITCH COMPLETE | 1 | Not available in store | |||
| 010 | USB CIRCUIT | 1 | Not available in store | |||
| 011 | COVER | 1 | Not available in store | |||
| 016 | 265145-3 | + PAN HEAD SCREW M4X22 | 4 | €0.56 | 1-4 weeks to ship | |
| 017 | HAMMER CASE A COMPLETE | 1 | Not available in store | |||
| 018 | NYLON WASHER 30 | 1 | Not available in store | |||
| 019 | 213233-0 | O-RING 15 | 2 | €0.56 | 1-4 weeks to ship | |
| 020 | ANVIL E 12.7 ASSY | 1 | Not available in store | |||
| 021 | 231907-1 | RING SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | HAMMER E | 1 | Not available in store | |||
| 023 | 216001-0 | STEEL BALL 3.5 | 24 | €0.56 | 1-4 weeks to ship | |
| 024 | 267175-0 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | COMPRESSION SPRING 25 E | 1 | Not available in store | |||
| 026 | O-RING 14 | 1 | Not available in store | |||
| 027 | CUP WASHER 14 | 1 | Not available in store | |||
| 028 | 216011-7 | STEEL BALL 5.6 | 2 | €0.56 | 1-4 weeks to ship | |
| 029 | SPINDLE B | 1 | Not available in store | |||
| 030 | SPUR GEAR 16 | 2 | Not available in store | |||
| 031 | 256173-9 | PIN 3.5 | 2 | €2.09 | 1-4 weeks to ship | |
| 032 | 267104-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | INTERNAL GEAR 39 | 1 | Not available in store | |||
| 034 | 213561-3 | O RING 42 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 211136-2 | BALL BEARING 6801LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 036 | PIN 2 | 2 | Not available in store | |||
| 037 | INTERNAL GEAR CASE | 1 | Not available in store | |||
| 038 | 620521-2 | LED CIRCUIT | 1 | €6.68 | 1-4 weeks to ship | |
| 039 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 041 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 042 | STATOR | 1 | Not available in store | |||
| 043 | ROTOR | 1 | Not available in store | |||
| 044 | 643850-6 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 045 | DTWA140 SERIAL NO. LABEL | 1 | Not available in store | |||
| 047 | SWITCH PLATE BLACK COMPLET | 1 | Not available in store | |||
| 048 | STOPPER | 1 | Not available in store | |||
| 049 | PAN HEAD SCREW M3X20 | 7 | Not available in store | |||
