DTW450
DTW450

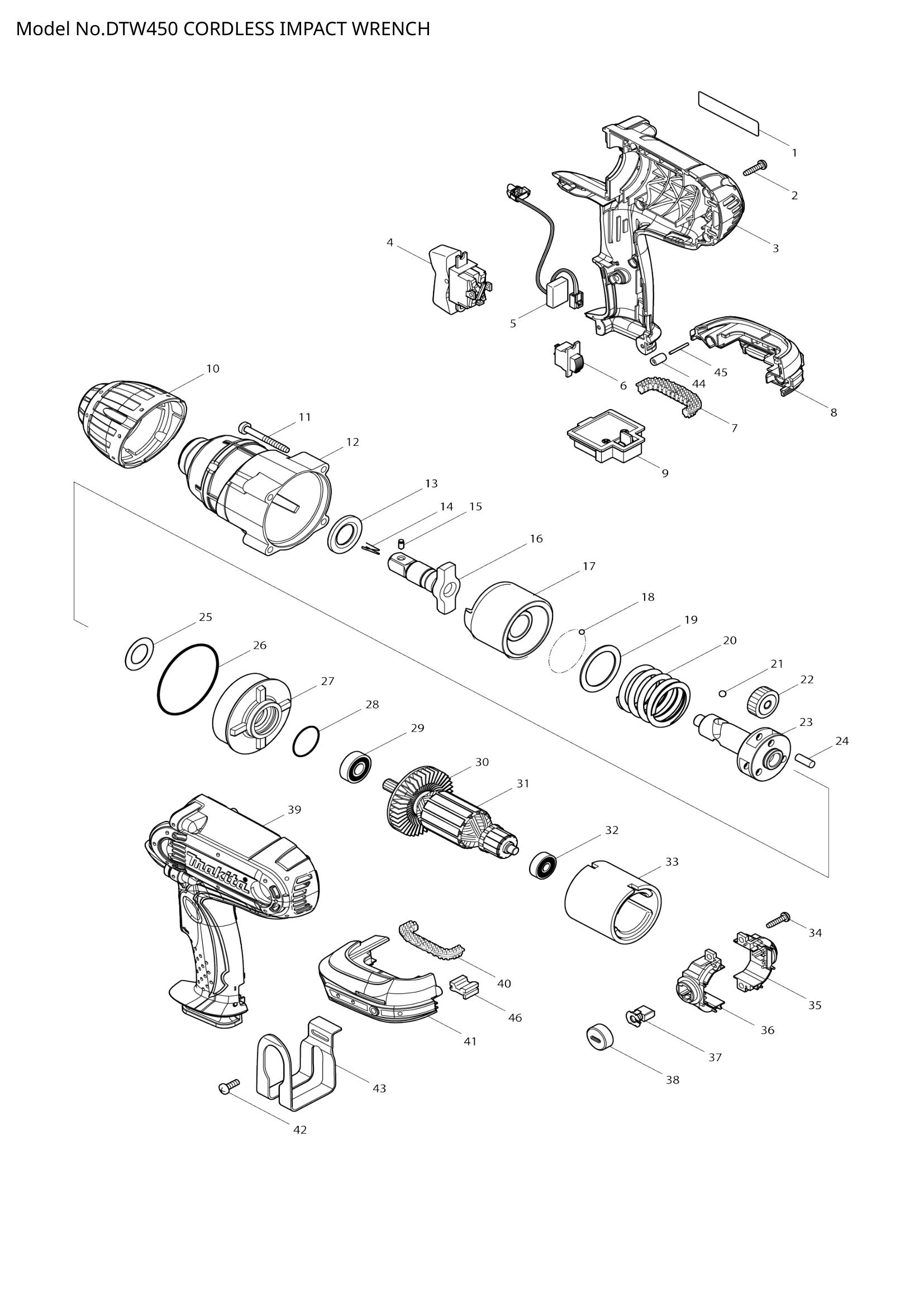

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 265995-6 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | |
| 003 | 188434-8 | HOUSING SET | 1 | €52.88 | 1-4 weeks to ship | |
| 005 | 631738-2 | LIGHT CIRCUIT | 1 | €16.70 | 1-4 weeks to ship | |
| 006 | 638503-0 | SWITCH UNIT | 1 | €16.70 | 1-4 weeks to ship | |
| 007 | 424042-4 | CUSHION RUBBER | 1 | €2.78 | 1-4 weeks to ship | |
| 008 | 187873-9 | BATTERY HOUSING SET | 1 | €14.19 | 1-4 weeks to ship | |
| 009 | 643843-3 | TERMINAL | 1 | €8.35 | 1-4 weeks to ship | |
| 010 | 421971-2 | BUMPER | 1 | €4.17 | 1-4 weeks to ship | |
| 011 | 266056-5 | TAPPING SCREW 5X45 | 4 | €0.83 | 1-4 weeks to ship | |
| 012 | 158076-2 | HAMMER CASE COMPLETE | 1 | €33.40 | 1-4 weeks to ship | |
| 013 | 267268-3 | FLAT WASHER 19 | 1 | €1.11 | 1-4 weeks to ship | |
| 014 | 231907-1 | RING SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 324697-4 | HAMMER | 1 | €30.61 | 1-4 weeks to ship | |
| 018 | 216008-6 | STEEL BALL 4 | 29 | €0.56 | 1-4 weeks to ship | |
| 019 | 267340-1 | FLAT WASHER 32 | 2 | €0.83 | 1-4 weeks to ship | |
| 020 | 234338-3 | COMPRESSION SPRING 33 | 1 | €5.71 | 1-4 weeks to ship | |
| 021 | 216007-8 | STEEL BALL 6.4 | 2 | €0.56 | 1-4 weeks to ship | |
| 022 | 227171-0 | SPUR GEAR 23 | 3 | €2.78 | 1-4 weeks to ship | |
| 023 | 310185-7 | SPINDLE | 1 | €52.88 | 1-4 weeks to ship | |
| 024 | 256033-5 | PIN 6 | 3 | €0.56 | 1-4 weeks to ship | |
| 025 | 253794-8 | FLAT WASHER 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 213722-5 | O RING 63 | 1 | €0.83 | 1-4 weeks to ship | |
| 027 | 227172-8 | INTERNAL GEAR 53 | 1 | €25.05 | 1-4 weeks to ship | |
| 028 | 213407-3 | O RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 030 | 241850-6 | FAN 60 | 1 | €4.45 | 1-4 weeks to ship | |
| 031 | 519199-5 | ARMATURE ASS'Y 18V | 1 | €52.88 | 1-4 weeks to ship | |
| 032 | 210025-8 | BALL BEARING 627LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 033 | 638107-8 | YOKE UNIT | 1 | €19.48 | 1-4 weeks to ship | |
| 034 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 035 | 638870-3 | BRUSH HOLDER COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 038 | 643941-3 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 039 | 188434-8 | HOUSING SET | 1 | €52.88 | 1-4 weeks to ship | |
| 040 | 424042-4 | CUSHION RUBBER | 1 | €2.78 | 1-4 weeks to ship | |
| 041 | 187873-9 | BATTERY HOUSING SET | 1 | €14.19 | 1-4 weeks to ship | |
| 042 | 251314-2 | + SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 345736-7 | HOOK | 1 | €2.78 | 1-4 weeks to ship | |
| 044 | 263036-2 | RUBBER PIN 5 | 1 | €1.67 | 1-4 weeks to ship | |
| 045 | 268184-2 | PIN 1.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 424026-2 | CUSHION | 1 | €4.17 | 1-4 weeks to ship | |
| 047 | DTW450 SERIAL NO. LABEL | 1 | Not available in store | |||
