DTW302
DTW302

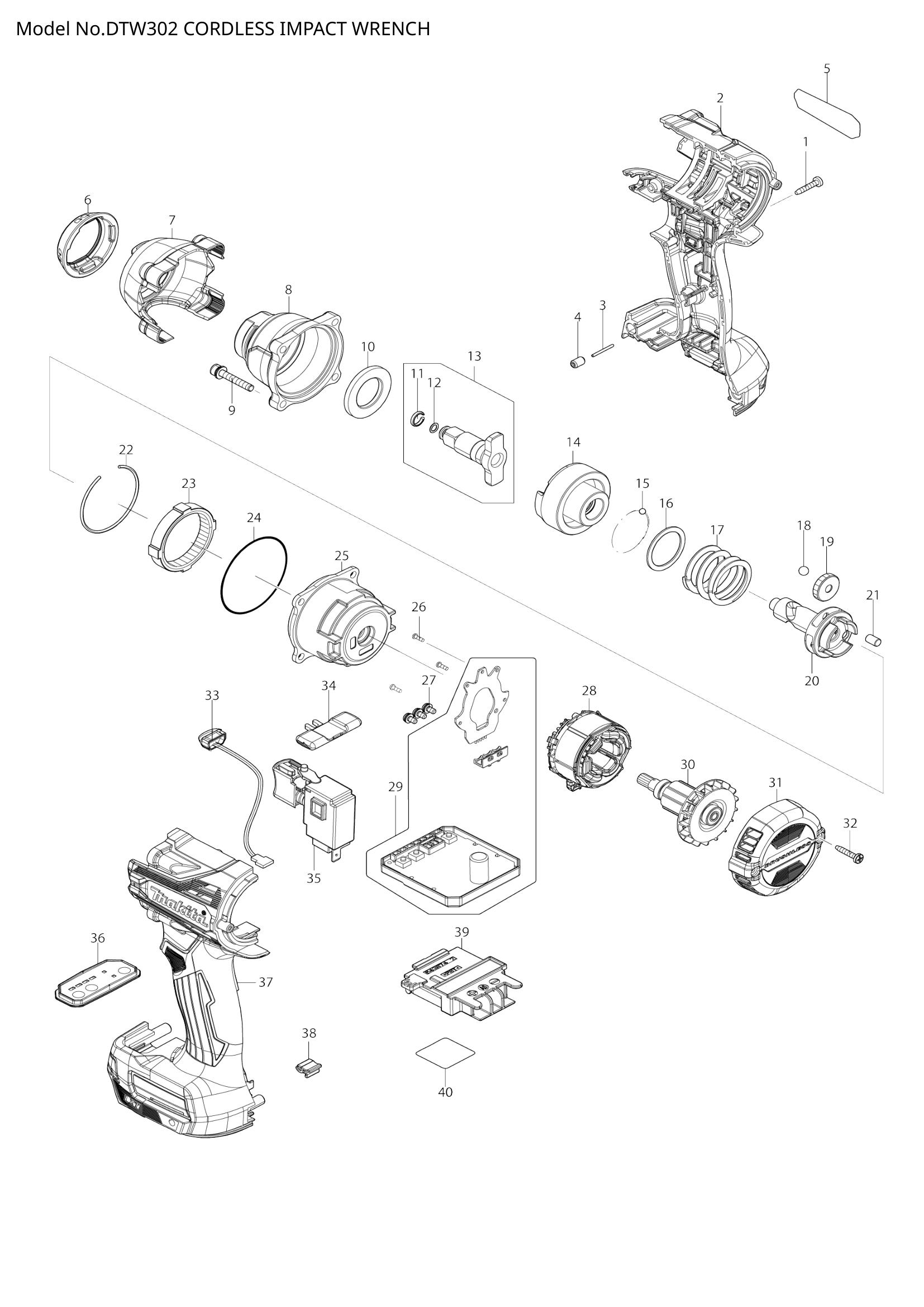

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | €0.56 | 1-4 weeks to ship | |
| 002 | 183P27-2 | HOUSING SET | 1 | €14.47 | 1-4 weeks to ship | |
| 003 | 268284-8 | PIN 1.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 263036-2 | RUBBER PIN 5 | 1 | €1.67 | 1-4 weeks to ship | |
| 005 | DTW302 NAME PLATE | 1 | Not available in store | |||
| 006 | 422584-2 | BUMPER | 1 | €1.57 | 1-4 weeks to ship | |
| 007 | 412556-5 | HAMMER CASE COVER | 1 | €1.15 | 1-4 weeks to ship | |
| 008 | HAMMER CASE COMPLETE | 1 | Not available in store | |||
| 010 | NYLON WASHER 20 | 1 | Not available in store | |||
| 011 | 233943-3 | RING SPRING 8 | 1 | €3.48 | 1-4 weeks to ship | |
| 012 | 213960-9 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | ANVIL ASS'Y | 1 | Not available in store | |||
| 014 | HAMMER | 1 | Not available in store | |||
| 015 | 216001-0 | STEEL BALL 3.5 | 24 | €0.56 | 1-4 weeks to ship | |
| 016 | 267175-0 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 234322-8 | COMPRESSION SPRING 25 | 1 | €3.34 | 1-4 weeks to ship | |
| 018 | 216011-7 | STEEL BALL 5.6 | 2 | €0.56 | 1-4 weeks to ship | |
| 019 | 227338-0 | SPUR GEAR 22 | 3 | €6.12 | 1-4 weeks to ship | |
| 020 | 327573-1 | SPINDLE | 1 | €41.09 | 1-4 weeks to ship | |
| 021 | 268311-1 | PIN 5 | 3 | €0.70 | 1-4 weeks to ship | |
| 022 | 233910-8 | RING SPRING 43 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 227337-2 | INTERNAL GEAR 51 | 1 | €2.92 | 1-4 weeks to ship | |
| 024 | 213785-1 | O-RING 49 | 1 | €0.14 | 1-4 weeks to ship | |
| 025 | 140T37-6 | INTERNAL GEAR CASE COMPLET | 1 | €8.86 | 1-4 weeks to ship | |
| 026 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 027 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 029 | 620C64-2 | CONTROLLER | 1 | €125.05 | 1-4 weeks to ship | |
| 030 | 619626-3 | ROTOR | 1 | €21.71 | 1-4 weeks to ship | |
| 031 | 412555-7 | REAR COVER | 1 | €1.85 | 1-4 weeks to ship | |
| 032 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 033 | 620521-2 | LED CIRCUIT | 1 | €6.68 | 1-4 weeks to ship | |
| 034 | 455053-8 | F/R CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 651443-5 | SWITCH C3JR-4B | 1 | €21.37 | 1-4 weeks to ship | |
| 037 | 183P27-2 | HOUSING SET | 1 | €14.47 | 1-4 weeks to ship | |
| 038 | 424517-3 | CUSHION | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 040 | DTW302 SERIAL NO. LABEL | 1 | Not available in store | |||
