DTW284
DTW284

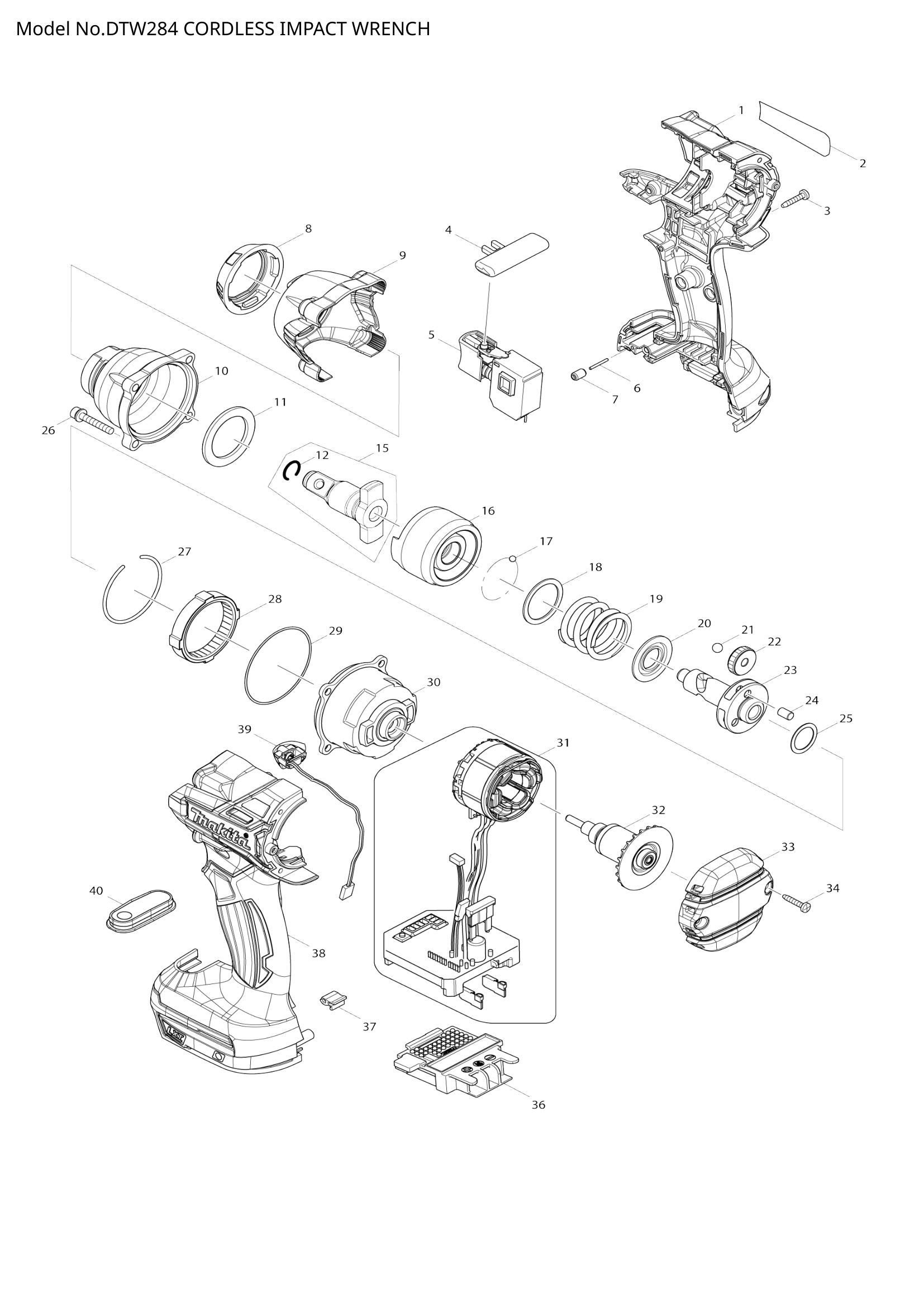

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | HOUSING SET | 1 | Not available in store | |||
| 002 | DTW284 NAME PLATE | 1 | Not available in store | |||
| 003 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | €0.56 | 1-4 weeks to ship | |
| 004 | 419041-9 | F/R CHANGE LEVER | 1 | €1.11 | 1-4 weeks to ship | |
| 005 | 650673-5 | SWITCH C3JW-1A | 1 | €22.26 | 1-4 weeks to ship | |
| 006 | 268184-2 | PIN 1.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 263036-2 | RUBBER PIN 5 | 1 | €1.67 | 1-4 weeks to ship | |
| 008 | 424568-6 | BUMPER | 1 | €1.95 | 1-4 weeks to ship | |
| 009 | 454851-7 | HAMMER CASE COVER | 1 | €1.81 | 1-4 weeks to ship | |
| 454851-7 | HAMMER CASE COVER | 1 | €1.81 | 1-4 weeks to ship | ||
| 011 | 261154-0 | NYLON WASHER 28 | 1 | €0.42 | 1-4 weeks to ship | |
| 012 | 231907-1 | RING SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 135824-6 | ANVIL E ASS'Y | 1 | €45.50 | 1-4 weeks to ship | |
| 016 | 326384-1 | HAMMER | 1 | €30.20 | 1-4 weeks to ship | |
| 017 | 216001-0 | STEEL BALL 3.5 | 24 | €0.56 | 1-4 weeks to ship | |
| 018 | 267175-0 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 234322-8 | COMPRESSION SPRING 25 | 1 | €3.34 | 1-4 weeks to ship | |
| 020 | 267766-7 | CUP WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 216011-7 | STEEL BALL 5.6 | 2 | €0.56 | 1-4 weeks to ship | |
| 022 | 227338-0 | SPUR GEAR 22 | 3 | €6.12 | 1-4 weeks to ship | |
| 023 | 326385-9 | SPINDLE | 1 | €44.25 | 1-4 weeks to ship | |
| 024 | 268311-1 | PIN 5 | 3 | €0.70 | 1-4 weeks to ship | |
| 025 | 253147-1 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 233910-8 | RING SPRING 43 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 227337-2 | INTERNAL GEAR 51 | 1 | €2.92 | 1-4 weeks to ship | |
| 029 | 213785-1 | O-RING 49 | 1 | €0.14 | 1-4 weeks to ship | |
| 030 | 142389-1 | INTERNAL GEAR CASE COMPLET | 1 | €18.65 | 1-4 weeks to ship | |
| 032 | 619341-9 | ROTOR | 1 | €61.23 | 1-4 weeks to ship | |
| 033 | 454850-9 | REAR COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 454850-9 | REAR COVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 034 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 036 | 643850-6 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 037 | 424517-3 | CUSHION | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | HOUSING SET | 1 | Not available in store | |||
| 039 | 620295-5 | LED CIRCUIT | 1 | €8.21 | 1-4 weeks to ship | |
| 040 | 144217-6 | SWITCH PLATE COMPLETE | 1 | €1.95 | 1-4 weeks to ship | |
