DTS141
DTS141

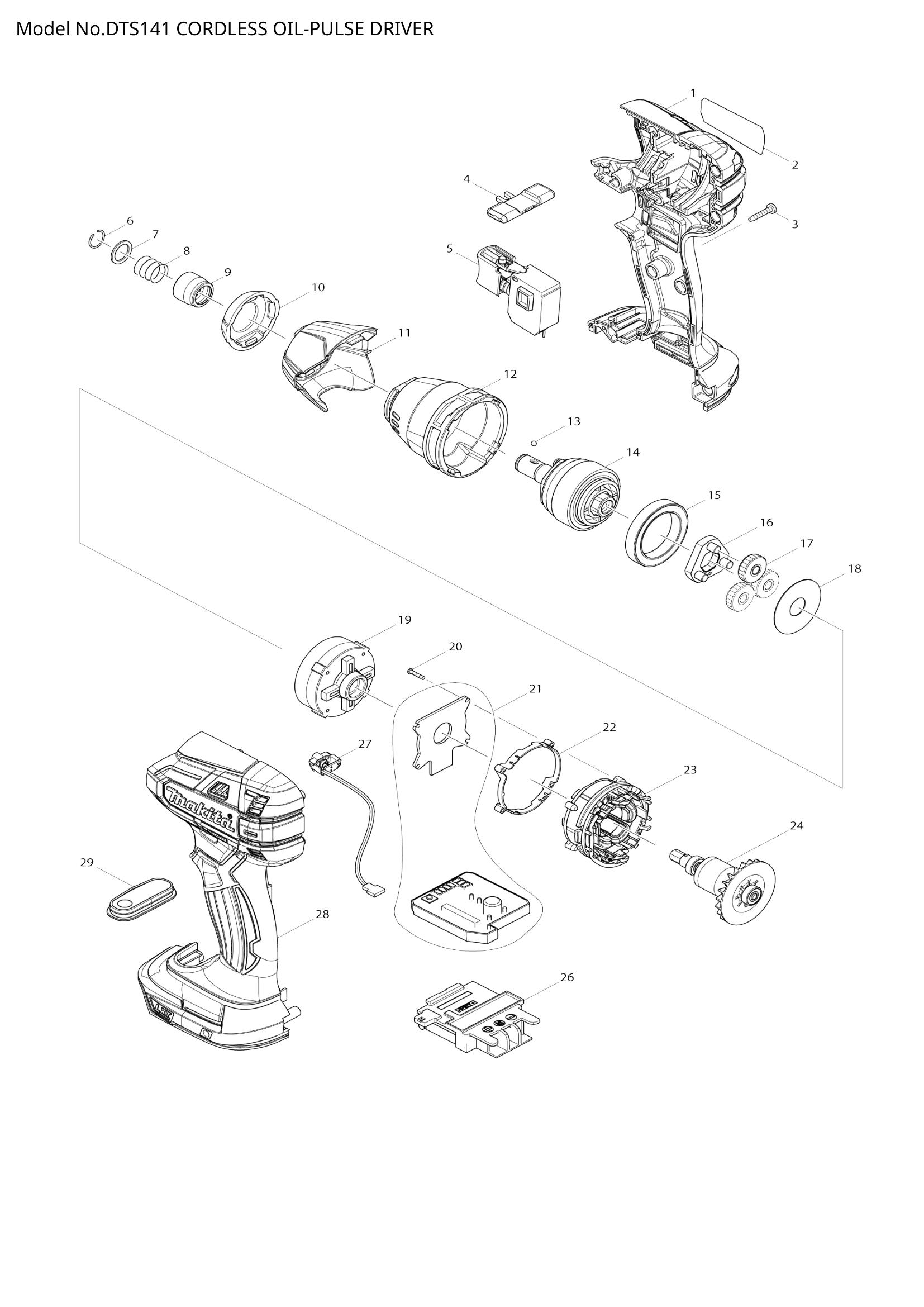

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 187989-0 | HOUSING SET | 1 | €29.92 | 1-4 weeks to ship | |
| 002 | DTS141 NAME PLATE | 1 | Not available in store | |||
| 003 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 9 | €0.56 | 1-4 weeks to ship | |
| 004 | 455053-8 | F/R CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 650673-5 | SWITCH C3JW-1A | 1 | €22.26 | 1-4 weeks to ship | |
| 006 | 231965-7 | RING SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 267143-3 | FLAT WASHER 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 234347-2 | COMPRESSION SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 424662-4 | BUMPER | 1 | €2.37 | 1-4 weeks to ship | |
| 011 | 455468-9 | UNIT CASE COVER | 1 | €2.64 | 1-4 weeks to ship | |
| 012 | 142928-7 | UNIT CASE COMPLETE | 1 | €17.53 | 1-4 weeks to ship | |
| 013 | 216019-1 | STEEL BALL 3 | 2 | €0.56 | 1-4 weeks to ship | |
| 015 | 211294-4 | BALL BEARING 6806LLU | 1 | €11.13 | 1-4 weeks to ship | |
| 016 | 142929-5 | CARRIER COMPLETE | 1 | €12.66 | 1-4 weeks to ship | |
| 017 | 227368-1 | SPUR GEAR 22 | 3 | €3.90 | 1-4 weeks to ship | |
| 018 | 267067-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 227361-5 | INTERNAL GEAR 51 | 1 | €22.26 | 1-4 weeks to ship | |
| 020 | 266786-8 | + PAN HEAD TAPPING SCREW 2X | 4 | €0.56 | 1-4 weeks to ship | |
| 022 | 687464-1 | SUPPORT | 1 | €3.90 | 1-4 weeks to ship | |
| 023 | 629137-0 | STATOR | 1 | €26.44 | 1-4 weeks to ship | |
| 024 | 619358-2 | ROTOR | 1 | €61.23 | 1-4 weeks to ship | |
| 026 | 643860-3 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 027 | 620355-3 | LED CIRCUIT | 1 | €8.49 | 1-4 weeks to ship | |
| 028 | 187989-0 | HOUSING SET | 1 | €29.92 | 1-4 weeks to ship | |
