5604R
5604R

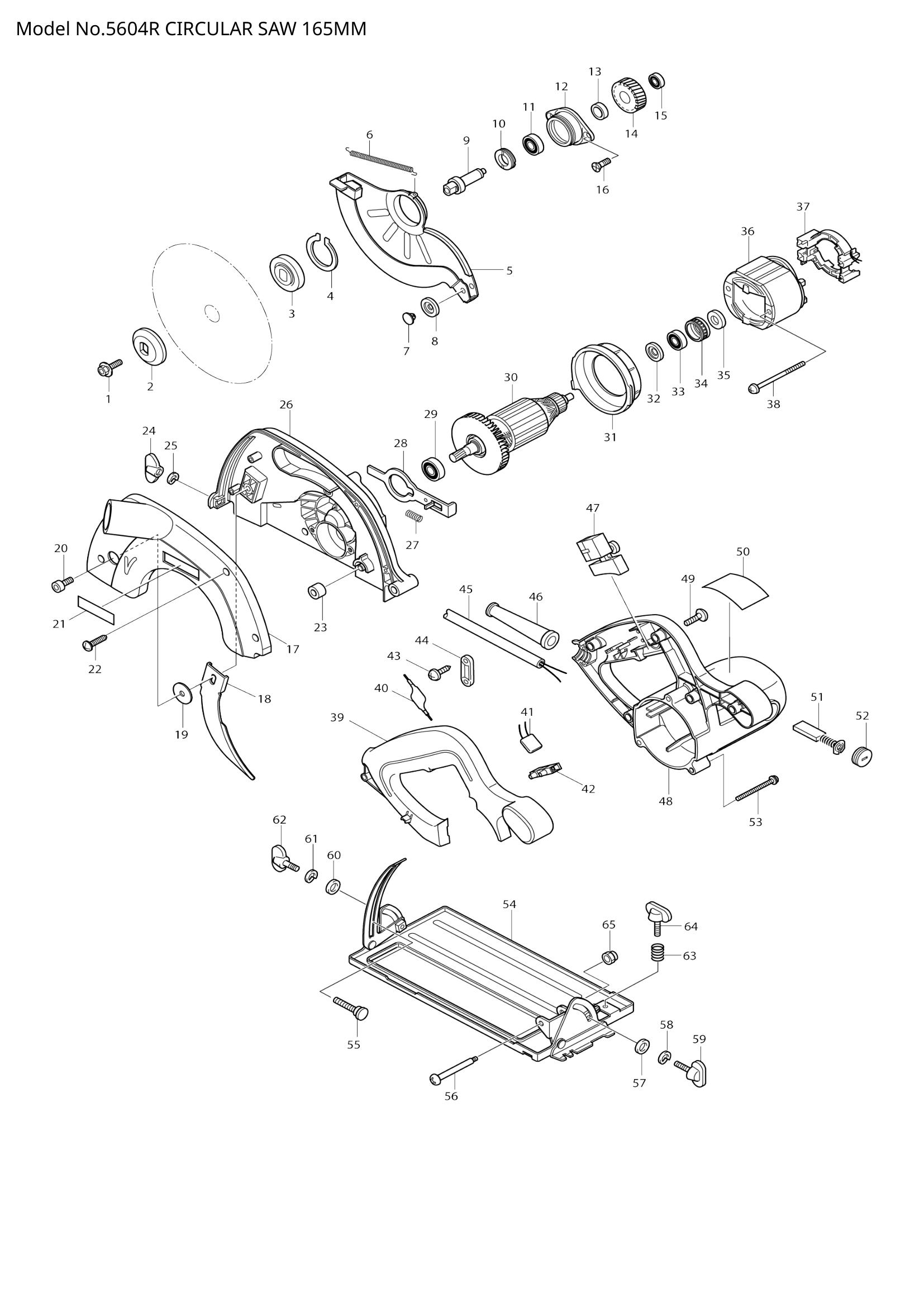

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266024-8 | HEX. SOCKET HEAD BOLT M6X20 | 1 | €1.39 | 1-4 weeks to ship | |
| 002 | 224329-2 | OUTER FLANGE 45 | 1 | €2.78 | 1-4 weeks to ship | |
| 003 | 224180-0 | INNER FLANGE 45 | 1 | €4.17 | 1-4 weeks to ship | |
| 004 | 961155-5 | RETAINING RING S-38 | 1 | €0.83 | 1-4 weeks to ship | |
| 961155-5 | RETAINING RING S-38 | 1 | €0.83 | 1-4 weeks to ship | ||
| 005 | 165256-3 | SAFETY COVER | 1 | €5.57 | 1-4 weeks to ship | |
| 007 | 415437-2 | ROLLER PIN 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 008 | 415438-0 | ROLLER 20 | 2 | €0.56 | 1-4 weeks to ship | |
| 009 | 322838-6 | SPINDLE | 1 | €14.47 | 1-4 weeks to ship | |
| 010 | 285802-7 | BEARING RETAINER 19-33 | 1 | €2.78 | 1-4 weeks to ship | |
| 011 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 013 | 257173-2 | RING 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 014 | 226467-6 | HELICAL GEAR 47 | 1 | €22.26 | 1-4 weeks to ship | |
| 016 | 265034-2 | + COUNTERSUNK HEAD SCREW | 2 | €0.56 | 1-4 weeks to ship | |
| 018 | 344800-1 | RIVING KNIFE | 1 | €5.57 | 1-4 weeks to ship | |
| 019 | 253783-3 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 922312-0 | HEX. SOCKET HEAD BOLT M6X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 266034-5 | TAPPING SCREW CT 4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 023 | 262511-5 | RUBBER SLEEVE 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 252639-7 | WING NUT M6 | 1 | €4.17 | 1-4 weeks to ship | |
| 026 | 151635-1 | BLADE CASE COMPLETE | 1 | €44.53 | 1-4 weeks to ship | |
| 027 | 233092-6 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 344317-4 | SHAFT LOCK | 1 | €2.78 | 1-4 weeks to ship | |
| 029 | 211097-6 | BALL BEARING 6000LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 031 | 415873-2 | BAFFLE PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 032 | 681654-8 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 211033-2 | BALL BEARING 608LB | 1 | €4.17 | 1-4 weeks to ship | |
| 034 | 421720-7 | RUBBER RING 22 | 1 | €8.35 | 1-4 weeks to ship | |
| 035 | 261115-0 | RUBBER WASHER 13 | 1 | €1.11 | 1-4 weeks to ship | |
| 036 | 634154-7 | FIELD 240V | 1 | €27.83 | 1-4 weeks to ship | |
| 634154-7 | FIELD 240V | 1 | €27.83 | 1-4 weeks to ship | ||
| 038 | 266095-5 | TAPPING SCREW 5X55 | 2 | €0.83 | 1-4 weeks to ship | |
| 039 | 416991-9 | HANDLE COVER | 1 | €13.92 | 1-4 weeks to ship | |
| 040 | 646077-7 | CHOKE COIL | 1 | €1.39 | 1-4 weeks to ship | |
| 041 | 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 042 | 654532-5 | TERMINAL BLOCK 1P | 1 | €1.11 | 1-4 weeks to ship | |
| 043 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 045 | 665865-3 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €16.70 | 1-4 weeks to ship | |
| 046 | 682540-6 | CORD GUARD 9.3-90 | 1 | €1.39 | 1-4 weeks to ship | |
| 047 | 651291-2 | SWITCH SGES115C-5 | 1 | €8.35 | 1-4 weeks to ship | |
| 651291-2 | SWITCH SGES115C-5 | 1 | €8.35 | 1-4 weeks to ship | ||
| 048 | 151636-9 | MOTOR HOUSING COMPLETE | 1 | €47.31 | 1-4 weeks to ship | |
| 052 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | €0.56 | 1-4 weeks to ship | |
| 053 | 911268-2 | PAN HEAD SCREW M5X45 | 3 | €0.56 | 1-4 weeks to ship | |
| 911268-2 | PAN HEAD SCREW M5X45 | 3 | €0.56 | 1-4 weeks to ship | ||
| 054 | 168329-1 | BASE | 1 | €16.70 | 1-4 weeks to ship | |
| 055 | 265950-8 | CAP SQUARE NECK BOLT M6X26 | 1 | €1.67 | 1-4 weeks to ship | |
| 056 | 265056-2 | + PAN HEAD SCREW M5 | 1 | €1.67 | 1-4 weeks to ship | |
| 057 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 059 | 265701-9 | THUMB SCREW M6X14 | 1 | €1.67 | 1-4 weeks to ship | |
| 060 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 062 | 265701-9 | THUMB SCREW M6X14 | 1 | €1.67 | 1-4 weeks to ship | |
| 063 | 231316-4 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 265701-9 | THUMB SCREW M6X14 | 1 | €1.67 | 1-4 weeks to ship | |
| 065 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship |
