5603R
5603R

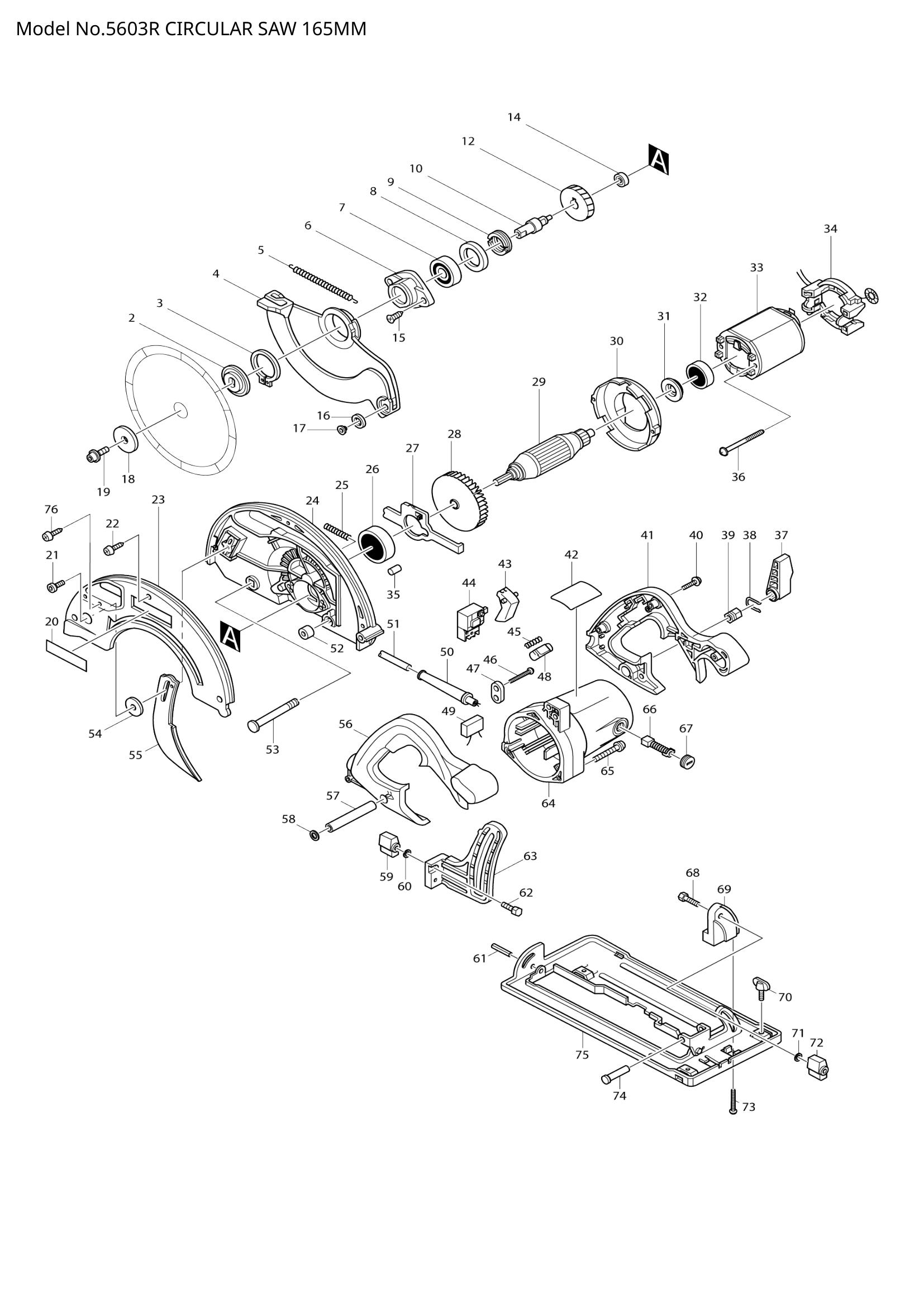

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 003 | 961156-3 | RETAINING RING S-40 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 267126-3 | FLAT WASHER 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 285831-0 | BEARING RETAINER 19-34 | 1 | €5.57 | 1-4 weeks to ship | |
| 016 | 415438-0 | ROLLER 20 | 2 | €0.56 | 1-4 weeks to ship | |
| 017 | 415437-2 | ROLLER PIN 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 020 | 819064-1 | MAKITA MARK | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 922312-0 | HEX. SOCKET HEAD BOLT M6X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 266042-6 | TAPPING SCREW BIND CT 4X20 | 3 | €0.56 | 1-4 weeks to ship | |
| 025 | 233092-6 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 027 | 344114-8 | SHAFT LOCK | 1 | €4.17 | 1-4 weeks to ship | |
| 028 | 241876-8 | FAN 76 | 1 | €4.17 | 1-4 weeks to ship | |
| 030 | 415503-5 | BAFFLE PLATE | 1 | €2.92 | 1-4 weeks to ship | |
| 031 | 681625-5 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 263005-3 | RUBBER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 272230-5 | LEVER 54 | 1 | €0.83 | 1-4 weeks to ship | |
| 038 | 231955-0 | RING SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 252134-7 | HEX. NUT M8 | 1 | €1.67 | 1-4 weeks to ship | |
| 041 | 182675-8 | HANDLE SET | 1 | €16.70 | 1-4 weeks to ship | |
| 043 | 415439-8 | SWITCH LEVER | 1 | €1.67 | 1-4 weeks to ship | |
| 044 | 651922-3 | SWITCH TG71B | 1 | €11.13 | 1-4 weeks to ship | |
| 045 | 231230-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 415440-3 | LOCK-OFF BUTTON | 1 | €1.11 | 1-4 weeks to ship | |
| 052 | 262511-5 | RUBBER SLEEVE 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 266019-1 | CAP SQUARE NECK BOLT M8X98 | 1 | €1.67 | 1-4 weeks to ship | |
| 054 | 253783-3 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 165093-5 | RIVING KNIFE | 1 | €19.48 | 1-4 weeks to ship | |
| 056 | 182675-8 | HANDLE SET | 1 | €16.70 | 1-4 weeks to ship | |
| 057 | 331432-3 | PIPE 9 | 1 | €1.67 | 1-4 weeks to ship | |
| 058 | 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 059 | 252624-0 | WING NUT M6 | 1 | €1.67 | 1-4 weeks to ship | |
| 060 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 061 | 951204-6 | SPRING PIN 6-16 | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | 921332-1 | HEX. BOLT M6X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | 316597-2 | DEPTH GUIDE | 1 | €16.70 | 1-4 weeks to ship | |
| 064 | 159714-9 | MOTOR HOUSING COMPLETE | 1 | €27.83 | 1-4 weeks to ship | |
| 065 | 911278-9 | PAN HEAD SCREW M5X55 | 3 | €0.56 | 1-4 weeks to ship | |
| 067 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | €0.56 | 1-4 weeks to ship | |
| 068 | 921332-1 | HEX. BOLT M6X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | 415443-7 | ANGULAR PLATE GUIDE | 1 | €2.78 | 1-4 weeks to ship | |
| 071 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 072 | 252624-0 | WING NUT M6 | 1 | €1.67 | 1-4 weeks to ship | |
| 074 | 256690-9 | PIN 10 | 1 | €2.78 | 1-4 weeks to ship | |
| 076 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 077 | 213560-5 | O RING 44 | 1 | €0.56 | 1-4 weeks to ship |
