DTL061
DTL061

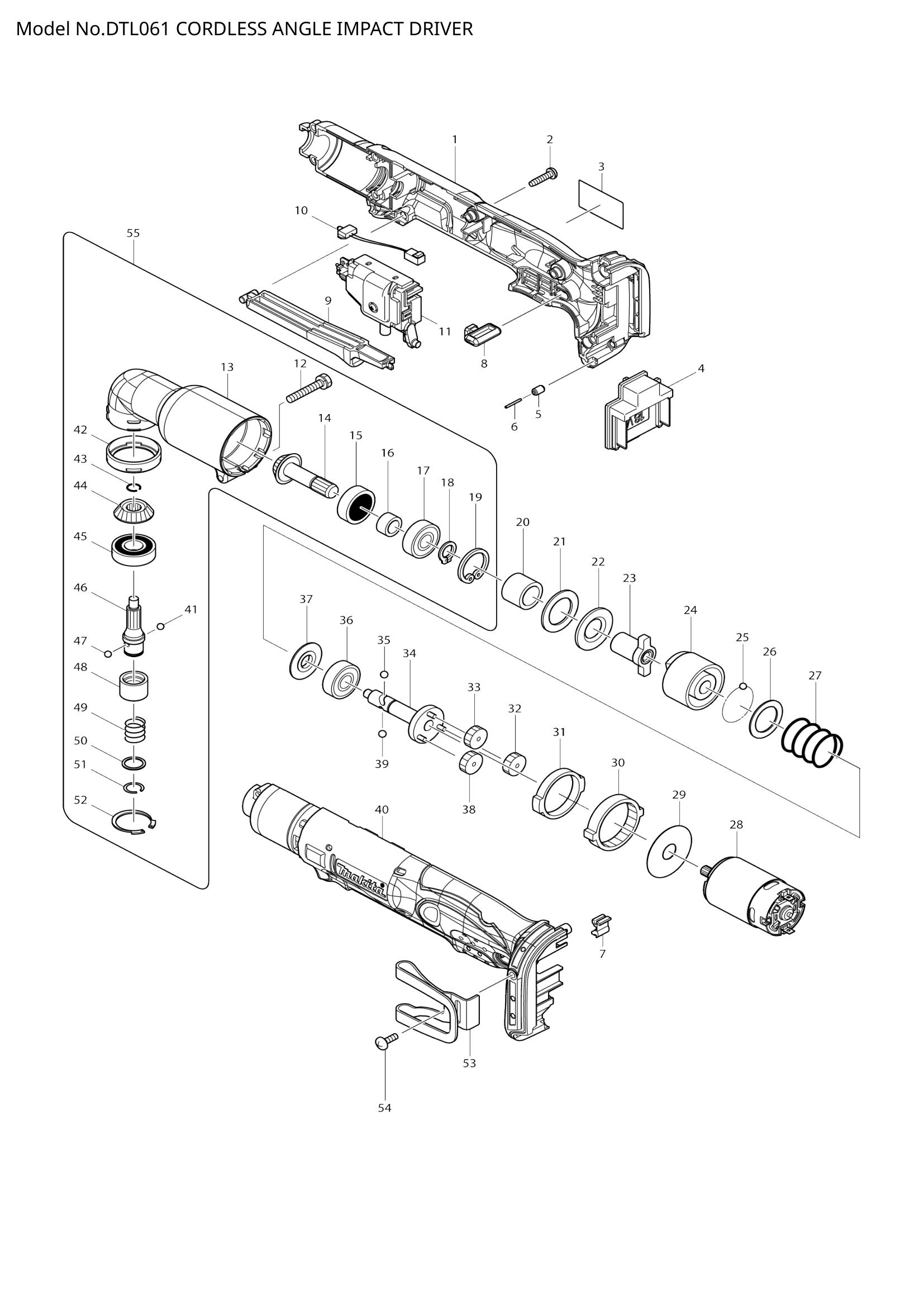

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 187502-4 | HOUSING SET | 1 | €36.74 | 1-4 weeks to ship | |
| 002 | 265995-6 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | |
| 003 | DTL061 NAME PLATE | 1 | Not available in store | |||
| 620622-6 | LED CIRCUIT | 1 | €11.27 | 1-4 weeks to ship | ||
| 004 | 643852-2 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 457484-7 | LENS | 1 | €2.23 | 1-4 weeks to ship | ||
| 643852-2 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | ||
| 005 | CHANGE PLATE | 1 | Not available in store | |||
| 263036-2 | RUBBER PIN 5 | 1 | €1.67 | 1-4 weeks to ship | ||
| 006 | 233025-1 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 268184-2 | PIN 1.5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 007 | 424026-2 | CUSHION | 1 | €4.17 | 1-4 weeks to ship | |
| 008 | 450126-2 | FR CHANGE LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| SENSOR CIRCUIT | 1 | Not available in store | ||||
| 009 | USB CIRCUIT | 1 | Not available in store | |||
| 450125-4 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 010 | USB COVER COMPLETE | 1 | Not available in store | |||
| 631778-0 | LED CIRCUIT | 1 | €11.13 | 1-4 weeks to ship | ||
| 011 | SWITCH UNIT | 1 | Not available in store | |||
| LED CIRCUIT | 1 | Not available in store | ||||
| 012 | 457469-3 | F/R CHANGE LEVER | 1 | €2.09 | 1-4 weeks to ship | |
| 265409-5 | + HEX. BOLT M5X30 | 1 | €1.39 | 1-4 weeks to ship | ||
| 013 | 651082-1 | SWITCH C3JW-1B-S | 1 | €27.97 | 1-4 weeks to ship | |
| 152461-1 | ANGLE HEAD COMPLETE | 1 | €52.88 | 1-4 weeks to ship | ||
| 014 | 620621-8 | BUZZER CIRCUIT | 1 | €10.99 | 1-4 weeks to ship | |
| 015 | RING SPRING 9 | 1 | Not available in store | |||
| 211064-1 | BALL BEARING 6000 | 1 | €7.65 | 1-4 weeks to ship | ||
| 016 | 267070-4 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 257660-1 | SLEEVE 10 | 1 | €1.67 | 1-4 weeks to ship | ||
| 017 | 232374-3 | COMPRESSION SPRING 10A | 1 | €0.97 | 1-4 weeks to ship | |
| 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | ||
| 018 | 161607-8 | BIT SLEEVE | 1 | €8.21 | 1-4 weeks to ship | |
| 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 019 | 457530-6 | LOCK NUT M28 BLACK | 1 | €4.59 | 1-4 weeks to ship | |
| 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | ||
| 020 | 213836-0 | O-RING 22 | 1 | €0.42 | 1-4 weeks to ship | |
| 257662-7 | SLEEVE 15 | 1 | €5.57 | 1-4 weeks to ship | ||
| 021 | 216015-9 | STEEL BALL 2.4 | 2 | €0.83 | 1-4 weeks to ship | |
| 261095-0 | RUBBER WASHER 21 | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 267120-5 | FLAT WASHER 15 | 1 | €2.78 | 1-4 weeks to ship | |
| 023 | 961026-6 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 322689-7 | ANVIL | 1 | €48.42 | 1-4 weeks to ship | ||
| 024 | 322688-9 | HAMMER | 1 | €34.51 | 1-4 weeks to ship | |
| BALL BEARING 6800LLB | 1 | Not available in store | ||||
| 025 | 216001-0 | STEEL BALL 3.5 | 22 | €0.56 | 1-4 weeks to ship | |
| 026 | 267047-9 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 267121-3 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 027 | 233107-9 | COMPRESSION SPRING 22 | 1 | €1.39 | 1-4 weeks to ship | |
| 324834-0 | LOCK NUT M12 | 1 | €16.70 | 1-4 weeks to ship | ||
| 028 | 629966-1 | DC MOTOR | 1 | €34.93 | 1-4 weeks to ship | |
| 158408-3 | ADJUST RING COMPLETE | 1 | €5.57 | 1-4 weeks to ship | ||
| 029 | 267276-4 | FLAT WASHER 18 | 1 | €0.83 | 1-4 weeks to ship | |
| 267053-4 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 030 | 226280-2 | INTERNAL GEAR 69 | 1 | €21.57 | 1-4 weeks to ship | |
| SPINDLE MR | 1 | Not available in store | ||||
| 031 | 257187-1 | RING 32 | 1 | €2.78 | 1-4 weeks to ship | |
| 216018-3 | STEEL BALL 5.0 | 3 | €0.56 | 1-4 weeks to ship | ||
| 032 | 226279-7 | SPUR GEAR 29 | 1 | €2.78 | 1-4 weeks to ship | |
| 033 | 223146-7 | CAM D | 1 | €25.05 | 1-4 weeks to ship | |
| 226279-7 | SPUR GEAR 29 | 1 | €2.78 | 1-4 weeks to ship | ||
| 034 | 216024-8 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 154416-2 | SPINDLE COMPLETE | 1 | €31.73 | 1-4 weeks to ship | ||
| 035 | 216002-8 | STEEL BALL 4.8 | 1 | €0.56 | 1-4 weeks to ship | |
| CAM F | 1 | Not available in store | ||||
| 036 | 216024-8 | STEEL BALL 4 | 7 | €0.56 | 1-4 weeks to ship | |
| 211064-1 | BALL BEARING 6000 | 1 | €7.65 | 1-4 weeks to ship | ||
| 037 | 322719-4 | WASHER 10 | 1 | €4.17 | 1-4 weeks to ship | |
| 038 | 226279-7 | SPUR GEAR 29 | 1 | €2.78 | 1-4 weeks to ship | |
| 039 | 216002-8 | STEEL BALL 4.8 | 1 | €0.56 | 1-4 weeks to ship | |
| 211375-4 | BALL BEARING 6805LLB | 1 | €13.92 | 1-4 weeks to ship | ||
| 040 | 187502-4 | HOUSING SET | 1 | €36.74 | 1-4 weeks to ship | |
| 041 | 227048-9 | INTERNAL GEAR 47 | 1 | €5.57 | 1-4 weeks to ship | |
| 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 042 | 424044-0 | RUBBER RING 32 | 1 | €2.78 | 1-4 weeks to ship | |
| 043 | 231990-8 | RING SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 046 | 323920-4 | SPINDLE M | 1 | €52.88 | 1-4 weeks to ship | |
| 047 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 322718-6 | SLEEVE | 1 | €8.35 | 1-4 weeks to ship | |
| 049 | 233005-7 | COMPRESSION SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 267085-1 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 231951-8 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 962116-8 | RETAINING RING R-28 | 1 | €0.83 | 1-4 weeks to ship | |
| 053 | 346317-0 | HOOK | 1 | €1.67 | 1-4 weeks to ship | |
| 054 | 251314-2 | + SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 135183-8 | ANGLE HEAD ASS'Y | 1 | €114.80 | 1-4 weeks to ship | |
