DTD152
DTD152

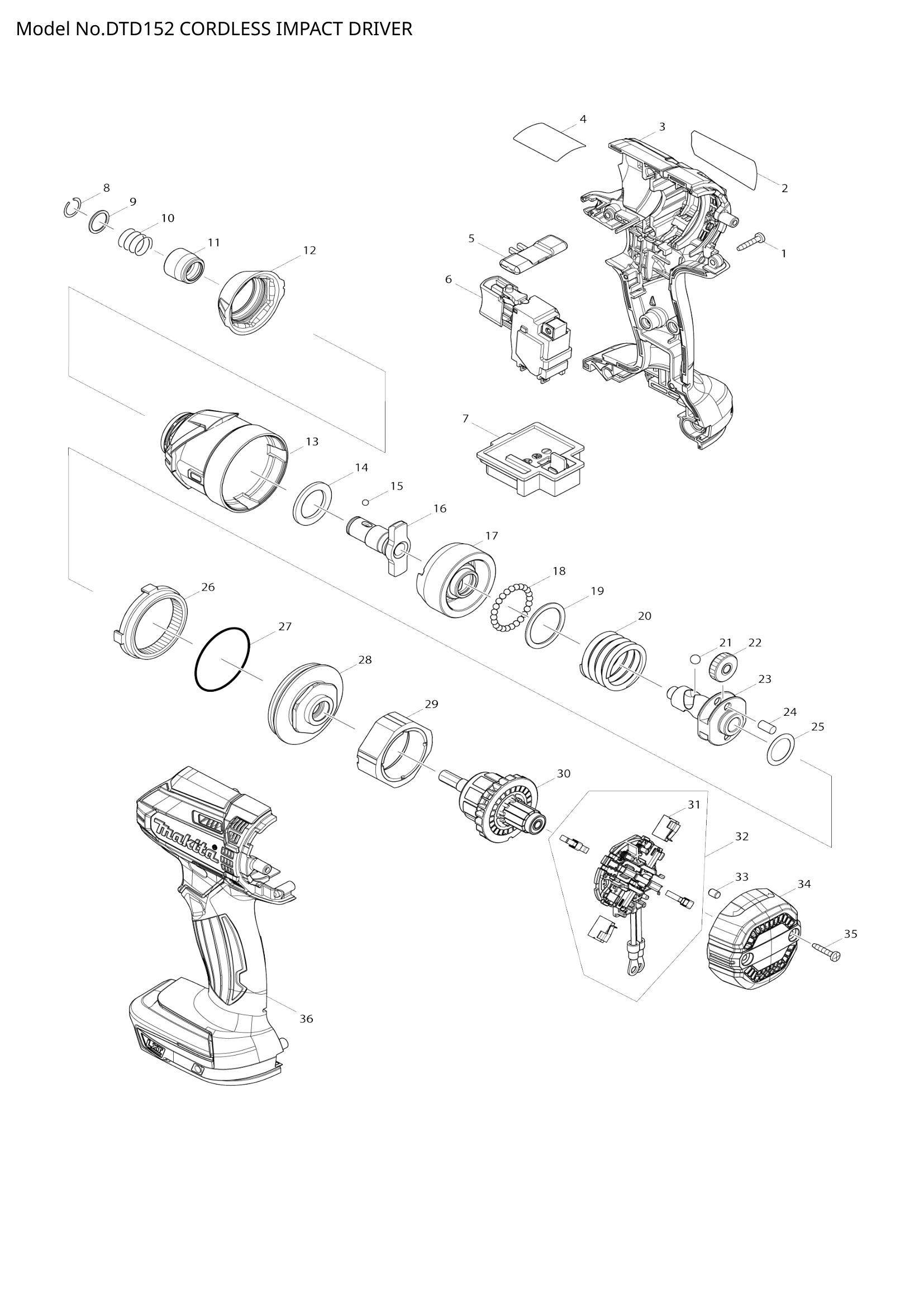

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | DTD152 NAME PLATE | 1 | Not available in store | |||
| 003 | 183B63-4 | HOUSING SET | 1 | €9.74 | 1-4 weeks to ship | |
| 005 | 455053-8 | F/R CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 632F26-6 | SWITCH UNIT | 1 | €34.79 | 1-4 weeks to ship | |
| 632F26-6 | SWITCH UNIT | 1 | €34.79 | 1-4 weeks to ship | ||
| 007 | 643852-2 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 643852-2 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | ||
| 008 | 231951-8 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 267085-1 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 233005-7 | COMPRESSION SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 326072-0 | BIT SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 012 | 424738-7 | BUMPER | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 143299-5 | HAMMER CASE COMPLETE | 1 | €10.16 | 1-4 weeks to ship | |
| 014 | 261151-6 | NYLON WASHER 19 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 216040-0 | STEEL BALL 3.5 | 2 | €0.14 | 1-4 weeks to ship | |
| 016 | 326565-7 | ANVIL M | 1 | €6.96 | 1-4 weeks to ship | |
| 017 | 326564-9 | HAMMER | 1 | €8.77 | 1-4 weeks to ship | |
| 018 | 216040-0 | STEEL BALL 3.5 | 24 | €0.14 | 1-4 weeks to ship | |
| 019 | 267175-0 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 234251-5 | COMPRESSION SPRING 25 | 1 | €2.78 | 1-4 weeks to ship | |
| 021 | 216041-8 | STEEL BALL 5.6 | 2 | €0.14 | 1-4 weeks to ship | |
| 022 | 227362-3 | SPUR GEAR 22 | 2 | €1.95 | 1-4 weeks to ship | |
| 023 | 326562-3 | SPINDLE | 1 | €9.32 | 1-4 weeks to ship | |
| 024 | 256253-1 | PIN 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 025 | 253314-8 | THIN WASHER 15 | 1 | €0.83 | 1-4 weeks to ship | |
| 026 | 227378-8 | INTERNAL GEAR 51 | 1 | €1.53 | 1-4 weeks to ship | |
| 027 | 213507-9 | O RING 40 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 143298-7 | BEARING BOX COMPLETE | 1 | €5.43 | 1-4 weeks to ship | |
| 030 | 619377-8 | ARMATURE | 1 | €16.70 | 1-4 weeks to ship | |
| 619377-8 | ARMATURE | 1 | €16.70 | 1-4 weeks to ship | ||
| 032 | 632F25-8 | BRUSH HOLDER COMPLETE | 1 | €11.69 | 1-4 weeks to ship | |
| 632F25-8 | BRUSH HOLDER COMPLETE | 1 | €11.69 | 1-4 weeks to ship | ||
| 033 | 263032-0 | RUBBER PIN 4 | 4 | €0.56 | 1-4 weeks to ship | |
| 034 | 456044-2 | REAR COVER | 1 | €2.09 | 1-4 weeks to ship | |
| 456044-2 | REAR COVER | 1 | €2.09 | 1-4 weeks to ship | ||
| 036 | 183B63-4 | HOUSING SET | 1 | €9.74 | 1-4 weeks to ship | |
