5143R
5143R

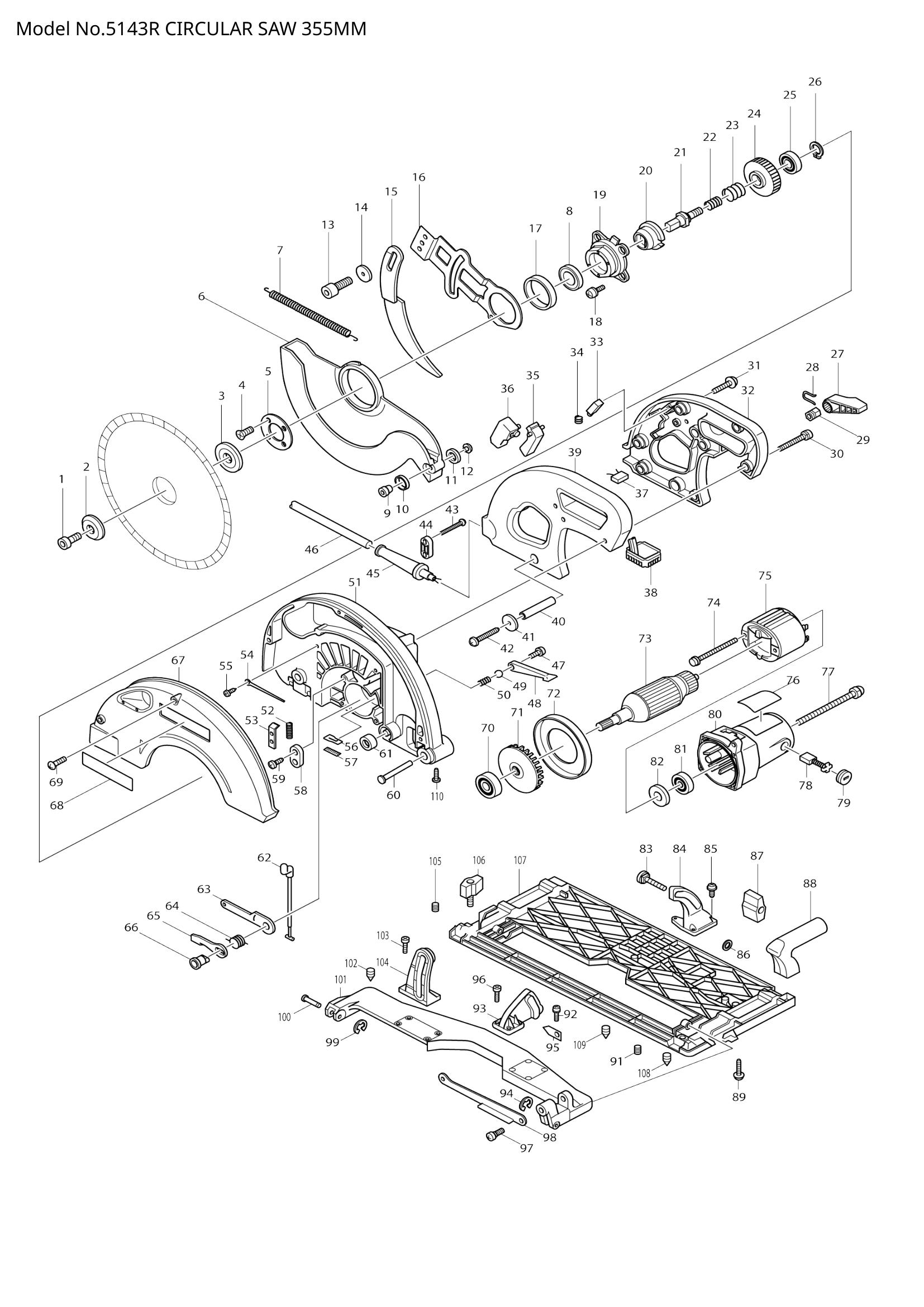

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266083-2 | HEX. SOCKET HEAD BOLT M10X2 | 1 | €11.13 | 1-4 weeks to ship | |
| 004 | 912222-9 | COUNTERSUNK HEAD SCREW M5 | 4 | €0.56 | 1-4 weeks to ship | |
| 005 | 285683-9 | BEARING RETAINER 42-68 | 1 | €8.21 | 1-4 weeks to ship | |
| 008 | 211329-1 | BALL BEARING 6204DDW | 1 | €13.92 | 1-4 weeks to ship | |
| 009 | 415437-2 | ROLLER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 415438-0 | ROLLER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 415438-0 | ROLLER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 415437-2 | ROLLER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 922422-3 | HEX. SOCKET HEAD BOLT M8X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 344304-3 | THICKNESS RING | 1 | €5.57 | 1-4 weeks to ship | |
| 018 | 911223-4 | PAN HEAD SCREW M5X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 911223-4 | PAN HEAD SCREW M5X16 | 4 | €0.56 | 1-4 weeks to ship | ||
| 019 | 316753-4 | BEARING BOX | 1 | €45.78 | 1-4 weeks to ship | |
| 020 | 322830-2 | LOCK SLEEVE | 1 | €33.40 | 1-4 weeks to ship | |
| 021 | 322828-9 | SPINDLE | 1 | €44.25 | 1-4 weeks to ship | |
| 022 | 231969-9 | LOCK SPRING 20 | 1 | €11.13 | 1-4 weeks to ship | |
| 023 | 231968-1 | LOCK SPRING 27 | 1 | €19.48 | 1-4 weeks to ship | |
| 024 | 226453-7 | HELICAL GEAR 57 | 1 | €69.58 | 1-4 weeks to ship | |
| 025 | 211104-5 | BALL BEARING 6001 | 1 | €8.35 | 1-4 weeks to ship | |
| 026 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 272230-5 | LEVER 54 | 1 | €0.83 | 1-4 weeks to ship | |
| 028 | 231955-0 | RING SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 252134-7 | HEX. NUT M8 | 1 | €1.67 | 1-4 weeks to ship | |
| 030 | 911263-2 | PAN HEAD SCREW M5X40 | 3 | €0.56 | 1-4 weeks to ship | |
| 911263-2 | PAN HEAD SCREW M5X40 | 3 | €0.56 | 1-4 weeks to ship | ||
| 031 | 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 032 | 182773-8 | HANDLE SET | 1 | €44.53 | 1-4 weeks to ship | |
| 033 | 415440-3 | LOCK-OFF BUTTON | 1 | €1.11 | 1-4 weeks to ship | |
| 034 | 231230-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 415439-8 | SWITCH LEVER | 1 | €1.67 | 1-4 weeks to ship | |
| 036 | 651923-1 | SWITCH TG70B | 1 | €16.70 | 1-4 weeks to ship | |
| 037 | 645105-5 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 645105-5 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | ||
| 039 | 182773-8 | HANDLE SET | 1 | €44.53 | 1-4 weeks to ship | |
| 040 | 331469-0 | PIPE 9 | 1 | €2.78 | 1-4 weeks to ship | |
| 041 | 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 042 | 266019-1 | CAP SQUARE NECK BOLT M8X98 | 1 | €1.67 | 1-4 weeks to ship | |
| 043 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 047 | 911213-7 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 911213-7 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 049 | 216004-4 | STEEL BALL 7.9 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 231240-1 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 233140-1 | COMPRESSION SPRING 5 | 1 | €2.78 | 1-4 weeks to ship | |
| 053 | 344294-0 | SHAFT LOCK | 1 | €7.93 | 1-4 weeks to ship | |
| 054 | 322829-7 | GUIDE ROD | 1 | €2.78 | 1-4 weeks to ship | |
| 055 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 443098-8 | FELT | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | 344263-1 | PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 058 | 687053-2 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 062 | 353017-5 | WIRE ROPE | 1 | €8.63 | 1-4 weeks to ship | |
| 063 | 344295-8 | ARM | 1 | €4.45 | 1-4 weeks to ship | |
| 064 | 231625-1 | TORSION SPRING 23 | 1 | €4.45 | 1-4 weeks to ship | |
| 065 | 344296-6 | CAM PLATE | 1 | €4.45 | 1-4 weeks to ship | |
| 066 | 268009-0 | PIN 12 | 1 | €16.28 | 1-4 weeks to ship | |
| 067 | 415817-2 | BLADE CASE COVER | 1 | €58.16 | 1-4 weeks to ship | |
| 068 | 819091-8 | MAKITA LABEL | 1 | €2.92 | 1-4 weeks to ship | |
| 069 | 266036-1 | TAPPING SCREW BIND CT 5X20 | 5 | €0.56 | 1-4 weeks to ship | |
| 071 | 241889-9 | FAN 74 | 1 | €8.35 | 1-4 weeks to ship | |
| 072 | 415768-9 | BAFFLE PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 074 | 911947-2 | PAN HEAD SCREW M5X90 | 2 | €4.45 | 1-4 weeks to ship | |
| 076 | 857936-2 | NAME PLATE 5143R | 1 | €2.78 | 1-4 weeks to ship | |
| 077 | 911288-6 | PAN HEAD SCREW M5X65 | 4 | €0.56 | 1-4 weeks to ship | |
| 079 | 643700-5 | BRUSH HOLDER CAP 7-18 | 2 | €1.11 | 1-4 weeks to ship | |
| 082 | 681633-6 | INSULATION WASHER | 1 | €1.67 | 1-4 weeks to ship | |
| 083 | 923471-3 | CAP SQUARE NECK BOLT M8X50 | 1 | €1.11 | 1-4 weeks to ship | |
| 085 | 266036-1 | TAPPING SCREW BIND CT 5X20 | 3 | €0.56 | 1-4 weeks to ship | |
| 086 | 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 087 | 252626-6 | WING NUT | 1 | €2.78 | 1-4 weeks to ship | |
| 088 | 415815-6 | GRIP | 1 | €21.57 | 1-4 weeks to ship | |
| 089 | 266041-8 | TAPPING SCREW 5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 090 | 268013-9 | PIN 8 | 1 | €8.35 | 1-4 weeks to ship | |
| 091 | 265993-0 | H.S.SET SCREW(CUP POINT)M4X5 | 1 | €0.56 | 1-4 weeks to ship | |
| 092 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 094 | 961012-7 | STOP RING E-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 095 | 343902-0 | POINTER | 1 | €2.92 | 1-4 weeks to ship | |
| 097 | 265011-4 | + BINDING HEAD SCREW M5 | 1 | €1.11 | 1-4 weeks to ship | |
| 099 | 961012-7 | STOP RING E-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 100 | 268013-9 | PIN 8 | 1 | €8.35 | 1-4 weeks to ship | |
| 102 | 266085-8 | H.S.SET SCREW(FLAT POINT)M6X | 1 | €0.56 | 1-4 weeks to ship | |
| 103 | 266036-1 | TAPPING SCREW BIND CT 5X20 | 3 | €0.56 | 1-4 weeks to ship | |
| 105 | 265993-0 | H.S.SET SCREW(CUP POINT)M4X5 | 1 | €0.56 | 1-4 weeks to ship | |
| 106 | 251858-2 | DIAL SCREW M6X15 | 4 | €0.83 | 1-4 weeks to ship | |
| 108 | 266085-8 | H.S.SET SCREW(FLAT POINT)M6X | 1 | €0.56 | 1-4 weeks to ship | |
| 109 | 266085-8 | H.S.SET SCREW(FLAT POINT)M6X | 1 | €0.56 | 1-4 weeks to ship | |
| 110 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 113 | 442125-8 | PACKING | 1 | €2.78 | 1-4 weeks to ship |
