DTC103
DTC103

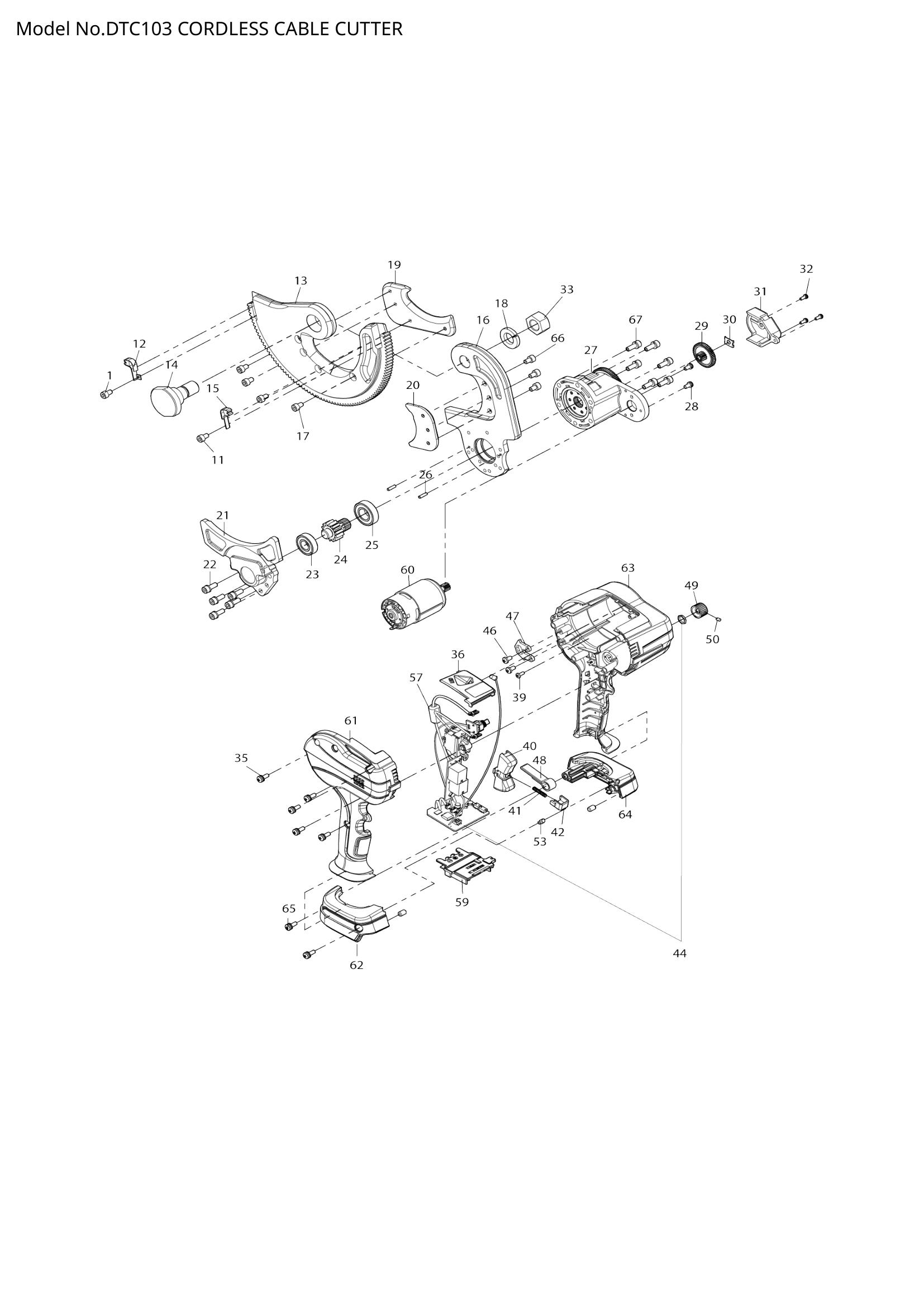

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | H.S. HEAD SCREW M3X3 | 1 | Not available in store | |||
| 011 | H.S. HEAD SCREW M3X3 | 1 | Not available in store | |||
| 012 | SPRING GEAR B ASSY | 1 | Not available in store | |||
| 013 | MOVING BLADE FRAME | 1 | Not available in store | |||
| 014 | SHOULDER SCREW M16 | 1 | Not available in store | |||
| 015 | SPRING GEAR A ASSY | 1 | Not available in store | |||
| 016 | STATIONARY BLADE FRAME | 1 | Not available in store | |||
| 017 | H.S. HEAD SCREW M5X8 | 4 | Not available in store | |||
| 018 | SPRING WASHER 16 | 1 | Not available in store | |||
| 019 | MOVING BLADE | 1 | Not available in store | |||
| 020 | STATIONARY BLADE | 1 | Not available in store | |||
| 021 | BEARING CASE | 1 | Not available in store | |||
| 022 | HEX. SOCKET HEAD BOLT M5X14 | 5 | Not available in store | |||
| 023 | BALL BEARING 6001VV | 1 | Not available in store | |||
| 024 | SPUR GEAR | 1 | Not available in store | |||
| 025 | BALL BEARING 6002VV | 1 | Not available in store | |||
| 026 | NEEDLE PIN 3X11.8 | 2 | Not available in store | |||
| 027 | GEAR CASE ASSY | 1 | Not available in store | |||
| 028 | PAN HEAD SCREW M4X8 | 2 | Not available in store | |||
| 029 | SPUR GEAR | 1 | Not available in store | |||
| 030 | GEAR PLATE | 1 | Not available in store | |||
| 031 | GEAR COVER | 1 | Not available in store | |||
| 032 | PAN HEAD SCREW M3X8 | 3 | Not available in store | |||
| 033 | HEX LOCK NUT M16 | 1 | Not available in store | |||
| 035 | PAN HEAD SCREW M4X12 | 5 | Not available in store | |||
| 036 | LED COVER ASSY | 1 | Not available in store | |||
| 039 | TAPPING SCREW 3X8 | 1 | Not available in store | |||
| 040 | SWITCH KNOB | 1 | Not available in store | |||
| 041 | COMPRESSION SPRING | 1 | Not available in store | |||
| 042 | LOCK OFF BUTTON | 1 | Not available in store | |||
| 044 | SWITCH CIRCUIT UNIT | 1 | Not available in store | |||
| 046 | TAPPING SCREW 4X12 | 2 | Not available in store | |||
| 047 | STRAP PLATE | 1 | Not available in store | |||
| 048 | STRAP RING | 1 | Not available in store | |||
| 049 | DIAL KNOB | 1 | Not available in store | |||
| 050 | HEX. SET SCREW M3X5 | 1 | Not available in store | |||
| 053 | CAP | 1 | Not available in store | |||
| 057 | FERRITE CORE | 1 | Not available in store | |||
| 059 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 060 | MOTOR ASSY | 1 | Not available in store | |||
| 061 | HOUSING ASSY | 1 | Not available in store | |||
| 062 | BATTERY CASE ASSY | 1 | Not available in store | |||
| 063 | HOUSING ASSY | 1 | Not available in store | |||
| 064 | BATTERY CASE ASSY | 1 | Not available in store | |||
| 065 | PAN HEAD SCREW M4X12 | 2 | Not available in store | |||
| 066 | H.S. HEAD SCREW M5X8 | 3 | Not available in store | |||
| 067 | HEX. SOCKET HEAD BOLT M5X14 | 6 | Not available in store | |||
