DSL801
DSL801

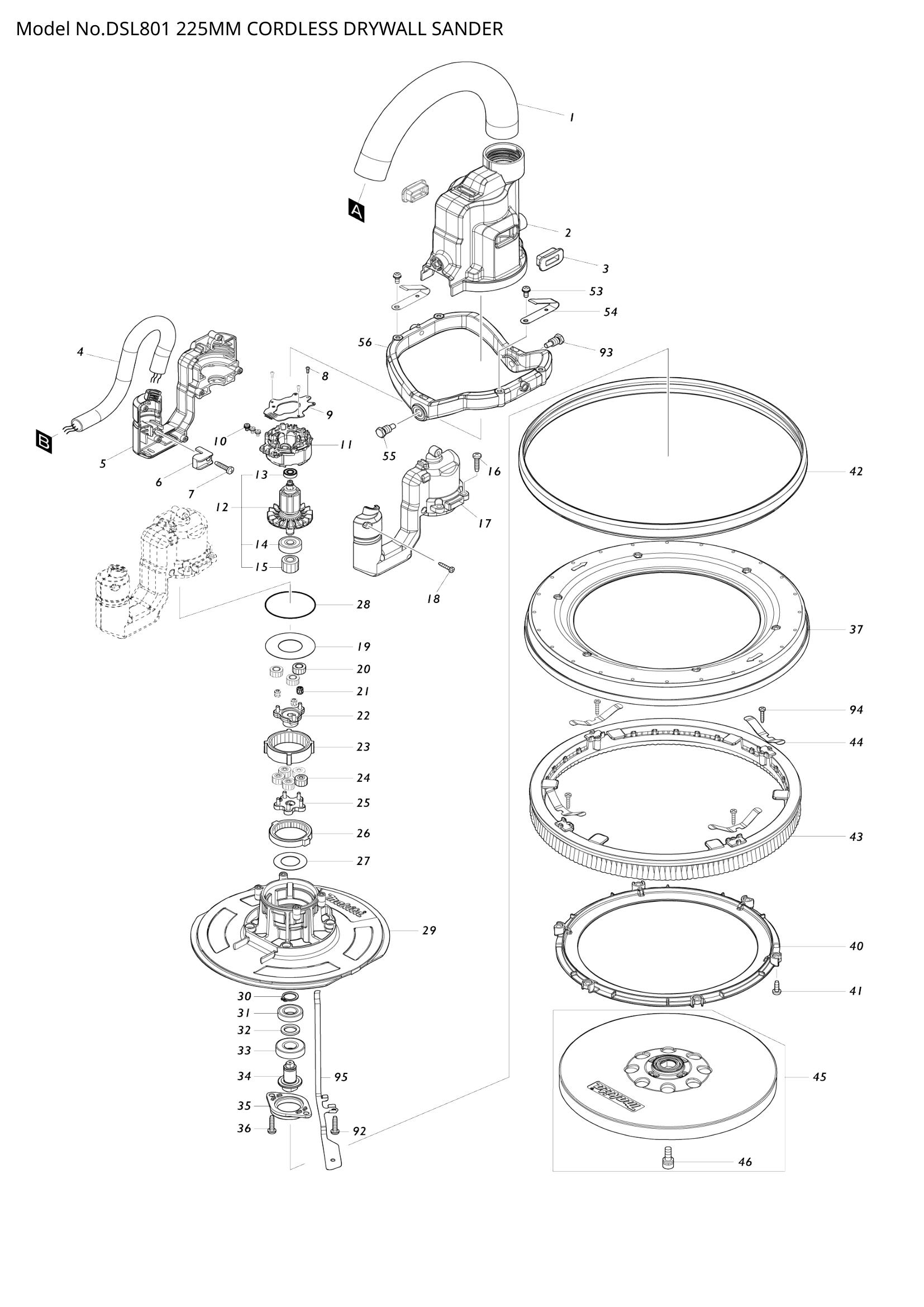

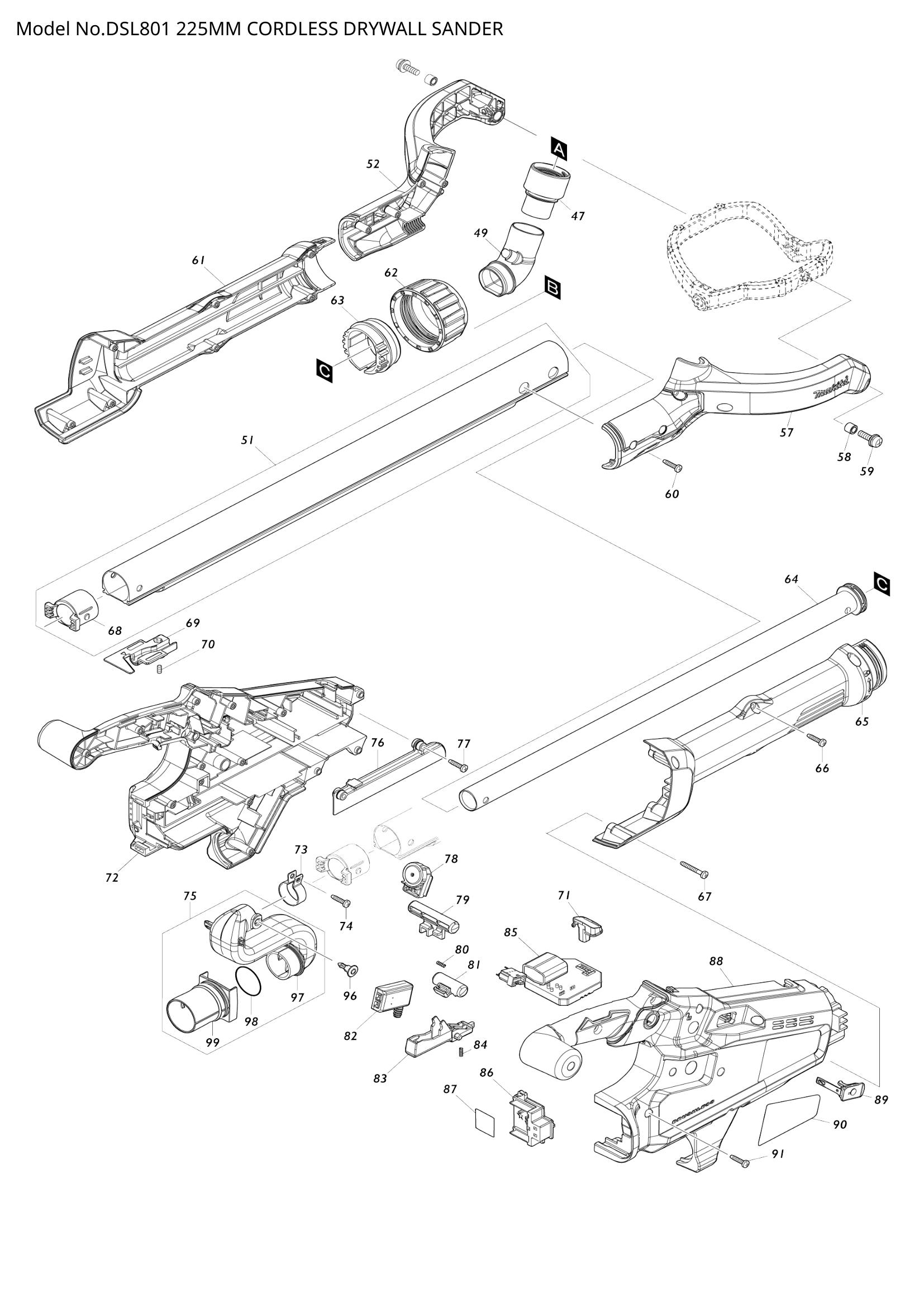

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | HOSE 28-0.25 | 1 | Not available in store | |||
| HOSE 28-0.25 | 1 | Not available in store | ||||
| 003 | RUBBER CAP | 2 | Not available in store | |||
| RUBBER CAP | 2 | Not available in store | ||||
| 005 | MOTOR HOUSING SET | 1 | Not available in store | |||
| MOTOR HOUSING SET | 1 | Not available in store | ||||
| 006 | 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | |
| 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | ||
| 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | ||
| 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | ||
| 007 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 008 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | ||
| 009 | 620B02-8 | CONTROLLER B | 1 | €18.59 | 1-4 weeks to ship | |
| 620B02-8 | CONTROLLER B | 1 | €18.59 | 1-4 weeks to ship | ||
| 010 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | ||
| 011 | STATOR | 1 | Not available in store | |||
| STATOR | 1 | Not available in store | ||||
| 012 | 519567-2 | ROTOR ASSY | 1 | €47.31 | 1-4 weeks to ship | |
| 519567-2 | ROTOR ASSY | 1 | €47.31 | 1-4 weeks to ship | ||
| 013 | BALL BEARING 695DDW | 1 | Not available in store | |||
| BALL BEARING 695DDW | 1 | Not available in store | ||||
| 014 | 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | ||
| 015 | SPUR GEAR 19 | 1 | Not available in store | |||
| SPUR GEAR 19 | 1 | Not available in store | ||||
| 016 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 017 | MOTOR HOUSING SET | 1 | Not available in store | |||
| MOTOR HOUSING SET | 1 | Not available in store | ||||
| 019 | FLAT WASHER 23 | 1 | Not available in store | |||
| FLAT WASHER 23 | 1 | Not available in store | ||||
| 020 | 226886-6 | SPUR GEAR 14 | 3 | €0.70 | 1-4 weeks to ship | |
| 226886-6 | SPUR GEAR 14 | 3 | €0.70 | 1-4 weeks to ship | ||
| 021 | 212131-5 | NEEDLE CAGE 307 | 3 | €1.81 | 1-4 weeks to ship | |
| 212131-5 | NEEDLE CAGE 307 | 3 | €1.81 | 1-4 weeks to ship | ||
| 022 | 140J82-1 | SPUR GEAR 17 COMPLETE | 1 | €1.39 | 1-4 weeks to ship | |
| 140J82-1 | SPUR GEAR 17 COMPLETE | 1 | €1.39 | 1-4 weeks to ship | ||
| 023 | 226890-5 | INTERNAL GEAR 47 | 1 | €3.20 | 1-4 weeks to ship | |
| 226890-5 | INTERNAL GEAR 47 | 1 | €3.20 | 1-4 weeks to ship | ||
| 024 | 226885-8 | SPUR GEAR 13 | 5 | €0.35 | 1-4 weeks to ship | |
| 226885-8 | SPUR GEAR 13 | 5 | €0.35 | 1-4 weeks to ship | ||
| 025 | 140J81-3 | CARRIER COMPLETE | 1 | €1.04 | 1-4 weeks to ship | |
| 140J81-3 | CARRIER COMPLETE | 1 | €1.04 | 1-4 weeks to ship | ||
| 026 | 226889-0 | INTERNAL GEAR 43 | 1 | €2.09 | 1-4 weeks to ship | |
| 226889-0 | INTERNAL GEAR 43 | 1 | €2.09 | 1-4 weeks to ship | ||
| 027 | 267789-5 | FLAT WASHER 18 | 1 | €0.42 | 1-4 weeks to ship | |
| 267789-5 | FLAT WASHER 18 | 1 | €0.42 | 1-4 weeks to ship | ||
| 028 | 213606-7 | O RING 48 | 1 | €0.83 | 1-4 weeks to ship | |
| 213606-7 | O RING 48 | 1 | €0.83 | 1-4 weeks to ship | ||
| 029 | GEAR HOUSING | 1 | Not available in store | |||
| GEAR HOUSING | 1 | Not available in store | ||||
| 030 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 031 | 211150-8 | BALL BEARING 6901ZZ | 1 | €5.57 | 1-4 weeks to ship | |
| 211150-8 | BALL BEARING 6901ZZ | 1 | €5.57 | 1-4 weeks to ship | ||
| 032 | 253746-9 | FLAT WASHER 12 | 1 | €2.78 | 1-4 weeks to ship | |
| 253746-9 | FLAT WASHER 12 | 1 | €2.78 | 1-4 weeks to ship | ||
| 033 | 210105-0 | BALL BEARING 6001LLU | 1 | €4.17 | 1-4 weeks to ship | |
| 210105-0 | BALL BEARING 6001LLU | 1 | €4.17 | 1-4 weeks to ship | ||
| 034 | 327318-7 | SPINDLE | 1 | €3.20 | 1-4 weeks to ship | |
| 327318-7 | SPINDLE | 1 | €3.20 | 1-4 weeks to ship | ||
| 035 | 319823-8 | BEARING RETAINER 47 | 1 | €2.78 | 1-4 weeks to ship | |
| 319823-8 | BEARING RETAINER 47 | 1 | €2.78 | 1-4 weeks to ship | ||
| 036 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 037 | COVER | 1 | Not available in store | |||
| COVER | 1 | Not available in store | ||||
| 040 | BRUSH STOPPER | 1 | Not available in store | |||
| BRUSH STOPPER | 1 | Not available in store | ||||
| 041 | 911123-8 | PAN HEAD SCREW M4X14 | 6 | €0.56 | 1-4 weeks to ship | |
| 911123-8 | PAN HEAD SCREW M4X14 | 6 | €0.56 | 1-4 weeks to ship | ||
| 042 | RUBBER GUARD | 1 | Not available in store | |||
| RUBBER GUARD | 1 | Not available in store | ||||
| 043 | BRUSH | 1 | Not available in store | |||
| BRUSH | 1 | Not available in store | ||||
| 044 | LEAF SPRING | 4 | Not available in store | |||
| LEAF SPRING | 4 | Not available in store | ||||
| 045 | PAD 210 SET | 1 | Not available in store | |||
| PAD 210 SET | 1 | Not available in store | ||||
| 046 | 922323-5 | HEX.SOCKET HEAD BOLT M6X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 922323-5 | HEX.SOCKET HEAD BOLT M6X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 047 | HOSE CONNECTOR | 1 | Not available in store | |||
| HOSE CONNECTOR | 1 | Not available in store | ||||
| 049 | JOINT | 1 | Not available in store | |||
| JOINT | 1 | Not available in store | ||||
| 051 | 140N60-5 | PIPE A COMPLETE | 1 | €55.66 | 1-4 weeks to ship | |
| 140N60-5 | PIPE A COMPLETE | 1 | €55.66 | 1-4 weeks to ship | ||
| 052 | ARM SET | 1 | Not available in store | |||
| ARM SET | 1 | Not available in store | ||||
| 053 | 911113-1 | PAN HEAD SCREW M4X10 WITH | 2 | €0.56 | 1-4 weeks to ship | |
| 911113-1 | PAN HEAD SCREW M4X10 WITH | 2 | €0.56 | 1-4 weeks to ship | ||
| 054 | LEAF SPRING | 2 | Not available in store | |||
| LEAF SPRING | 2 | Not available in store | ||||
| 056 | FRAME | 1 | Not available in store | |||
| FRAME | 1 | Not available in store | ||||
| 057 | ARM SET | 1 | Not available in store | |||
| ARM SET | 1 | Not available in store | ||||
| 058 | 262561-0 | SLEEVE 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 262561-0 | SLEEVE 6 | 2 | €0.56 | 1-4 weeks to ship | ||
| 059 | 911334-5 | PAN HEAD SCREW M6X20 | 2 | €2.09 | 1-4 weeks to ship | |
| 911334-5 | PAN HEAD SCREW M6X20 | 2 | €2.09 | 1-4 weeks to ship | ||
| 060 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 061 | 183L78-1 | PIPE HOUSING SET | 1 | €17.99 | 1-4 weeks to ship | |
| 183L78-1 | PIPE HOUSING SET | 1 | €17.99 | 1-4 weeks to ship | ||
| 062 | LOCK RING | 1 | Not available in store | |||
| LOCK RING | 1 | Not available in store | ||||
| 063 | LOCK SLEEVE COMPLETE | 1 | Not available in store | |||
| LOCK SLEEVE COMPLETE | 1 | Not available in store | ||||
| 064 | 140L61-1 | PIPE B COMPLETE | 1 | €22.17 | 1-4 weeks to ship | |
| 140L61-1 | PIPE B COMPLETE | 1 | €22.17 | 1-4 weeks to ship | ||
| 065 | 183L78-1 | PIPE HOUSING SET | 1 | €17.99 | 1-4 weeks to ship | |
| 183L78-1 | PIPE HOUSING SET | 1 | €17.99 | 1-4 weeks to ship | ||
| 066 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 067 | 266050-7 | TAPPING SCREW 4X30 | 3 | €0.56 | 1-4 weeks to ship | |
| 266050-7 | TAPPING SCREW 4X30 | 3 | €0.56 | 1-4 weeks to ship | ||
| 068 | PIPE STOPPER A | 1 | Not available in store | |||
| PIPE STOPPER A | 1 | Not available in store | ||||
| 069 | CORD HOLDER | 1 | Not available in store | |||
| CORD HOLDER | 1 | Not available in store | ||||
| 070 | 913106-4 | SET SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 913106-4 | SET SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 071 | INDICATOR PANEL COMPLETE | 1 | Not available in store | |||
| INDICATOR PANEL COMPLETE | 1 | Not available in store | ||||
| 072 | 183L75-7 | HANDLE SET | 1 | €70.97 | 1-4 weeks to ship | |
| 183L75-7 | HANDLE SET | 1 | €70.97 | 1-4 weeks to ship | ||
| 073 | 346248-3 | CLAMP 24 | 1 | €0.83 | 1-4 weeks to ship | |
| 346248-3 | CLAMP 24 | 1 | €0.83 | 1-4 weeks to ship | ||
| 074 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 075 | DUST NOZZLE ASSY | 1 | Not available in store | |||
| DUST NOZZLE ASSY | 1 | Not available in store | ||||
| 076 | CORD COVER | 1 | Not available in store | |||
| CORD COVER | 1 | Not available in store | ||||
| 077 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 078 | 620796-3 | DIAL CIRCUIT | 1 | €22.54 | 1-4 weeks to ship | |
| 620796-3 | DIAL CIRCUIT | 1 | €22.54 | 1-4 weeks to ship | ||
| 620796-3 | DIAL CIRCUIT | 1 | €22.54 | 1-4 weeks to ship | ||
| 620796-3 | DIAL CIRCUIT | 1 | €22.54 | 1-4 weeks to ship | ||
| 079 | LOCK OFF BUTTON | 1 | Not available in store | |||
| LOCK OFF BUTTON | 1 | Not available in store | ||||
| 080 | 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 081 | LOCK ON BUTTON | 1 | Not available in store | |||
| LOCK ON BUTTON | 1 | Not available in store | ||||
| 082 | 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | |
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 083 | SWITCH LEVER | 1 | Not available in store | |||
| SWITCH LEVER | 1 | Not available in store | ||||
| 084 | 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 085 | CONTROLLER | 1 | Not available in store | |||
| CONTROLLER | 1 | Not available in store | ||||
| 086 | 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | |
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 087 | DSL801 SERIAL NO. LABEL | 1 | Not available in store | |||
| DSL801 SERIAL NO. LABEL | 1 | Not available in store | ||||
| 088 | 183L75-7 | HANDLE SET | 1 | €70.97 | 1-4 weeks to ship | |
| 183L75-7 | HANDLE SET | 1 | €70.97 | 1-4 weeks to ship | ||
| 089 | CAP COMPLETE | 1 | Not available in store | |||
| CAP COMPLETE | 1 | Not available in store | ||||
| 090 | DSL801 NAME PLATE | 1 | Not available in store | |||
| DSL801 NAME PLATE | 1 | Not available in store | ||||
| 091 | 265995-6 | TAPPING SCREW 4X18 | 10 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 10 | €0.56 | 1-4 weeks to ship | ||
| 092 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 093 | HEX. BOLT M8X22 | 1 | Not available in store | |||
| HEX. BOLT M8X22 | 1 | Not available in store | ||||
| 095 | EARTH PLATE A | 1 | Not available in store | |||
| EARTH PLATE A | 1 | Not available in store | ||||
| 096 | RIVET 7 | 1 | Not available in store | |||
| RIVET 7 | 1 | Not available in store | ||||
