DSC250
DSC250

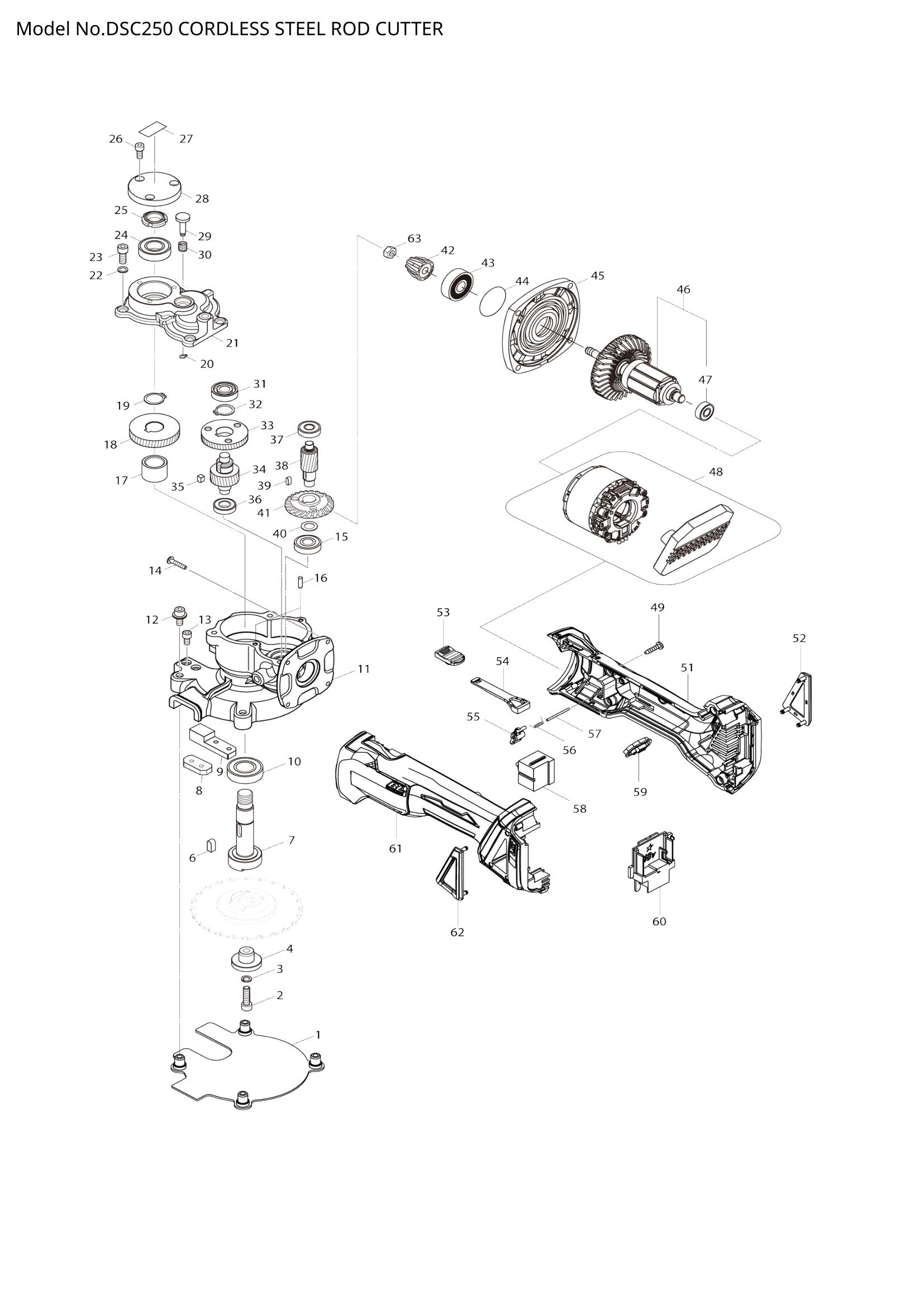

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | SC09001030 | TIPPED SAW COVER | 1 | €181.59 | 1-4 weeks to ship | |
| 002 | HEX. SOCKET HEAD BOLT M6X22 | 1 | Not available in store | |||
| 003 | SC07651310 | SPRING WASHER 6 | 1 | €1.11 | 1-4 weeks to ship | |
| 006 | SC03701230 | KEY | 1 | €5.29 | 1-4 weeks to ship | |
| 007 | SC03510810 | SPINDLE | 1 | €212.62 | 1-4 weeks to ship | |
| 008 | SC03510830 | MATERIAL GUIDE B | 1 | €38.96 | 1-4 weeks to ship | |
| 009 | SC03510880 | MATERIAL GUIDE A | 1 | €38.96 | 1-4 weeks to ship | |
| 010 | SC07101340 | BALL BEARING 6003VV | 1 | €25.88 | 1-4 weeks to ship | |
| 011 | SC03252320 | GEAR CASE | 1 | €959.58 | 1-4 weeks to ship | |
| 012 | SC07541020 | GT CAP SCREW M6X14 | 4 | €3.62 | 1-4 weeks to ship | |
| 014 | SC07554120 | TAPPING SCREW M4X30 | 4 | €1.11 | 1-4 weeks to ship | |
| 015 | SC07101010 | BALL BEARING 6000Z | 1 | €13.78 | 1-4 weeks to ship | |
| 016 | SC06601720 | PIN 4X20 | 2 | €2.64 | 1-4 weeks to ship | |
| 017 | SC03510860 | GEAR29 COLLAR | 1 | €14.47 | 1-4 weeks to ship | |
| 018 | SC03607830 | GEAR29 | 1 | €88.22 | 1-4 weeks to ship | |
| 019 | SC07410100 | CIRCLIP S17 | 1 | €1.25 | 1-4 weeks to ship | |
| 020 | SC07411250 | CIRCLIP STW5 | 1 | €1.11 | 1-4 weeks to ship | |
| 021 | SC03252330 | GEARCASE COVER | 1 | €290.55 | 1-4 weeks to ship | |
| 022 | SC00000066 | WASHER 6 | 4 | €1.11 | 1-4 weeks to ship | |
| 023 | SC07513020 | BOLT HB6X15 | 4 | €1.11 | 1-4 weeks to ship | |
| 024 | SC07000050 | BALL BEARING 6002VV | 1 | €25.88 | 1-4 weeks to ship | |
| 025 | SC07700240 | FINE U NUT M15X1 | 1 | €46.75 | 1-4 weeks to ship | |
| 027 | CAUTION LABEL | 1 | Not available in store | |||
| 028 | SC03252370 | SPINDLE COVER | 1 | €51.90 | 1-4 weeks to ship | |
| 029 | SC03510840 | LOCK BUTTON | 1 | €72.64 | 1-4 weeks to ship | |
| 030 | SC04008350 | LOCK SPRING | 1 | €7.24 | 1-4 weeks to ship | |
| 031 | SC07101010 | BALL BEARING 6000Z | 1 | €13.78 | 1-4 weeks to ship | |
| 032 | SC00000378 | CIRCLIP S16 | 1 | €1.25 | 1-4 weeks to ship | |
| 033 | SC03607810 | GEAR41 | 1 | €89.47 | 1-4 weeks to ship | |
| 034 | SC03607820 | GEAR16 | 1 | €173.80 | 1-4 weeks to ship | |
| 035 | SC03701660 | GEAR16 KEY | 1 | €2.64 | 1-4 weeks to ship | |
| 036 | SC07104010 | BALL BEARING 6900ZZ | 1 | €25.88 | 1-4 weeks to ship | |
| 037 | SC07000040 | BALL BEARING 608VV | 1 | €15.58 | 1-4 weeks to ship | |
| 038 | SC03607800 | GEAR13 | 1 | €166.01 | 1-4 weeks to ship | |
| 039 | SC03701670 | GEAR KEY | 1 | €2.64 | 1-4 weeks to ship | |
| 040 | SC03301660 | GEAR13 WASHER | 1 | €12.94 | 1-4 weeks to ship | |
| 043 | 210042-8 | BALL BEARING 629LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 044 | 213445-5 | O-RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 319214-3 | GEAR HOUSING COVER | 1 | €5.43 | 1-4 weeks to ship | |
| 049 | 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 051 | 187997-1 | MOTOR HOUSING SET | 1 | €13.29 | 1-4 weeks to ship | |
| 052 | 455450-8 | DUST COVER R | 1 | €3.90 | 1-4 weeks to ship | |
| 455450-8 | DUST COVER R | 1 | €3.90 | 1-4 weeks to ship | ||
| 053 | 455447-7 | SWITCH KNOB | 1 | €0.28 | 1-4 weeks to ship | |
| 455447-7 | SWITCH KNOB | 1 | €0.28 | 1-4 weeks to ship | ||
| 054 | 455446-9 | SWITCH LEVER | 1 | €0.28 | 1-4 weeks to ship | |
| 455446-9 | SWITCH LEVER | 1 | €0.28 | 1-4 weeks to ship | ||
| 055 | 455448-5 | LEVER | 1 | €0.28 | 1-4 weeks to ship | |
| 455448-5 | LEVER | 1 | €0.28 | 1-4 weeks to ship | ||
| 056 | 231679-8 | TORSION SPRING 2 | 1 | €0.14 | 1-4 weeks to ship | |
| 057 | 268330-7 | PIN 2 | 1 | €0.28 | 1-4 weeks to ship | |
| 059 | 142901-7 | INDICATOR PANEL COMPLETE | 1 | €0.83 | 1-4 weeks to ship | |
| 060 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 061 | 187997-1 | MOTOR HOUSING SET | 1 | €13.29 | 1-4 weeks to ship | |
| 062 | 455449-3 | DUST COVER L | 1 | €3.90 | 1-4 weeks to ship | |
| 455449-3 | DUST COVER L | 1 | €3.90 | 1-4 weeks to ship | ||
| 063 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | CONTROLLER S | 1 | Not available in store | |||
| 065 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
