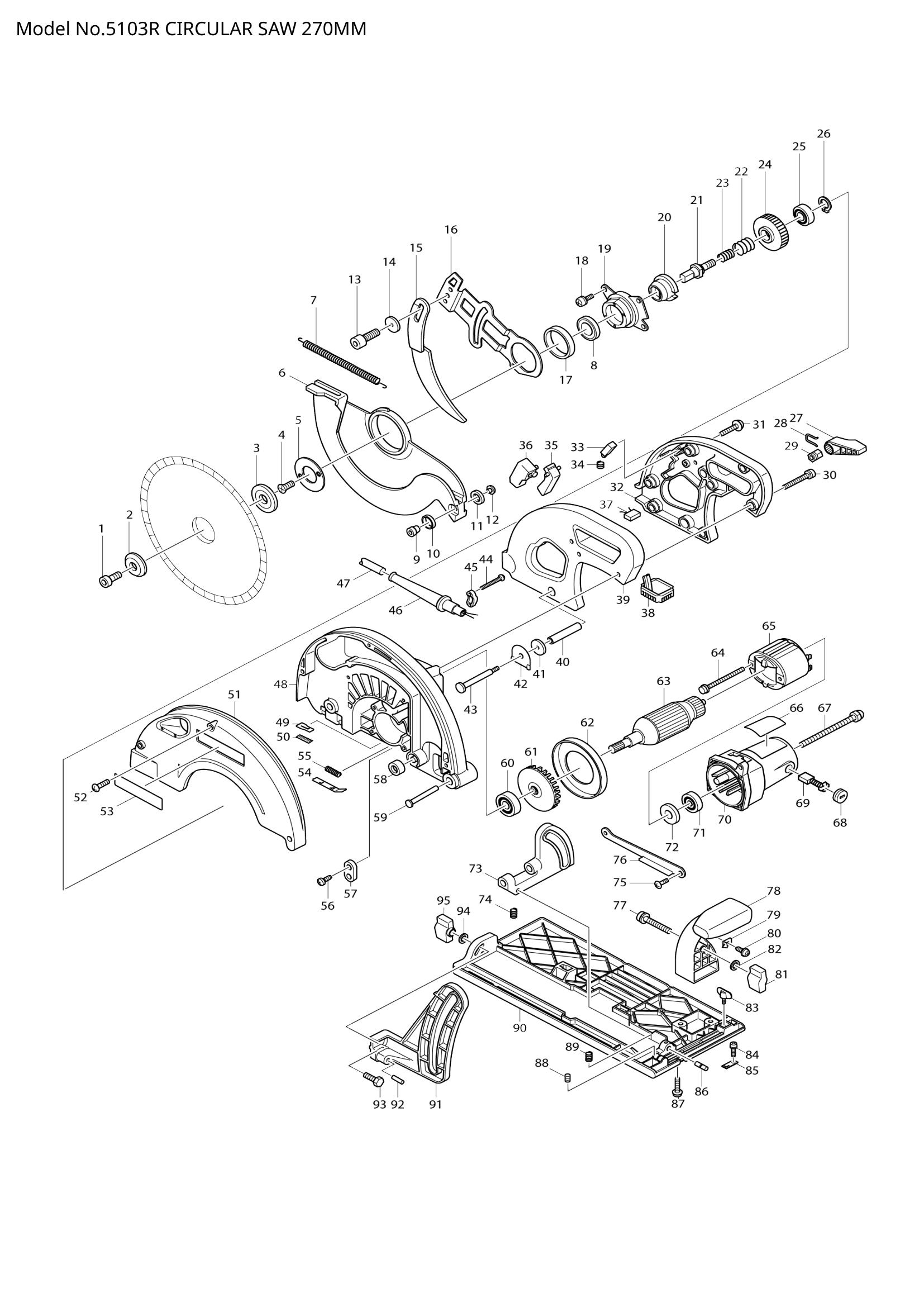

5103R
5103R
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266083-2 | HEX. SOCKET HEAD BOLT M10X2 | 1 | €11.13 | 1-4 weeks to ship | |
| 002 | 224325-0 | OUTER FLANGE 45 | 1 | €13.92 | 1-4 weeks to ship | |
| 003 | 224326-8 | INNER FLANGE 45 | 1 | €13.92 | 1-4 weeks to ship | |
| 004 | 912222-9 | COUNTERSUNK HEAD SCREW M5 | 2 | €0.56 | 1-4 weeks to ship | |
| 005 | 285681-3 | BEARING RETAINER 34-62 | 1 | €4.17 | 1-4 weeks to ship | |
| 008 | 211278-2 | BALL BEARING 6203DDW | 1 | €11.13 | 1-4 weeks to ship | |
| 009 | 415437-2 | ROLLER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 415438-0 | ROLLER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 415438-0 | ROLLER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 415437-2 | ROLLER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 922422-3 | HEX. SOCKET HEAD BOLT M8X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 344303-5 | THICKNESS RING | 1 | €4.17 | 1-4 weeks to ship | |
| 018 | 911223-4 | PAN HEAD SCREW M5X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 911223-4 | PAN HEAD SCREW M5X16 | 4 | €0.56 | 1-4 weeks to ship | ||
| 019 | 316709-7 | BEARING BOX | 1 | €22.26 | 1-4 weeks to ship | |
| 020 | 322830-2 | LOCK SLEEVE | 1 | €33.40 | 1-4 weeks to ship | |
| 021 | 322827-1 | SPINDLE | 1 | €33.40 | 1-4 weeks to ship | |
| 022 | 231968-1 | LOCK SPRING 27 | 1 | €19.48 | 1-4 weeks to ship | |
| 023 | 231969-9 | LOCK SPRING 20 | 1 | €11.13 | 1-4 weeks to ship | |
| 024 | 226452-9 | HELICAL GEAR 39 | 1 | €30.61 | 1-4 weeks to ship | |
| 025 | 211104-5 | BALL BEARING 6001 | 1 | €8.35 | 1-4 weeks to ship | |
| 026 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 272230-5 | LEVER 54 | 1 | €0.83 | 1-4 weeks to ship | |
| 028 | 231955-0 | RING SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 252134-7 | HEX. NUT M8 | 1 | €1.67 | 1-4 weeks to ship | |
| 030 | 911263-2 | PAN HEAD SCREW M5X40 | 3 | €0.56 | 1-4 weeks to ship | |
| 911263-2 | PAN HEAD SCREW M5X40 | 3 | €0.56 | 1-4 weeks to ship | ||
| 031 | 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 032 | 182773-8 | HANDLE SET | 1 | €44.53 | 1-4 weeks to ship | |
| 033 | 415440-3 | LOCK-OFF BUTTON | 1 | €1.11 | 1-4 weeks to ship | |
| 034 | 231230-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 415439-8 | SWITCH LEVER | 1 | €1.67 | 1-4 weeks to ship | |
| 036 | 651923-1 | SWITCH TG70B | 1 | €16.70 | 1-4 weeks to ship | |
| 037 | 645105-5 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 645105-5 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | ||
| 039 | 182773-8 | HANDLE SET | 1 | €44.53 | 1-4 weeks to ship | |
| 040 | 331469-0 | PIPE 9 | 1 | €2.78 | 1-4 weeks to ship | |
| 042 | 232151-3 | LEAF SPRING | 1 | €2.78 | 1-4 weeks to ship | |
| 043 | 266019-1 | CAP SQUARE NECK BOLT M8X98 | 1 | €1.67 | 1-4 weeks to ship | |
| 044 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 049 | 443098-8 | FELT | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 344263-1 | PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 052 | 266036-1 | TAPPING SCREW BIND CT 5X20 | 3 | €0.56 | 1-4 weeks to ship | |
| 053 | 819084-5 | MAKITA LABEL | 1 | €2.78 | 1-4 weeks to ship | |
| 054 | 344261-5 | SHAFT LOCK | 1 | €4.17 | 1-4 weeks to ship | |
| 056 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 057 | 687053-2 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 058 | 262007-6 | RUBBER RING 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 059 | 268008-2 | PIN 10 | 1 | €2.78 | 1-4 weeks to ship | |
| 061 | 241889-9 | FAN 74 | 1 | €8.35 | 1-4 weeks to ship | |
| 062 | 415768-9 | BAFFLE PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 064 | 911944-8 | PAN HEAD SCREW M5X80 | 2 | €2.92 | 1-4 weeks to ship | |
| 066 | 857935-4 | NAME PLATE 5103R | 1 | €2.78 | 1-4 weeks to ship | |
| 067 | 911288-6 | PAN HEAD SCREW M5X65 | 4 | €0.56 | 1-4 weeks to ship | |
| 068 | 643700-5 | BRUSH HOLDER CAP 7-18 | 2 | €1.11 | 1-4 weeks to ship | |
| 072 | 681633-6 | INSULATION WASHER | 1 | €1.67 | 1-4 weeks to ship | |
| 074 | 266039-5 | H.S.SET SCREW(FLAT POINT) M6X | 1 | €0.83 | 1-4 weeks to ship | |
| 075 | 265028-7 | + PAN HEAD SCREW M4X11 | 1 | €0.83 | 1-4 weeks to ship | |
| 076 | 152511-2 | LINK COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 077 | 921477-5 | HEX. BOLT M8X55 | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | ANGULAR PLATE GUIDE | 1 | Not available in store | |||
| 079 | 816128-2 | POINTER | 1 | €0.56 | 1-4 weeks to ship | |
| 081 | 252626-6 | WING NUT | 1 | €2.78 | 1-4 weeks to ship | |
| 082 | 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 083 | 265701-9 | THUMB SCREW M6X14 | 1 | €1.67 | 1-4 weeks to ship | |
| 085 | 415433-0 | TOP GUIDE | 1 | €2.09 | 1-4 weeks to ship | |
| 086 | 256231-1 | PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 087 | 266021-4 | TAPPING SCREW 5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 088 | 266039-5 | H.S.SET SCREW(FLAT POINT) M6X | 1 | €0.83 | 1-4 weeks to ship | |
| 089 | 265993-0 | H.S.SET SCREW(CUP POINT)M4X5 | 1 | €0.56 | 1-4 weeks to ship | |
| 092 | 951210-1 | SPRING PIN 6-20 | 1 | €0.56 | 1-4 weeks to ship | |
| 093 | 921342-8 | HEX. BOLT M6X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 094 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 095 | 252624-0 | WING NUT M6 | 1 | €1.67 | 1-4 weeks to ship | |
