DSC162
DSC162

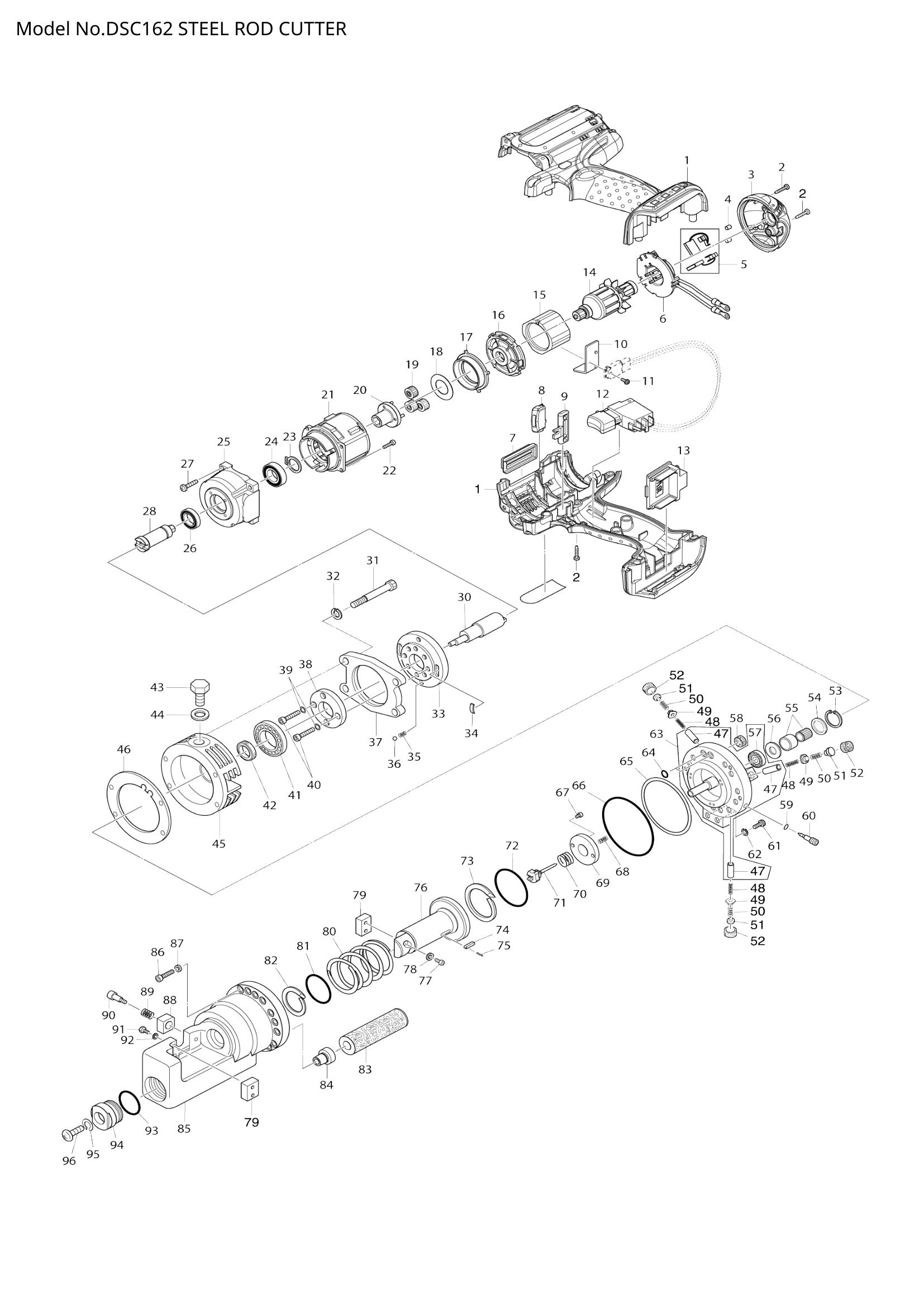

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 10 | €0.56 | 1-4 weeks to ship | |
| 003 | 419642-3 | REAR COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 004 | 263032-0 | RUBBER PIN 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 006 | 638849-4 | BRUSH HOLDER COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 007 | 451163-9 | COVER | 1 | €3.44 | 1-4 weeks to ship | |
| 008 | 687216-0 | LENS CASE | 1 | €1.11 | 1-4 weeks to ship | |
| 009 | 451162-1 | LOCK LEVER | 1 | €5.15 | 1-4 weeks to ship | |
| 010 | 689145-3 | HEATSINK | 1 | €0.56 | 1-4 weeks to ship | |
| 689145-3 | HEATSINK | 1 | €0.56 | 1-4 weeks to ship | ||
| 012 | 650653-1 | SWITCH TG553FSB-4B | 1 | €33.40 | 1-4 weeks to ship | |
| 013 | 644808-8 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 014 | 619165-3 | ARMATURE | 1 | €22.26 | 1-4 weeks to ship | |
| 016 | 450386-6 | MOTOR BRACKET | 1 | €0.97 | 1-4 weeks to ship | |
| 017 | 227129-9 | INTERNAL GEAR 46 | 1 | €2.09 | 1-4 weeks to ship | |
| 018 | 267789-5 | FLAT WASHER 18 | 1 | €0.42 | 1-4 weeks to ship | |
| 019 | 154468-3 | SPUR GEAR 16 COMPLETE | 3 | €0.60 | 1-4 weeks to ship | |
| 020 | 141744-4 | CARRIER COMPLETE | 1 | €6.30 | 1-4 weeks to ship | |
| 021 | 419252-6 | GEAR CASE | 1 | €3.34 | 1-4 weeks to ship | |
| 022 | 911017-7 | PAN HEAD SCREW M3X12 | 4 | €0.83 | 1-4 weeks to ship | |
| 023 | 961055-9 | RETAINING RING S-15 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 211234-2 | BALL BEARING 6902LLB | 1 | €11.13 | 1-4 weeks to ship | |
| 025 | 318455-8 | GEAR CASE B | 1 | €42.90 | 1-4 weeks to ship | |
| 026 | 266045-0 | TAPPING SCREW 4X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 027 | 211233-4 | BALL BEARING 6802LLB | 1 | €13.92 | 1-4 weeks to ship | |
| 028 | 326213-8 | SPINDLE | 1 | €21.67 | 1-4 weeks to ship | |
| 030 | SC03501140 | ECCENTRIC SHAFT | 1 | €94.62 | 1-4 weeks to ship | |
| 031 | SC07512110 | BOLT HB5X50 | 4 | €1.39 | 1-4 weeks to ship | |
| 032 | 942101-7 | SPRING WASHER 5 | 4 | €0.56 | 1-4 weeks to ship | |
| 942101-7 | SPRING WASHER 5 | 4 | €0.56 | 1-4 weeks to ship | ||
| 033 | SC03222700 | FLANGE SET PLATE | 1 | €64.01 | 1-4 weeks to ship | |
| 034 | SC04007620 | LEAF SPRING | 2 | €16.70 | 1-4 weeks to ship | |
| 035 | SC04007430 | POSITION SPRING | 2 | €8.35 | 1-4 weeks to ship | |
| 036 | SC07900010 | STEEL BALL S4 | 2 | €1.11 | 1-4 weeks to ship | |
| 037 | SC03221200 | INTERMEDIATE HOUSING | 1 | €64.01 | 1-4 weeks to ship | |
| 038 | SC03251180 | FLANGE | 1 | €58.44 | 1-4 weeks to ship | |
| 039 | SC00000068 | FLAT WASHER 4 | 4 | €1.11 | 1-4 weeks to ship | |
| 040 | SC07511060 | BOLT HB4X22 | 4 | €1.11 | 1-4 weeks to ship | |
| 041 | SC00000050 | BALL BEARING 6002RU | 1 | €25.05 | 1-4 weeks to ship | |
| 042 | SC00000484 | OIL SEAL MSH15257 | 1 | €16.70 | 1-4 weeks to ship | |
| 043 | SC00000061 | HEX. BOLT 10X15 | 1 | €4.45 | 1-4 weeks to ship | |
| 044 | SC00000489 | SEAL WASHER | 1 | €5.57 | 1-4 weeks to ship | |
| 045 | SC03212300 | BEARING HOUSING | 1 | €311.70 | 1-4 weeks to ship | |
| 046 | SC04601440 | LINER B | 1 | €5.57 | 1-4 weeks to ship | |
| 048 | SC04003020 | PISTON RETURN SPRING | 3 | €2.78 | 1-4 weeks to ship | |
| 049 | SC00000149 | CHECK VALVE | 3 | €38.92 | 1-4 weeks to ship | |
| 050 | SC00000468 | SPRING #43449N2 | 3 | €2.78 | 1-4 weeks to ship | |
| 051 | SC06505590 | O RING S-8 | 3 | €2.50 | 1-4 weeks to ship | |
| 052 | SC03500540 | METAL PACKING | 3 | €9.74 | 1-4 weeks to ship | |
| 053 | SC00000487 | STOP RING H19 | 1 | €1.39 | 1-4 weeks to ship | |
| 054 | SC00000467 | NEEDLE BEARING HOLDER B T45 | 1 | €5.57 | 1-4 weeks to ship | |
| 055 | SC00000466 | NEEDLE BEARING #RNAF81510 | 1 | €33.40 | 1-4 weeks to ship | |
| 056 | NEEDLE BEARING HOLDER A T45 | 1 | Not available in store | |||
| 057 | 211007-3 | BALL BEARING 625ZZ | 1 | €5.57 | 1-4 weeks to ship | |
| 058 | MAGNET | 2 | Not available in store | |||
| 059 | SC06505300 | O RING S4 | 1 | €2.78 | 1-4 weeks to ship | |
| 060 | SC03501420 | RETURN VALVE | 1 | €22.26 | 1-4 weeks to ship | |
| 061 | SC00000097 | HEX.SOCKET HEAD BOLT M6X20 | 2 | €1.39 | 1-4 weeks to ship | |
| 062 | SC00000066 | WASHER 6 | 2 | €1.11 | 1-4 weeks to ship | |
| 064 | SC06505010 | O RING P6 | 2 | €2.78 | 1-4 weeks to ship | |
| 065 | SC06503240 | BACK-UP RING G55 | 1 | €27.83 | 1-4 weeks to ship | |
| 066 | SC06505180 | O RING G55 | 1 | €4.17 | 1-4 weeks to ship | |
| 067 | 922102-1 | HEX. SOCKET HEAD BOLT M4X6 | 2 | €0.56 | 1-4 weeks to ship | |
| 068 | SC00000023 | RELEASE VALVE SPRING | 1 | €5.57 | 1-4 weeks to ship | |
| 069 | SC00000481 | STOPPER PLATE #45423 | 1 | €58.44 | 1-4 weeks to ship | |
| 070 | SC00000032 | VALVE RETURN SPRING | 1 | €5.57 | 1-4 weeks to ship | |
| 071 | SC00000462 | RELEASE VALVE #T45461 | 1 | €58.44 | 1-4 weeks to ship | |
| 072 | SC06505280 | O RING P46 | 1 | €4.17 | 1-4 weeks to ship | |
| 073 | SC06503230 | BACK-UP RING P46 | 1 | €19.48 | 1-4 weeks to ship | |
| 074 | SC00000480 | KEY T45420 | 1 | €11.13 | 1-4 weeks to ship | |
| 075 | SPRING PIN 2.5X10 | 1 | Not available in store | |||
| 076 | SC03113600 | CUTTER ROD | 1 | €695.75 | 1-4 weeks to ship | |
| 078 | SC00000067 | WASHER 5 | 2 | €1.39 | 1-4 weeks to ship | |
| 079 | SC09002470 | CUTTER BLADE SET | 1 | €274.54 | 1-4 weeks to ship | |
| 080 | SC04000320 | RETURN SPRING FOR CUTTER RO | 1 | €41.51 | 1-4 weeks to ship | |
| 081 | SC06505320 | O RING P26 | 1 | €11.13 | 1-4 weeks to ship | |
| 082 | SC06503190 | BACK-UP RING P26 | 1 | €8.35 | 1-4 weeks to ship | |
| 084 | SC00000029 | BUSH | 1 | €20.78 | 1-4 weeks to ship | |
| 085 | SC03104000 | CUTTER HEAD | 1 | €1,043.90 | 1-4 weeks to ship | |
| 086 | 922342-1 | HEX. SOCKET HEAD BOLT M6X25 | 12 | €0.56 | 1-4 weeks to ship | |
| 087 | SC00000066 | WASHER 6 | 12 | €1.11 | 1-4 weeks to ship | |
| 088 | SC03503890 | STOPPER | 1 | €36.18 | 1-4 weeks to ship | |
| 089 | SC00000469 | SPRING #T45470 | 1 | €2.78 | 1-4 weeks to ship | |
| 090 | SC03500990 | BOLT | 1 | €13.92 | 1-4 weeks to ship | |
| 091 | SC00000098 | HEX. SOCKET HEAD BOLT 5X15 | 2 | €1.39 | 1-4 weeks to ship | |
| 092 | SC00000067 | WASHER 5 | 2 | €1.39 | 1-4 weeks to ship | |
| 093 | SC06505310 | O RING P22A | 1 | €4.45 | 1-4 weeks to ship | |
| 094 | SC03501400 | BUSH HOLDER | 1 | €44.53 | 1-4 weeks to ship | |
| 095 | 942201-3 | SPRING WASHER 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 096 | SPECIAL PAN HEAD SCREW M8X2 | 1 | Not available in store | |||
