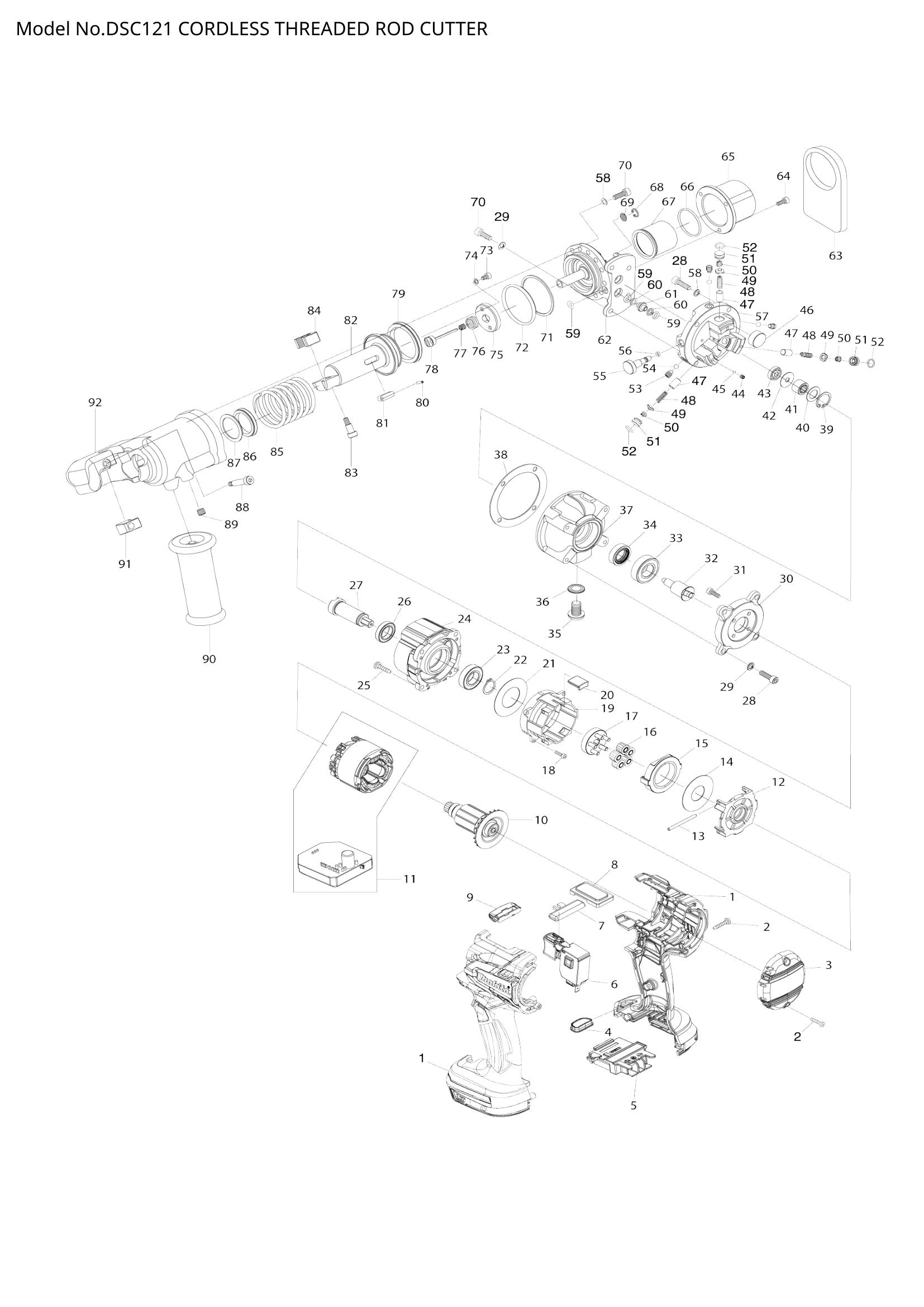

DSC121
DSC121
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | HOUSING SET | 1 | Not available in store | |||
| 002 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 9 | €0.56 | 1-4 weeks to ship | |
| 003 | 455011-4 | REAR COVER | 1 | €1.81 | 1-4 weeks to ship | |
| 455011-4 | REAR COVER | 1 | €1.81 | 1-4 weeks to ship | ||
| 004 | 142263-3 | INDICATOR PANEL COMPLETE | 1 | €0.83 | 1-4 weeks to ship | |
| 005 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 006 | 650710-5 | SWITCH C3JW-4B | 1 | €17.81 | 1-4 weeks to ship | |
| 650710-5 | SWITCH C3JW-4B | 1 | €17.81 | 1-4 weeks to ship | ||
| 008 | COVER | 1 | Not available in store | |||
| 009 | 620283-2 | LED CIRCUIT | 1 | €11.13 | 1-4 weeks to ship | |
| 620283-2 | LED CIRCUIT | 1 | €11.13 | 1-4 weeks to ship | ||
| 010 | 619336-2 | ROTOR | 1 | €75.14 | 1-4 weeks to ship | |
| 619336-2 | ROTOR | 1 | €75.14 | 1-4 weeks to ship | ||
| 011 | 629116-8 | STATOR COMPLETE | 1 | €104.36 | 1-4 weeks to ship | |
| 012 | MOTOR BRACKET | 1 | Not available in store | |||
| 013 | ROD 3 | 2 | Not available in store | |||
| 014 | FLAT WASHER 18 | 1 | Not available in store | |||
| 015 | INTERNAL SPUR GEAR 41 | 1 | Not available in store | |||
| 016 | SPUR GEAR 13 | 5 | Not available in store | |||
| 017 | CARRIER COMPLETE | 1 | Not available in store | |||
| 018 | 911017-7 | PAN HEAD SCREW M3X12 | 4 | €0.83 | 1-4 weeks to ship | |
| 019 | GEAR CASE | 1 | Not available in store | |||
| 020 | RUBBER SEAL | 1 | Not available in store | |||
| 021 | 253888-9 | FLAT WASHER 25 | 1 | €2.78 | 1-4 weeks to ship | |
| 022 | 961055-9 | RETAINING RING S-15 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 211234-2 | BALL BEARING 6902LLB | 1 | €11.13 | 1-4 weeks to ship | |
| 024 | GEAR HOUSING | 1 | Not available in store | |||
| 025 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 026 | 211233-4 | BALL BEARING 6802LLB | 1 | €13.92 | 1-4 weeks to ship | |
| 027 | SPINDLE | 1 | Not available in store | |||
| 030 | MOTOR FLANGE | 1 | Not available in store | |||
| 031 | BOLT HB4X12 | 4 | Not available in store | |||
| 032 | ECCENTRIC SHAFT T45417 | 1 | Not available in store | |||
| 033 | SC00000050 | BALL BEARING 6002RU | 1 | €25.05 | 1-4 weeks to ship | |
| 034 | OIL SEAL UE15257 | 1 | Not available in store | |||
| 035 | HEX. SOCKET BUTTON BOLT HBB | 1 | Not available in store | |||
| 036 | SC00000489 | SEAL WASHER | 1 | €5.57 | 1-4 weeks to ship | |
| 037 | PIMP CASE | 1 | Not available in store | |||
| 038 | LINER B | 1 | Not available in store | |||
| 039 | SC00000487 | STOP RING H19 | 1 | €1.39 | 1-4 weeks to ship | |
| 040 | NEEDLE BEARING HOLDER A T45 | 1 | Not available in store | |||
| 041 | SC00000466 | NEEDLE BEARING #RNAF81510 | 1 | €33.40 | 1-4 weeks to ship | |
| 042 | SC00000467 | NEEDLE BEARING HOLDER B T45 | 1 | €5.57 | 1-4 weeks to ship | |
| 043 | BALL BEARING 625 | 1 | Not available in store | |||
| 044 | HEX.SOCKET SET SCREW M4X4 | 3 | Not available in store | |||
| 045 | STEEL BALL 3 | 3 | Not available in store | |||
| 046 | MAGNET | 1 | Not available in store | |||
| 048 | SC00000022 | PISTON RETURN SPRING | 3 | €2.78 | 1-4 weeks to ship | |
| 049 | SC00000464 | CHECK VALVE #T43445 | 3 | €33.40 | 1-4 weeks to ship | |
| 050 | SC00000468 | SPRING #43449N2 | 3 | €2.78 | 1-4 weeks to ship | |
| 051 | SC03500540 | METAL PACKING | 3 | €9.74 | 1-4 weeks to ship | |
| 052 | SC06505590 | O RING S-8 | 3 | €2.50 | 1-4 weeks to ship | |
| 053 | BOLT HS6X8 | 3 | Not available in store | |||
| 054 | STEEL BALL D3/16 | 3 | Not available in store | |||
| 055 | RETURN VALVE | 1 | Not available in store | |||
| 056 | SC06505300 | O RING S4 | 1 | €2.78 | 1-4 weeks to ship | |
| 057 | MAIN PUMP | 1 | Not available in store | |||
| 058 | SC00000067 | WASHER 5 | 17 | €1.39 | 1-4 weeks to ship | |
| 059 | SC06505010 | O RING P6 | 5 | €2.78 | 1-4 weeks to ship | |
| 060 | BACKUP RING P6 | 4 | Not available in store | |||
| 061 | O-RING GUIDE | 2 | Not available in store | |||
| 062 | FLANGE FOR CUTTER HEAD | 1 | Not available in store | |||
| 063 | BALANCE STAND | 1 | Not available in store | |||
| 064 | HEX. SOCKET HEAD BOLT 4X8 | 3 | Not available in store | |||
| 065 | LEVELER COVER | 1 | Not available in store | |||
| 066 | O-RING S31.5 | 1 | Not available in store | |||
| 067 | OIL LEVELER COVER | 1 | Not available in store | |||
| 068 | STOP RING H10 | 1 | Not available in store | |||
| 069 | FILTER | 1 | Not available in store | |||
| 070 | SC00000098 | HEX. SOCKET HEAD BOLT 5X15 | 17 | €1.39 | 1-4 weeks to ship | |
| 071 | BACKUP RING G45 | 1 | Not available in store | |||
| 072 | O-RING G45 | 1 | Not available in store | |||
| 073 | HEX. SOCKET HEAD BOLT 4X6 | 2 | Not available in store | |||
| 074 | SC00000068 | FLAT WASHER 4 | 2 | €1.11 | 1-4 weeks to ship | |
| 075 | SC00000481 | STOPPER PLATE #45423 | 1 | €58.44 | 1-4 weeks to ship | |
| 076 | SC00000471 | SPRING #T45378 | 1 | €5.57 | 1-4 weeks to ship | |
| 077 | SC00000023 | RELEASE VALVE SPRING | 1 | €5.57 | 1-4 weeks to ship | |
| 078 | RELEASE VALVE | 1 | Not available in store | |||
| 079 | SC00000485 | PACKING OSI50406 | 1 | €25.05 | 1-4 weeks to ship | |
| 080 | SPRING PIN 2.5X10 | 2 | Not available in store | |||
| 081 | KEY | 2 | Not available in store | |||
| 082 | CUTTER ROD | 1 | Not available in store | |||
| 083 | BOLT | 1 | Not available in store | |||
| 084 | CUTTER W3/8 | 1 | Not available in store | |||
| 085 | RETURN SPRING | 1 | Not available in store | |||
| 086 | SKY PACKING | 1 | Not available in store | |||
| 087 | BACKUP RING TBC-26X34X1 | 1 | Not available in store | |||
| 088 | BOLT 6.5X25 | 1 | Not available in store | |||
| 089 | HEX SOCKET TAPERED SCREW PL | 1 | Not available in store | |||
| 090 | HANDLE SET | 1 | Not available in store | |||
| 091 | CUTTER W3/8 | 1 | Not available in store | |||
| 092 | CUTTER HEAD | 1 | Not available in store | |||
