DS4010
DS4010

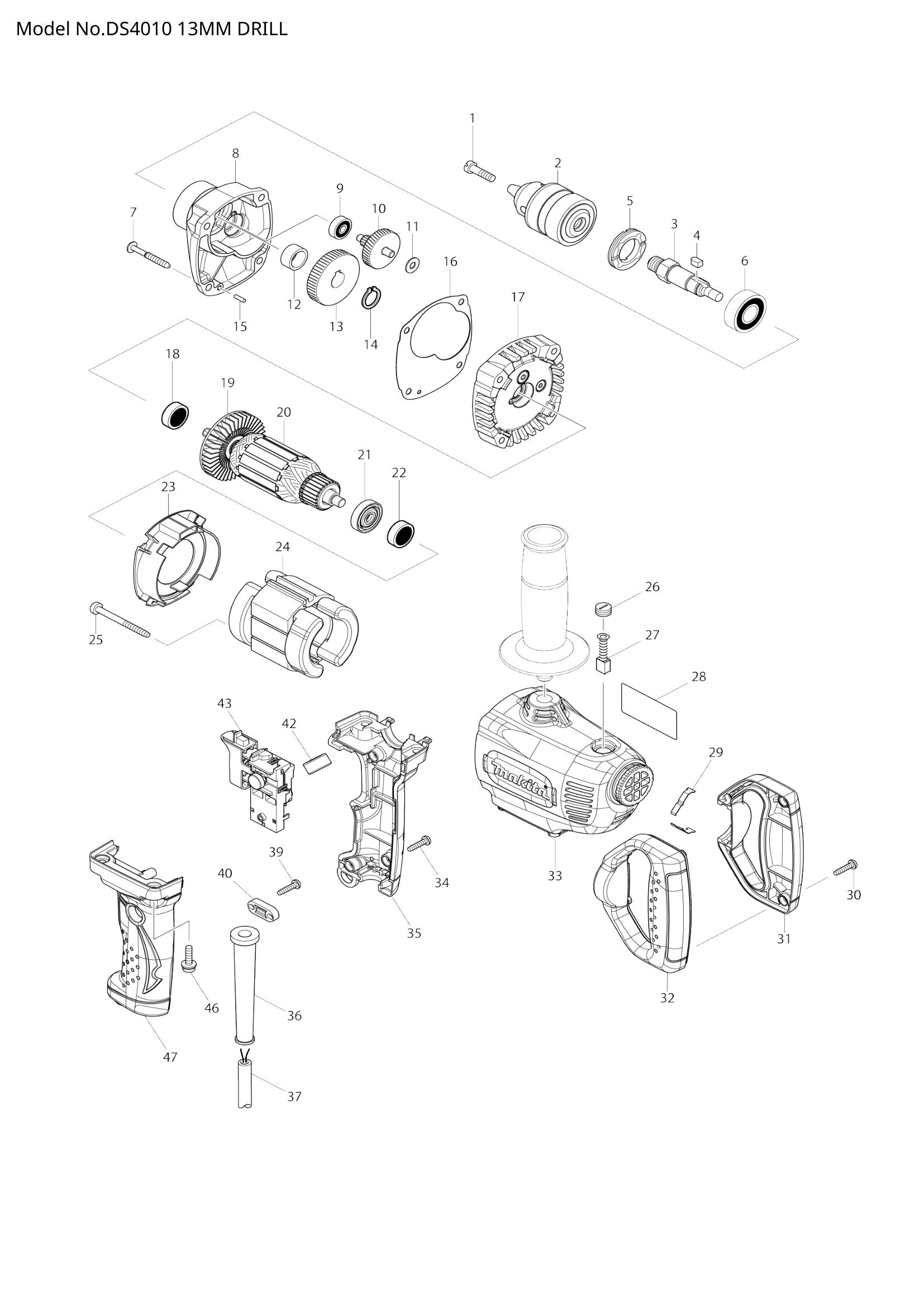

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 003 | 325494-1 | SPINDLE | 1 | €25.05 | 1-4 weeks to ship | |
| 004 | 254211-1 | KEY 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 005 | 285807-7 | BEARING RETAINER 22-36 | 1 | €2.78 | 1-4 weeks to ship | |
| 007 | 266211-9 | TAPPING SCREW 5X40 | 4 | €0.56 | 1-4 weeks to ship | |
| 008 | 140620-9 | GEAR HOUSING COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 009 | 211016-2 | BALL BEARING 626LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 011 | 261008-1 | FIBER WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 257018-4 | RING 15 | 1 | €1.67 | 1-4 weeks to ship | |
| 013 | 221261-1 | SPUR GEAR 47 | 1 | €16.70 | 1-4 weeks to ship | |
| 014 | 961054-1 | RETAINING RING S-14 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 256180-2 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 452066-0 | GASKET | 1 | €1.81 | 1-4 weeks to ship | |
| 018 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 019 | 241850-6 | FAN 60 | 1 | €4.45 | 1-4 weeks to ship | |
| 020 | ARMATURE ASS'Y 240V | 1 | Not available in store | |||
| 021 | INSULATION WASHER | 1 | Not available in store | |||
| 022 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 023 | 452063-6 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | FIELD ASSY 240V | 1 | Not available in store | |||
| 026 | 643550-8 | BRUSH HOLDER CAP 5-8 | 2 | €0.83 | 1-4 weeks to ship | |
| 028 | DS4010 NAME PLATE | 1 | Not available in store | |||
| 029 | 232260-8 | LEAF SPRING | 2 | €0.56 | 1-4 weeks to ship | |
| 031 | 188921-7 | HANDLE SET | 1 | €5.57 | 1-4 weeks to ship | |
| 032 | 188921-7 | HANDLE SET | 1 | €5.57 | 1-4 weeks to ship | |
| 035 | SWITCH HANDLE COVER SET | 1 | Not available in store | |||
| 036 | 682566-8 | CORD GUARD 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 037 | 665865-3 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €16.70 | 1-4 weeks to ship | |
| 040 | 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 650588-6 | SWITCH C3VA-2L-C | 1 | €16.70 | 1-4 weeks to ship | |
| 046 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 047 | SWITCH HANDLE COVER SET | 1 | Not available in store | |||
