5100BR
5100BR

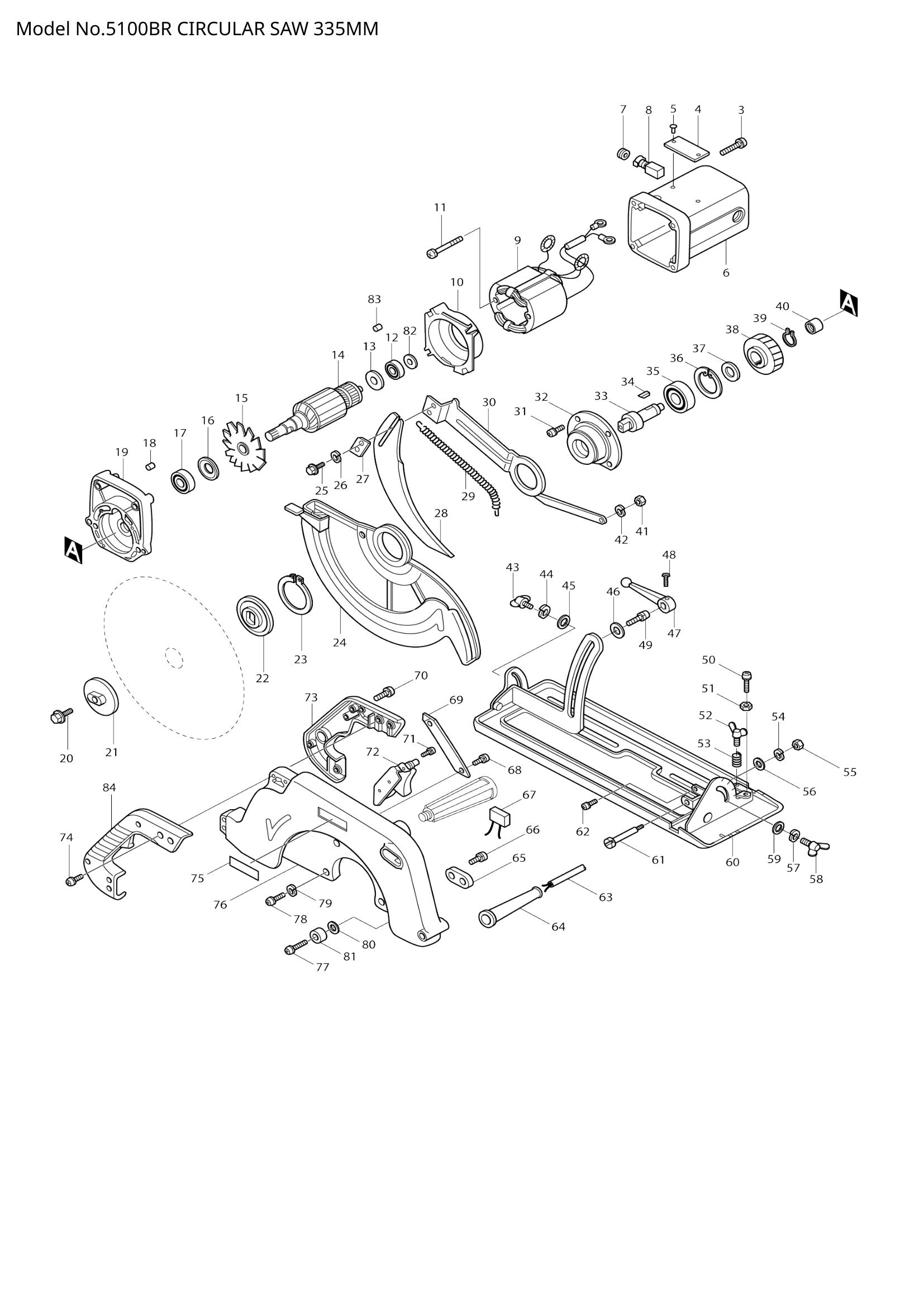

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 003 | 911263-2 | PAN HEAD SCREW M5X40 | 4 | €0.56 | 1-4 weeks to ship | |
| 911263-2 | PAN HEAD SCREW M5X40 | 4 | €0.56 | 1-4 weeks to ship | ||
| 004 | 815084-3 | NAME PLATE 5100BR | 1 | €2.92 | 1-4 weeks to ship | |
| 005 | 953106-2 | RIVET 0-5 | 2 | €0.56 | 1-4 weeks to ship | |
| 010 | 411448-5 | BAFFLE PLATE | 1 | €7.51 | 1-4 weeks to ship | |
| 012 | 211068-3 | BALL BEARING 6200LB | 1 | €8.07 | 1-4 weeks to ship | |
| 016 | 213202-1 | DUST SEAL 15 | 1 | €0.83 | 1-4 weeks to ship | |
| 017 | 211206-7 | BALL BEARING 6202LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 018 | 263005-3 | RUBBER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 157029-8 | GEAR HOUSING | 1 | €48.42 | 1-4 weeks to ship | |
| 020 | 251644-1 | HEX. FLANGE HEAD BOLT M8X20 | 1 | €1.11 | 1-4 weeks to ship | |
| 021 | 224053-7 | OUTER FLANGE 65 | 1 | €13.92 | 1-4 weeks to ship | |
| 023 | 961253-5 | RETAINING RING S-56 | 1 | €4.45 | 1-4 weeks to ship | |
| 025 | 251609-3 | HEX. FLANGE HEAD BOLT M6X17 | 2 | €0.56 | 1-4 weeks to ship | |
| 026 | 942151-2 | SPRING WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 942151-2 | SPRING WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | ||
| 027 | 341310-9 | PRESSURE PLATE | 1 | €2.92 | 1-4 weeks to ship | |
| 028 | RIVING KNIFE | 1 | Not available in store | |||
| 029 | 231736-2 | TENSION SPRING 4 | 1 | €4.45 | 1-4 weeks to ship | |
| 030 | 163099-7 | RIVING KNIFE HOLDER | 1 | €22.54 | 1-4 weeks to ship | |
| 031 | 912121-5 | COUNTERSUNK HEAD SCREW M4 | 4 | €0.83 | 1-4 weeks to ship | |
| 032 | 312962-3 | BEARING BOX | 1 | €25.60 | 1-4 weeks to ship | |
| 033 | 325545-0 | SPINDLE | 1 | €43.00 | 1-4 weeks to ship | |
| 034 | 254203-0 | KEY 4 | 1 | €0.83 | 1-4 weeks to ship | |
| 035 | 211306-3 | BALL BEARING 6204LLB | 1 | €13.92 | 1-4 weeks to ship | |
| 036 | 962203-3 | RETAINING RING R-47 | 1 | €0.83 | 1-4 weeks to ship | |
| 037 | 257058-2 | RING 20 | 1 | €7.37 | 1-4 weeks to ship | |
| 038 | HELICAL GEAR 69 | 1 | Not available in store | |||
| 039 | 961060-6 | RETAINING RING S-20 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 212101-4 | NEEDLE BEARING 1210 | 1 | €7.51 | 1-4 weeks to ship | |
| 041 | 931202-6 | HEX. NUT M5 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 942101-7 | SPRING WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 942101-7 | SPRING WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 043 | 924316-8 | WING BOLT M6X15 | 1 | €2.78 | 1-4 weeks to ship | |
| 924316-8 | WING BOLT M6X15 | 1 | €2.78 | 1-4 weeks to ship | ||
| 044 | 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 045 | 253010-8 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 133014-5 | LEVER 98 ASS'Y | 1 | €9.74 | 1-4 weeks to ship | |
| 048 | 911207-2 | PAN HEAD SCREW M5X10 | 1 | €0.83 | 1-4 weeks to ship | |
| 049 | 251612-4 | HEX. BOLT M8X20 | 1 | €4.45 | 1-4 weeks to ship | |
| 050 | 911257-7 | PAN HEAD SCREW M5X35 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 931202-6 | HEX. NUT M5 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 924326-5 | WING BOLT M6X20 | 1 | €2.78 | 1-4 weeks to ship | |
| 053 | 231005-1 | COMPRESSION SPRING 7 | 1 | €0.83 | 1-4 weeks to ship | |
| 057 | 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 058 | 924316-8 | WING BOLT M6X15 | 1 | €2.78 | 1-4 weeks to ship | |
| 924316-8 | WING BOLT M6X15 | 1 | €2.78 | 1-4 weeks to ship | ||
| 059 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 060 | BASE ASS'Y | 1 | Not available in store | |||
| 061 | 251428-7 | - FLAT HEAD SCREW M8 | 1 | €2.92 | 1-4 weeks to ship | |
| 062 | 251427-9 | - FLAT HEAD SCREW M5 | 1 | €2.92 | 1-4 weeks to ship | |
| 064 | 682505-8 | CORD GUARD 10-90 | 1 | €2.78 | 1-4 weeks to ship | |
| 068 | 911106-8 | PAN HEAD SCREW M4X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 911106-8 | PAN HEAD SCREW M4X8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 069 | 342517-0 | LEAD COVER | 1 | €4.45 | 1-4 weeks to ship | |
| 070 | 911158-9 | PAN HEAD SCREW M4X30 | 2 | €0.56 | 1-4 weeks to ship | |
| 071 | 911103-4 | PAN HEAD SCREW M4X6 | 1 | €0.83 | 1-4 weeks to ship | |
| 074 | 911223-4 | PAN HEAD SCREW M5X16 | 8 | €0.56 | 1-4 weeks to ship | |
| 911223-4 | PAN HEAD SCREW M5X16 | 8 | €0.56 | 1-4 weeks to ship | ||
| 075 | 819003-1 | MAKITA LABEL | 1 | €2.09 | 1-4 weeks to ship | |
| 819003-1 | MAKITA LABEL | 1 | €2.09 | 1-4 weeks to ship | ||
| 077 | 911452-9 | PAN HEAD SCREW M8X30 | 1 | €2.78 | 1-4 weeks to ship | |
| 078 | 251207-3 | + PAN HEAD SCREW M5X22 | 4 | €2.78 | 1-4 weeks to ship | |
| 079 | 942101-7 | SPRING WASHER 5 | 4 | €0.56 | 1-4 weeks to ship | |
| 942101-7 | SPRING WASHER 5 | 4 | €0.56 | 1-4 weeks to ship | ||
| 080 | 253766-3 | FLAT WASHER 8 | 1 | €2.92 | 1-4 weeks to ship | |
| 081 | 262027-0 | RUBBER RING 8 | 1 | €2.78 | 1-4 weeks to ship | |
| 082 | 253794-8 | FLAT WASHER 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 083 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 403 | 781203-2 | WRENCH 13 | 1 | €4.45 | 1-4 weeks to ship | |
| 404 | WRENCH 22 | 1 | Not available in store | |||
