DRT50
DRT50

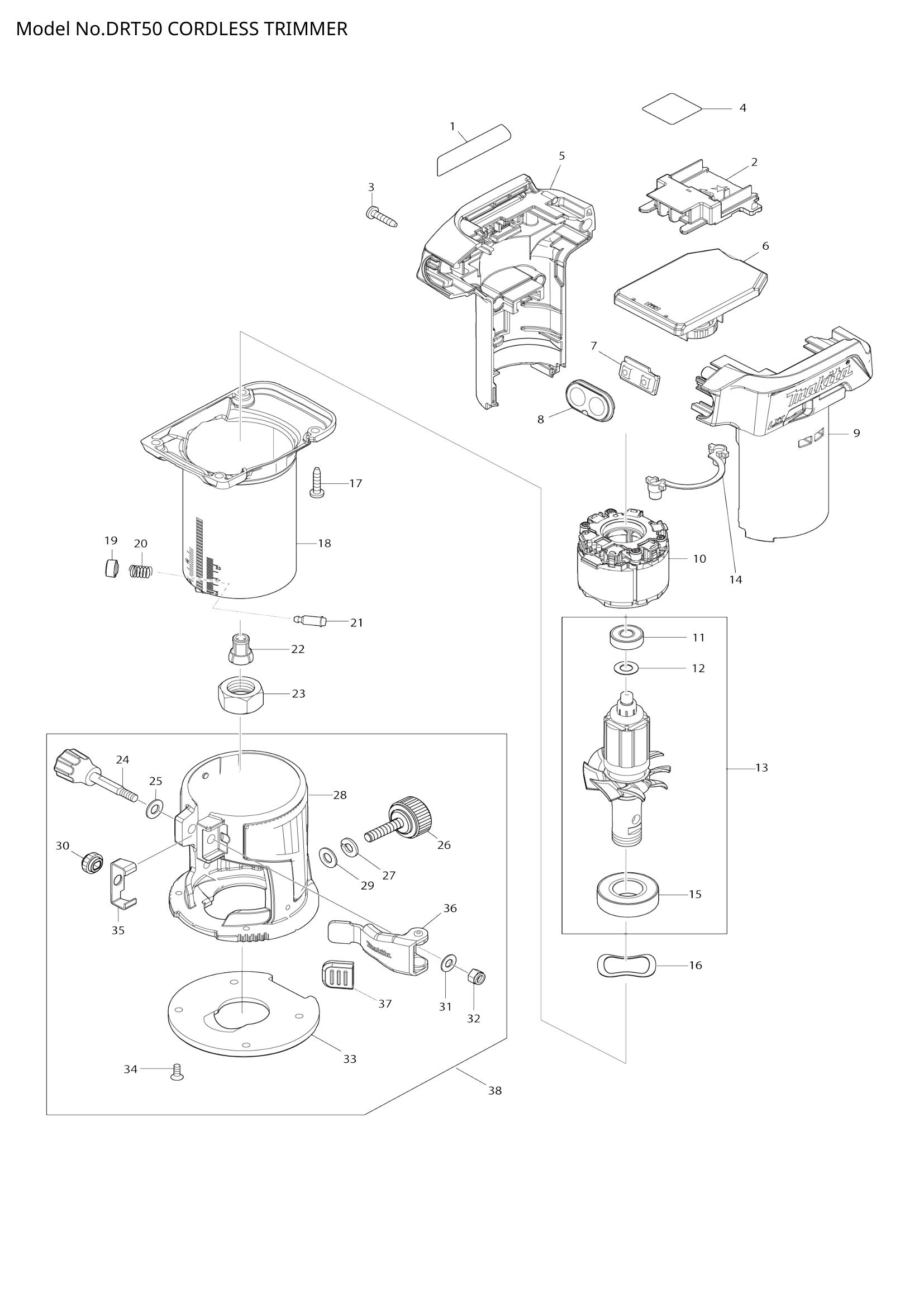

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | DRT50 NAME PLATE | 1 | Not available in store | |||
| 002 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 004 | DRT50 SERIAL NO. LABEL | 1 | Not available in store | |||
| 005 | 183G76-5 | HOUSING SET | 1 | €6.29 | 1-4 weeks to ship | |
| 007 | 632K92-3 | SWITCH UNIT | 1 | €7.54 | 1-4 weeks to ship | |
| 632K92-3 | SWITCH UNIT | 1 | €7.54 | 1-4 weeks to ship | ||
| 008 | 144662-5 | SWITCH PLATE COMPLETE | 1 | €1.36 | 1-4 weeks to ship | |
| 009 | 183G76-5 | HOUSING SET | 1 | €6.29 | 1-4 weeks to ship | |
| 012 | 253186-1 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 519449-8 | ROTOR ASSY | 1 | €36.54 | 1-4 weeks to ship | |
| 519449-8 | ROTOR ASSY | 1 | €36.54 | 1-4 weeks to ship | ||
| 014 | 620721-4 | LED CIRCUIT | 1 | €10.02 | 1-4 weeks to ship | |
| 620721-4 | LED CIRCUIT | 1 | €10.02 | 1-4 weeks to ship | ||
| 015 | 210301-0 | BALL BEARING 6003DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 016 | 253906-3 | WAVE WASHER 26 | 1 | €2.09 | 1-4 weeks to ship | |
| 019 | 452468-0 | PUSH BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 233127-3 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 256437-1 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | COLLET CONE 6MM | 1 | Not available in store | |||
| 023 | 763615-1 | COLLET NUT | 1 | €4.17 | 1-4 weeks to ship | |
| 024 | 265792-0 | THUMB SCREW M5X35 | 1 | €1.39 | 1-4 weeks to ship | |
| 025 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 026 | 265763-7 | THUMB SCREW M6X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 142403-3 | TRIMMER BASE COMPLETE | 1 | €24.63 | 1-4 weeks to ship | |
| 029 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 030 | 227262-7 | SPUR GEAR 16 | 1 | €0.83 | 1-4 weeks to ship | |
| 031 | 941101-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 454842-8 | BASE PROTECTOR | 1 | €3.06 | 1-4 weeks to ship | |
| 034 | 912112-6 | COUNTERSUNK HEAD SCREW M4 | 4 | €0.56 | 1-4 weeks to ship | |
| 035 | 346392-6 | CAM PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 163524-8 | LOCK LEVER COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 037 | 424396-9 | RUBBER CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | CONTROLLER B S | 1 | Not available in store | |||
| 040 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
