DPO500
DPO500

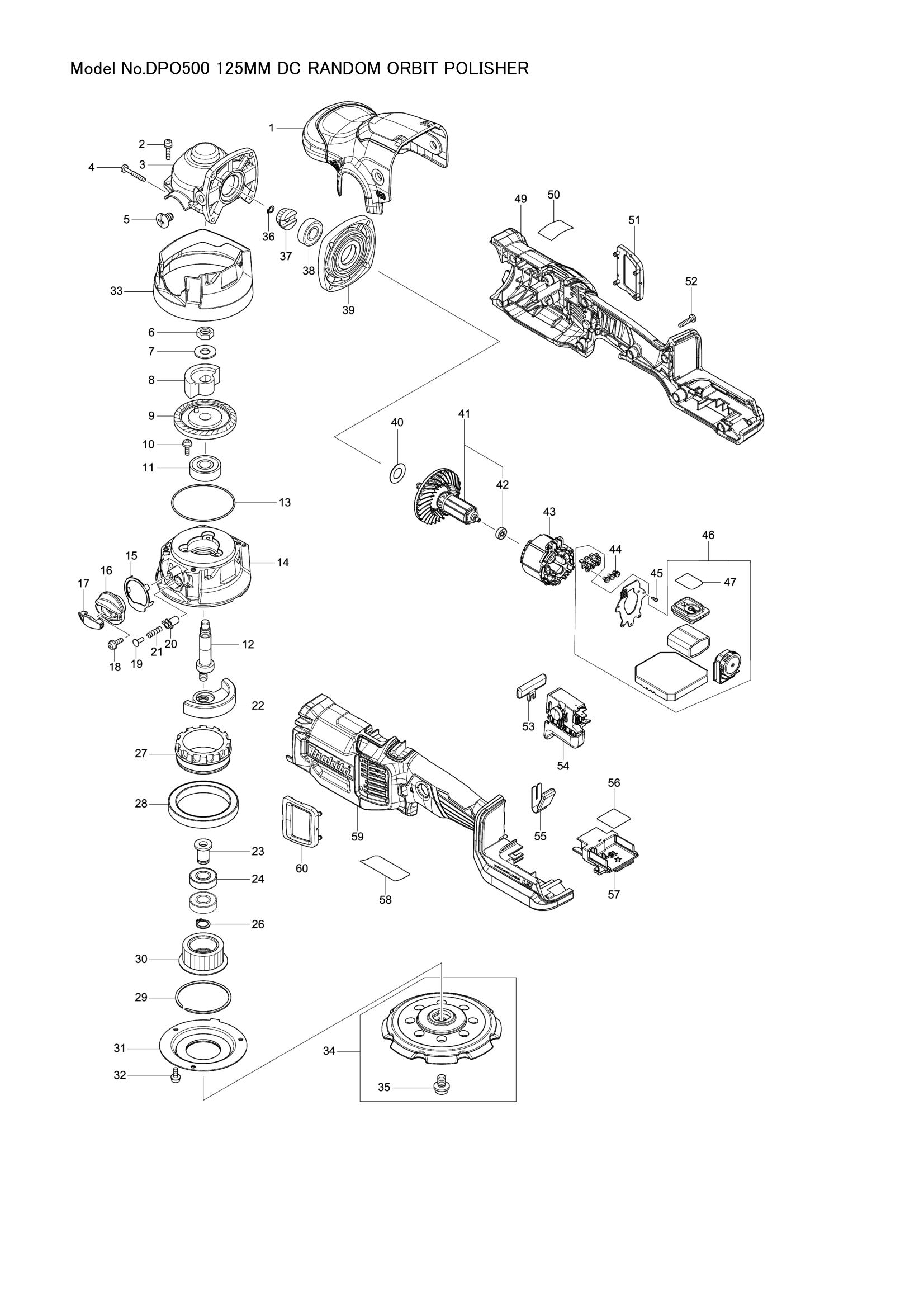

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 456805-0 | HEAD COVER | 1 | €15.03 | 1-4 weeks to ship | |
| 002 | 911126-2 | PAN HEAD SCREW M4X16 | 4 | €0.83 | 1-4 weeks to ship | |
| 911126-2 | PAN HEAD SCREW M4X16 | 4 | €0.83 | 1-4 weeks to ship | ||
| 003 | 143783-0 | GEAR HOUSING COMPLETE | 1 | €4.59 | 1-4 weeks to ship | |
| 004 | 266257-5 | TAPPING SCREW 4X28 | 4 | €0.56 | 1-4 weeks to ship | |
| 005 | 265083-9 | + FLAT HEAD SCREW M8X11 | 2 | €1.11 | 1-4 weeks to ship | |
| 006 | 931503-2 | HEX. NUT M10 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 253024-7 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 326735-8 | UPPER BALANCE WEIGHT | 1 | €14.33 | 1-4 weeks to ship | |
| 010 | 911119-9 | PAN HEAD SCREW M4X12 | 3 | €0.56 | 1-4 weeks to ship | |
| 011 | 211145-1 | BALL BEARING 6201ZZ | 1 | €4.45 | 1-4 weeks to ship | |
| 012 | 324069-3 | SPINDLE | 1 | €22.26 | 1-4 weeks to ship | |
| 013 | 213724-1 | O RING 62 | 1 | €1.39 | 1-4 weeks to ship | |
| 014 | 143784-8 | SKIRT COMPLETE | 1 | €20.73 | 1-4 weeks to ship | |
| 016 | 143785-6 | KNOB COMPLETE | 1 | €3.06 | 1-4 weeks to ship | |
| 017 | 456809-2 | CAP | 1 | €0.97 | 1-4 weeks to ship | |
| 018 | 911119-9 | PAN HEAD SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 417382-7 | SPRING HOLDER | 1 | €1.39 | 1-4 weeks to ship | |
| 020 | 345209-0 | HOLDER | 1 | €13.92 | 1-4 weeks to ship | |
| 021 | 231230-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 326736-6 | LOWER BALANCE WEIGHT | 1 | €17.39 | 1-4 weeks to ship | |
| 023 | 324070-8 | SLEEVE | 1 | €11.13 | 1-4 weeks to ship | |
| 024 | 211131-2 | BALL BEARING 6001DDW | 2 | €8.35 | 1-4 weeks to ship | |
| 026 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 221453-2 | INTERNAL SPUR GEAR 29 | 1 | €3.20 | 1-4 weeks to ship | |
| 028 | 210146-6 | BALL BEARING 6811LLB | 1 | €8.21 | 1-4 weeks to ship | |
| 029 | 257933-2 | STOP RING (EXT) WR-55 | 1 | €0.83 | 1-4 weeks to ship | |
| 030 | 143790-3 | SPUR GEAR 26 COMPLETE | 1 | €14.47 | 1-4 weeks to ship | |
| 032 | 911119-9 | PAN HEAD SCREW M4X12 | 3 | €0.56 | 1-4 weeks to ship | |
| 033 | 456806-8 | BUMPER | 1 | €5.98 | 1-4 weeks to ship | |
| 034 | PAD 125 SET(EU) | 1 | Not available in store | |||
| 036 | 961002-0 | RETAINING RING S-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 221450-8 | SPIRAL BEVEL GEAR 10 | 1 | €6.40 | 1-4 weeks to ship | |
| 038 | 211142-7 | BALL BEARING 6001LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 039 | 317359-1 | GEAR HOUSING COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 040 | 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | ROTOR ASSY | 1 | Not available in store | |||
| 042 | 210036-3 | BALL BEARING 604ZZ | 1 | €2.78 | 1-4 weeks to ship | |
| 043 | STATOR | 1 | Not available in store | |||
| 044 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 045 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 046 | CONTROLLER COMPLETE | 1 | Not available in store | |||
| 047 | SWITCH LABEL | 1 | Not available in store | |||
| 049 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 050 | INDICATION LABEL | 1 | Not available in store | |||
| 051 | DUST COVER | 1 | Not available in store | |||
| 052 | 265995-6 | TAPPING SCREW 4X18 | 10 | €0.56 | 1-4 weeks to ship | |
| 053 | LOCK OFF BUTTON | 1 | Not available in store | |||
| 054 | SWITCH C3JW-4B-2L64 | 1 | Not available in store | |||
| 055 | LEAF SPRING | 1 | Not available in store | |||
| 056 | DPO500 SERIAL NO. LABEL | 1 | Not available in store | |||
| 057 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 058 | DPO500 NAME PLATE | 1 | Not available in store | |||
| 059 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 060 | DUST COVER | 1 | Not available in store | |||
