DPJ180
DPJ180

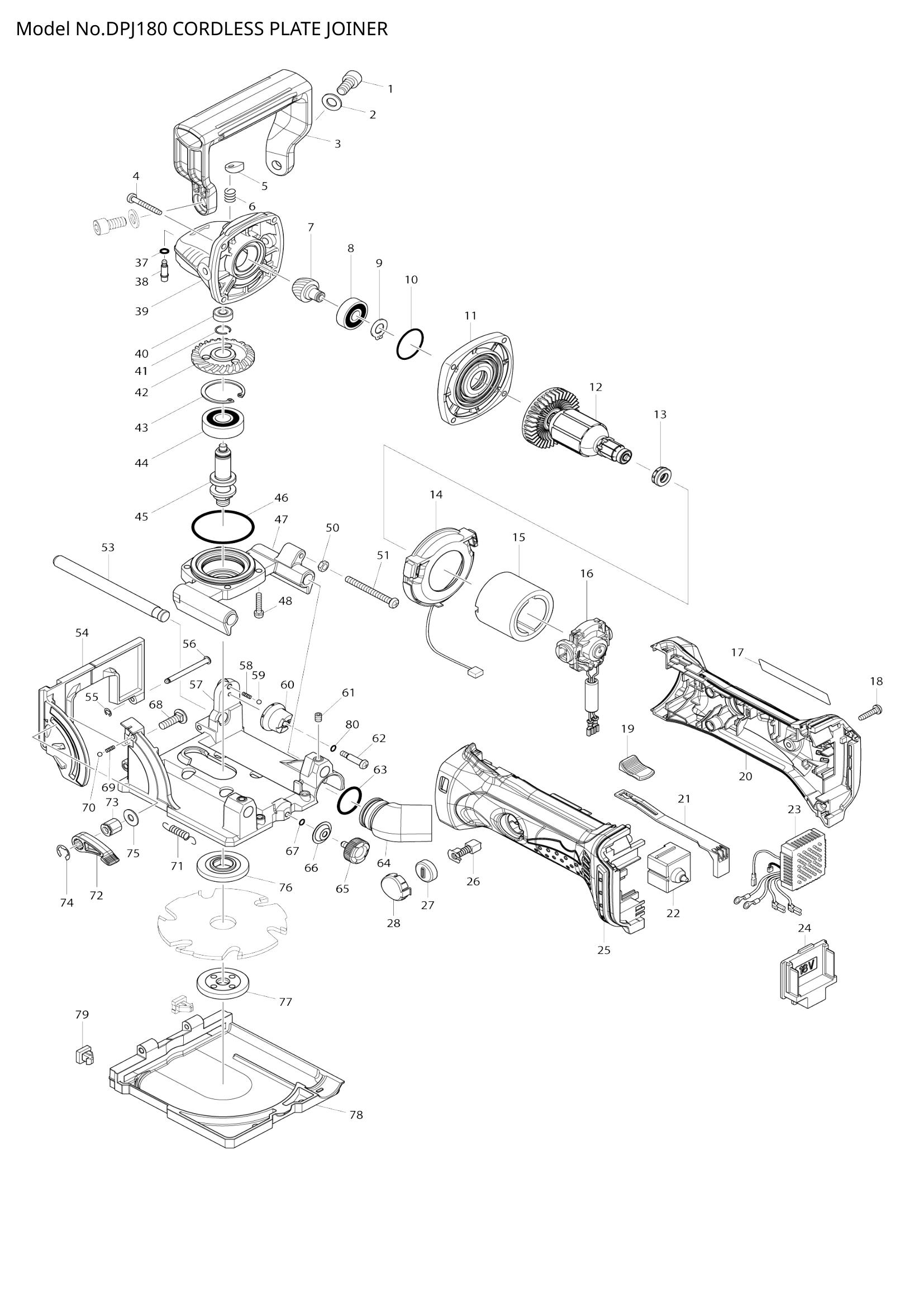

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 922422-3 | HEX. SOCKET HEAD BOLT M8X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 002 | 941202-8 | FLAT WASHER 8 | 2 | €0.56 | 1-4 weeks to ship | |
| 003 | 453219-4 | GRIP | 1 | €3.62 | 1-4 weeks to ship | |
| 004 | 266361-0 | TAPPING SCREW 4X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 005 | 417771-6 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 233072-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 227597-6 | SPIRAL BEVEL GEAR 11 | 1 | €9.60 | 1-4 weeks to ship | |
| 008 | 210042-8 | BALL BEARING 629LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 009 | 961005-4 | RETAINING RING S-9 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 317821-6 | GEAR HOUSING COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 012 | 619295-0 | ARMATURE | 1 | €35.62 | 1-4 weeks to ship | |
| 013 | 421977-0 | RUBBER RING 13 | 1 | €0.83 | 1-4 weeks to ship | |
| 014 | 631714-6 | LED CIRCUIT | 1 | €11.13 | 1-4 weeks to ship | |
| 015 | 638627-2 | YOKE UNIT | 1 | €19.48 | 1-4 weeks to ship | |
| 016 | 638979-1 | ENDBELL COMPLETE | 1 | €6.68 | 1-4 weeks to ship | |
| 017 | DPJ180 NAME PLATE | 1 | Not available in store | |||
| 018 | 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 019 | 419566-3 | SWITCH KNOB | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 187839-9 | HOUSING SET | 1 | €18.09 | 1-4 weeks to ship | |
| 021 | 419519-2 | SWITCH LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 620243-4 | CONTROLLER | 1 | €44.53 | 1-4 weeks to ship | |
| 620243-4 | CONTROLLER | 1 | €44.53 | 1-4 weeks to ship | ||
| 024 | 644808-8 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 025 | 187839-9 | HOUSING SET | 1 | €18.09 | 1-4 weeks to ship | |
| 026 | 191971-3 | CARBON BRUSH CB-430 | 1 | €2.78 | 1-4 weeks to ship | |
| 027 | 643954-4 | BRUSH HOLDER CAP | 2 | €0.83 | 1-4 weeks to ship | |
| 028 | 419518-4 | HOLDER CAP COVER | 2 | €0.56 | 1-4 weeks to ship | |
| 037 | 213960-9 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 256496-5 | SHOULDER PIN 4 | 1 | €2.78 | 1-4 weeks to ship | |
| 039 | 141400-6 | GEAR HOUGING COMPLETE | 1 | €6.40 | 1-4 weeks to ship | |
| 040 | 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 041 | 233950-6 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 227598-4 | SPIRAL BEVEL GEAR 36 | 1 | €4.45 | 1-4 weeks to ship | |
| 043 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 045 | 326120-5 | SPINDLE | 1 | €5.29 | 1-4 weeks to ship | |
| 046 | 213622-9 | O RING 45 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 318812-0 | BEARING BOX | 1 | €23.10 | 1-4 weeks to ship | |
| 048 | 911136-9 | PAN HEAD SCREW M4X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 050 | 931203-4 | HEX. NUT M5 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 266741-0 | PAN HEAD SCREW M5X50 | 1 | €0.28 | 1-4 weeks to ship | |
| 053 | 326145-9 | ROD 10 | 2 | €2.09 | 1-4 weeks to ship | |
| 054 | 141247-8 | FENCE COMPLETE | 1 | €15.86 | 1-4 weeks to ship | |
| 055 | 961017-7 | STOP RING E-3 | 2 | €0.56 | 1-4 weeks to ship | |
| 056 | 256689-4 | PIN 4 | 2 | €2.78 | 1-4 weeks to ship | |
| 057 | 318813-8 | BASE | 1 | €41.61 | 1-4 weeks to ship | |
| 058 | 231282-5 | COMPRESSION SPRING 2.4 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 318814-6 | STOPPER | 1 | €9.04 | 1-4 weeks to ship | |
| 061 | 266264-8 | H.S.SET SCREW(FLAT POINT)M5X | 2 | €0.56 | 1-4 weeks to ship | |
| 062 | 266738-9 | +PAN HEAD SCREW M4 | 1 | €0.42 | 1-4 weeks to ship | |
| 063 | 213008-7 | O RING 22.4 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 415252-4 | DUST NOZZLE | 1 | €1.39 | 1-4 weeks to ship | |
| 065 | 265785-7 | THUMB SCREW M5X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 232131-9 | LEAF SPRING | 1 | €2.78 | 1-4 weeks to ship | |
| 067 | 213023-1 | O RING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 266737-1 | FLAT HEAD SQ. NECK BOLT M6X2 | 1 | €0.28 | 1-4 weeks to ship | |
| 069 | 231282-5 | COMPRESSION SPRING 2.4 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | 231795-6 | TENSION SPRING 8 | 2 | €2.78 | 1-4 weeks to ship | |
| 072 | 272263-0 | LEVER 40 | 1 | €2.37 | 1-4 weeks to ship | |
| 073 | 252159-1 | HEX. NUT M6 | 1 | €2.78 | 1-4 weeks to ship | |
| 074 | 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 075 | 253804-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 076 | 224280-6 | INNER FLANGE 40 | 1 | €4.17 | 1-4 weeks to ship | |
| 077 | 224505-8 | LOCK NUT 10-40 | 1 | €4.17 | 1-4 weeks to ship | |
| 078 | 318845-5 | BLADE COVER | 1 | €31.17 | 1-4 weeks to ship | |
| 079 | 424479-5 | RUBBER SPIKE | 2 | €0.56 | 1-4 weeks to ship | |
| 080 | 213023-1 | O RING 4 | 1 | €0.56 | 1-4 weeks to ship | |
