5016B
5016B

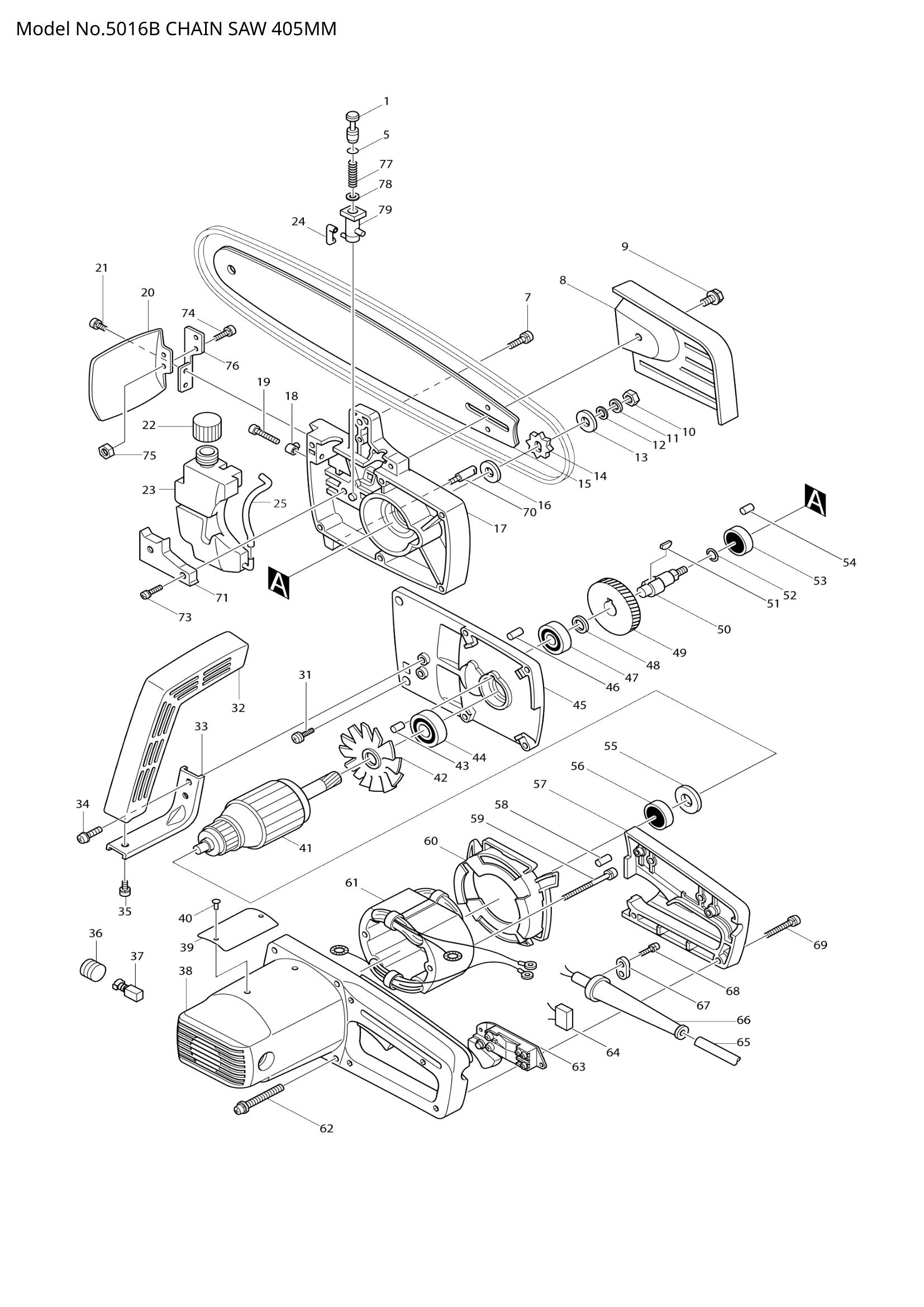

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 321261-2 | PLUNGER | 1 | €4.17 | 1-4 weeks to ship | |
| 005 | 213003-7 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 911238-1 | PAN HEAD SCREW M5X22 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 345160-4 | CHAIN COVER | 1 | €15.31 | 1-4 weeks to ship | |
| 009 | HEX. FLANGE HEAD BOLT M8X17 | 1 | Not available in store | |||
| 010 | HEX. NUT M8-13 | 1 | Not available in store | |||
| 011 | 942201-3 | SPRING WASHER 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 012 | 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 013 | 253813-0 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 221514-8 | SPROCKET 6 | 1 | €8.35 | 1-4 weeks to ship | |
| 015 | 341650-5 | GUIDE BAR 16 | 1 | €118.56 | 1-4 weeks to ship | |
| 016 | 253813-0 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 325549-2 | ADJUST PIN | 1 | €4.17 | 1-4 weeks to ship | |
| 020 | 411747-5 | PROTECTOR | 1 | €4.45 | 1-4 weeks to ship | |
| 021 | 911211-1 | PAN HEAD SCREW M5X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 024 | 412025-6 | PIPE 4 | 1 | €2.09 | 1-4 weeks to ship | |
| 032 | 273603-5 | GRIP | 1 | €9.88 | 1-4 weeks to ship | |
| 033 | 322046-9 | GRIP HOLDER | 1 | €4.87 | 1-4 weeks to ship | |
| 034 | 911216-1 | PAN HEAD SCREW M5X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 035 | 911211-1 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 241093-0 | FAN 97 | 1 | €5.98 | 1-4 weeks to ship | |
| 043 | 263005-3 | RUBBER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 211106-1 | BALL BEARING 6201LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 046 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 211101-1 | BALL BEARING 6001LLB | 1 | €11.13 | 1-4 weeks to ship | |
| 048 | 253052-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 221636-4 | HELICAL GEAR 53 | 1 | €25.60 | 1-4 weeks to ship | |
| 050 | 325550-7 | SPINDLE | 1 | €33.26 | 1-4 weeks to ship | |
| 051 | 254032-1 | WOODRUFF KEY 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 052 | 253147-1 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 211206-7 | BALL BEARING 6202LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 054 | 263005-3 | RUBBER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 211068-3 | BALL BEARING 6200LB | 1 | €8.07 | 1-4 weeks to ship | |
| 058 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 411462-1 | BAFFLE PLATE | 1 | €4.45 | 1-4 weeks to ship | |
| 062 | 911268-2 | PAN HEAD SCREW M5X45 | 4 | €0.56 | 1-4 weeks to ship | |
| 911268-2 | PAN HEAD SCREW M5X45 | 4 | €0.56 | 1-4 weeks to ship | ||
| 069 | 911153-9 | PAN HEAD SCREW M4X28 | 4 | €0.56 | 1-4 weeks to ship | |
| 070 | 321396-9 | CHAIN CATCHER | 1 | €5.98 | 1-4 weeks to ship | |
| 074 | 911221-8 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 075 | 931202-6 | HEX. NUT M5 | 2 | €0.56 | 1-4 weeks to ship | |
| 076 | 341772-1 | PROTECTOR HOLDER | 1 | €4.45 | 1-4 weeks to ship | |
| 077 | 231294-8 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | 253811-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 402 | 242012-9 | OIL SUPPLY NOZZLE | 1 | €2.09 | 1-4 weeks to ship | |
| 403 | 744003-1 | FILE 4 | 1 | €5.57 | 1-4 weeks to ship | |
| 404 | SOCKET WRENCH 13 | 1 | Not available in store | |||
| 405 | 783001-0 | (-) SCREWDRIVER 6 | 1 | €4.45 | 1-4 weeks to ship | |
| 902 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
