5014NB
5014NB

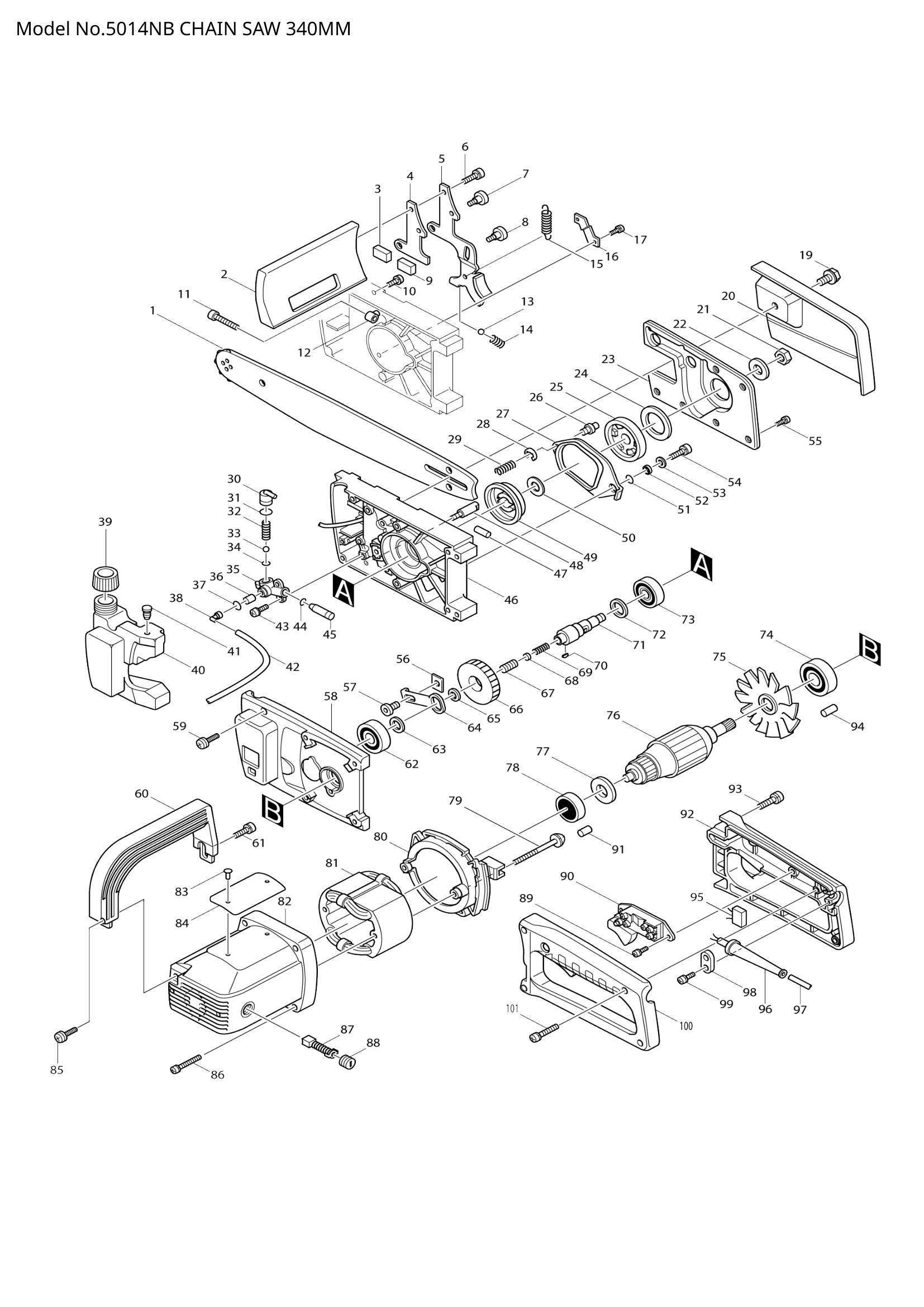

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | GUIDE BAR | 1 | Not available in store | |||
| 002 | 155778-1 | PROTECTOR COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 003 | 423120-7 | PACKING | 1 | €0.83 | 1-4 weeks to ship | |
| 004 | 342905-1 | SUPPORTER PLATE | 1 | €4.45 | 1-4 weeks to ship | |
| 005 | BRAKE LEVER | 1 | Not available in store | |||
| 006 | 911221-8 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 007 | HEX. SOCKET HEAD BOLT M6 | 1 | Not available in store | |||
| 008 | HEX. SOCKET HEAD BOLT M6 | 1 | Not available in store | |||
| 009 | 423120-7 | PACKING | 1 | €0.83 | 1-4 weeks to ship | |
| 012 | 325549-2 | ADJUST PIN | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | 216011-7 | STEEL BALL 5.6 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 342870-4 | COVER PLATE | 1 | €2.09 | 1-4 weeks to ship | |
| 017 | 911111-5 | PAN HEAD SCREW M4X10 WITH | 2 | €0.56 | 1-4 weeks to ship | |
| 019 | HEX. FLANGE HEAD BOLT M8X17 | 1 | Not available in store | |||
| 020 | 342871-2 | CHAIN COVER | 1 | €17.53 | 1-4 weeks to ship | |
| 021 | HEX. NUT M8-13 | 1 | Not available in store | |||
| 022 | 267009-7 | FLAT WASHER 8 | 1 | €4.45 | 1-4 weeks to ship | |
| 024 | DUST SEAL 30 | 1 | Not available in store | |||
| 025 | 152274-0 | SPROCKET COMPLETE | 1 | €61.23 | 1-4 weeks to ship | |
| 026 | 256421-6 | PIN 6 | 1 | €2.78 | 1-4 weeks to ship | |
| 027 | 342869-9 | CLUTCH PRESSURE | 1 | €13.92 | 1-4 weeks to ship | |
| 028 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 231372-4 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 410525-0 | NOZZLE B | 1 | €1.39 | 1-4 weeks to ship | |
| 031 | 213007-9 | O RING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 213022-3 | O RING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 213054-0 | O RING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 410524-2 | NOZZLE A | 1 | €4.45 | 1-4 weeks to ship | |
| 039 | 242042-0 | CAP | 1 | €2.78 | 1-4 weeks to ship | |
| 041 | 421298-0 | CHECK VALVE | 1 | €4.17 | 1-4 weeks to ship | |
| 043 | 911118-1 | PAN HEAD SCREW M4X12 | 3 | €0.56 | 1-4 weeks to ship | |
| 044 | 213022-3 | O RING 3 | 2 | €0.56 | 1-4 weeks to ship | |
| 046 | 157517-5 | GEAR HOUSING | 1 | €64.01 | 1-4 weeks to ship | |
| 047 | 256152-7 | PIN 6 | 1 | €4.45 | 1-4 weeks to ship | |
| 048 | 321396-9 | CHAIN CATCHER | 1 | €5.98 | 1-4 weeks to ship | |
| 049 | CLUTCH CAM | 1 | Not available in store | |||
| 050 | 253878-2 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 257113-0 | RING 5 | 1 | €2.78 | 1-4 weeks to ship | |
| 052 | 253308-3 | THIN WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 253184-5 | FLAT WASHER 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 054 | 911221-8 | PAN HEAD SCREW M5X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 911111-5 | PAN HEAD SCREW M4X10 WITH | 6 | €0.56 | 1-4 weeks to ship | |
| 056 | SLIDER PLATE | 1 | Not available in store | |||
| 057 | 265863-3 | HEX. SOCKET HEAD BOLT M6 | 1 | €4.45 | 1-4 weeks to ship | |
| 058 | GEAR HOUSING COVER | 1 | Not available in store | |||
| 059 | 911231-5 | PAN HEAD SCREW M5X20 | 2 | €0.83 | 1-4 weeks to ship | |
| 061 | 911221-8 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 062 | 211101-1 | BALL BEARING 6001LLB | 1 | €11.13 | 1-4 weeks to ship | |
| 063 | 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | SLIDER | 1 | Not available in store | |||
| 065 | 253771-0 | FLAT WASHER 16 | 1 | €0.70 | 1-4 weeks to ship | |
| 066 | 221741-7 | HELICAL GEAR 53 | 1 | €27.00 | 1-4 weeks to ship | |
| 067 | 913426-6 | SET SCREW M8X16 | 1 | €2.78 | 1-4 weeks to ship | |
| 068 | 342876-2 | PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 069 | 231271-0 | COMPRESSION SPRING 4 | 1 | €2.09 | 1-4 weeks to ship | |
| 070 | 254032-1 | WOODRUFF KEY 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 071 | 321860-0 | SPINDLE | 1 | €37.29 | 1-4 weeks to ship | |
| 072 | 267011-0 | FLAT WASHER 17 | 1 | €2.09 | 1-4 weeks to ship | |
| 074 | 211106-1 | BALL BEARING 6201LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 075 | 241093-0 | FAN 97 | 1 | €5.98 | 1-4 weeks to ship | |
| 078 | 211068-3 | BALL BEARING 6200LB | 1 | €8.07 | 1-4 weeks to ship | |
| 080 | BAFFLE PLATE | 1 | Not available in store | |||
| 082 | 157516-7 | MOTOR HOUSING | 1 | €59.42 | 1-4 weeks to ship | |
| 083 | 953106-2 | RIVET 0-5 | 2 | €0.56 | 1-4 weeks to ship | |
| 084 | 855234-8 | NAME PLATE 5014NB | 1 | €4.45 | 1-4 weeks to ship | |
| 085 | 911231-5 | PAN HEAD SCREW M5X20 | 1 | €0.83 | 1-4 weeks to ship | |
| 086 | 911273-9 | PAN HEAD SCREW M5X50 | 4 | €0.56 | 1-4 weeks to ship | |
| 911273-9 | PAN HEAD SCREW M5X50 | 4 | €0.56 | 1-4 weeks to ship | ||
| 089 | 911101-8 | PAN HEAD SCREW M4X6 | 2 | €0.56 | 1-4 weeks to ship | |
| 091 | 263013-4 | RUBBER PIN 4 | 1 | €2.09 | 1-4 weeks to ship | |
| 092 | 181787-4 | HANDLE SET | 1 | €37.29 | 1-4 weeks to ship | |
| 093 | 911228-4 | PAN HEAD SCREW M5X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 094 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 096 | 682505-8 | CORD GUARD 10-90 | 1 | €2.78 | 1-4 weeks to ship | |
| 100 | 181787-4 | HANDLE SET | 1 | €37.29 | 1-4 weeks to ship | |
| 101 | 911153-9 | PAN HEAD SCREW M4X28 | 2 | €0.56 | 1-4 weeks to ship | |
| 102 | 410630-3 | SAFETY COVER | 1 | €4.45 | 1-4 weeks to ship | |
| 103 | 911238-1 | PAN HEAD SCREW M5X22 | 1 | €0.56 | 1-4 weeks to ship | |
| 402 | 242012-9 | OIL SUPPLY NOZZLE | 1 | €2.09 | 1-4 weeks to ship | |
| 403 | 744003-1 | FILE 4 | 1 | €5.57 | 1-4 weeks to ship | |
| 404 | SOCKET WRENCH 13 | 1 | Not available in store | |||
| 405 | 783001-0 | (-) SCREWDRIVER 6 | 1 | €4.45 | 1-4 weeks to ship | |
| 901 | HOOK COMPLETE | 1 | Not available in store | |||
